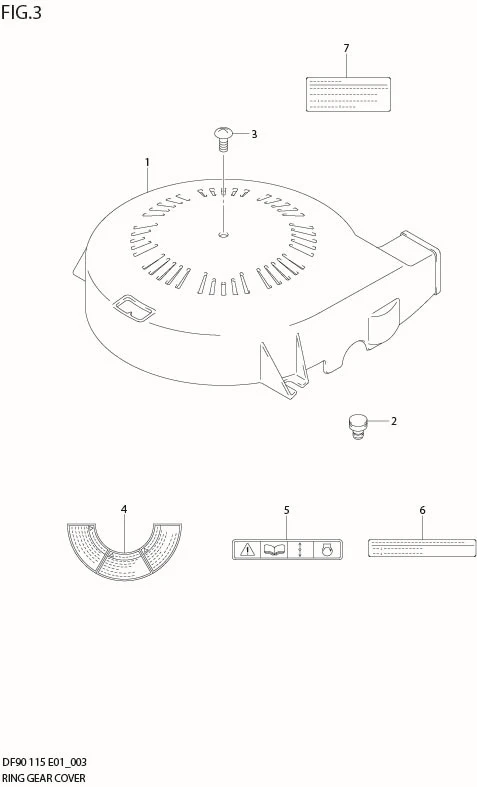

FIG 3 RING GEAR COVER

FIG 3 RING GEAR COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11510-90J00-000	COVER, RING GEAR	1	Rp442.000
2	11512-99E01-000 SUB: 11512-99E00-000	CUSHION, RING GEAR COVER	2	Rp37.500
3	09125-06111-000	SCREW (6X18)	1	Rp20.000
4-1	61472-93E33-000 SUB: 61472-93E32-000	LABEL, MAG COVER	1	Rp98.000
4-2	61472-93E40-000	LABEL, MAG COVER	1	Rp48.500	E1
5	69711-93E11-000 SUB: 69711-93E10-000	LABEL, CAUTION	1	Rp39.000
6	61493-90J00-000	LABEL, CLEARANCE	1	Rp63.500	MODEL:09%
7	61494-90J00-000	LABEL, OIL	1	Rp33.000	MODEL:09%

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
