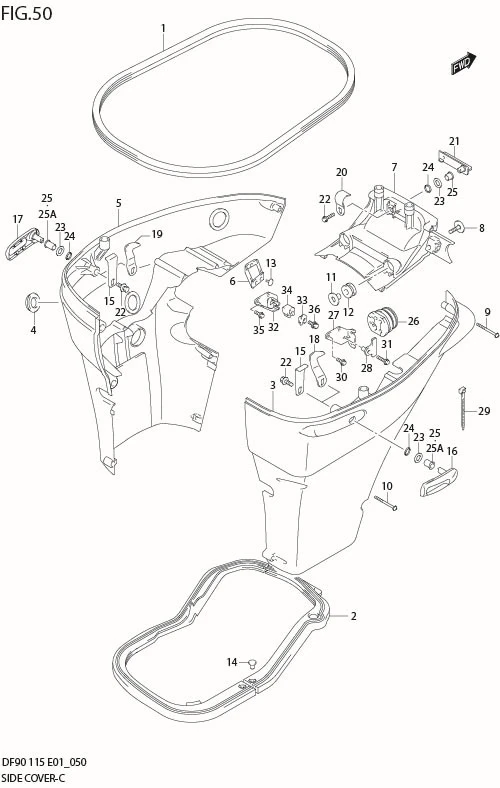

FIG 50 SIDE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61112-90J00-000	RUBBER, SIDE COVER	1	Rp711.500
2-1	DISCONTINUE SUB: 61134-90J01-000	SEAL, SIDE COVER	1	-
2-2	61134-90J11-000 SUB: 61134-90J10-000	SEAL, SIDE COVER	1	Rp666.000	MODEL:04%
3	61810-90J10-0EP SUB: 61810-90J01-0EP	COVER, SIDE STBD (BLACK)	1	Rp6.201.500
4	61817-89J01-000 SUB: 61817-89J00-000	PLUG, SIDE COVER	1	Rp42.500
5	61820-90J11-0EP SUB: 61820-90J01-0EP	COVER, SIDE PORT (BLACK)	1	Rp6.201.500
6	61827-90J00-000	HOLDER, SIDE COVER	1	Rp194.000
7-1	DISCONTINUE SUB: 61831-90J01-0EP	PANEL, FRONT (BLACK)	1	-	!61831-90J02-0EP
7-2	61831-90J02-0EP	PANEL, FRONT (BLACK)	1	-	DF90:421060%
7-3	61831-90J12-0EP SUB: 61831-90J11-0EP	PANEL, FRONT (BLACK)	1	Rp1.090.000	MODEL:07%
8	09116-08174-000 SUB: 09118-08127-000	BOLT (8X40)	2	Rp42.000
9	09139-06249-000 SUB: 09136-06148-000	SCREW (6X35)	7	Rp20.000
10	09136-06149-000	SCREW (6X55)	2	Rp27.000
11	DISCONTINUE SUB: 09169-08039-000	WASHER	2	-
12	09320-11023-000 SUB: 09320-11013-000	CUSHION	2	Rp26.000
13	09321-08022-000	CUSHION	2	Rp14.500
14	09409-05302-5PK SUB: 09409-05302-000	PIN (BLACK)	2	Rp11.500
15	61631-90J00-000	HOOK, ENGINE COVER RR	2	-	!61600-90800
16-1	61633-90J02-0EP SUB: 61633-90J01-0EP	LEVER, HOOK REAR STBD (BLACK)	1	Rp1.115.000	!61633-90J02-0EP
16-2	61633-90J02-0EP	LEVER, HOOK REAR	1	Rp1.115.000	DF100:981271%
17-1	61633-90J02-0EP SUB: 61634-90J01-0EP	LEVER, HOOK RR PORT (BLACK)	1	Rp1.115.000	!61633-90J02-0EP
17-2	61633-90J02-0EP	LEVER, HOOK REAR	1	Rp1.115.000	DF100:981271%
18-2	61637-90J02-000	HOOK, ENGINE COVER REAR STBD	1	Rp60.000	DF100:981271%
18-1	61637-90J00-000	HOOK, ENGINE COVER RR STBD	1	Rp124.500	MODEL:02%09
19-1	61638-90J00-000	HOOK, ENGINE COVER RR PORT	1	Rp124.500	MODEL:02%09
19-2	61638-90J02-000	HOOK, ENGINE COVER REAR PORT	1	Rp60.000	DF100:981271%
20	DISCONTINUE SUB: 61641-87D00-000	HOOK, ENGINE COVER FR	1	-
21	61645-90J01-0EP	LEVER, HOOK FR (BLACK)	1	Rp1.115.000
22	09116-06127-000	BOLT (6X12)	3	Rp27.000
23	09160-13014-000	WASHER (13.2X25X1.0)	3	Rp25.500
24	09164-14008-000	WASHER, WAVE	3	Rp19.500
25-1	09307-13003-000	BUSH (FR & RR)	3	-
25-2	09307-13003-000	BUSH, FRONT	1	-	DF90:251530%
25-3	09307-13006-000	BUSH, FRONT	1	Rp56.000	DF90:421060%
25A	09306-13008-000	BUSH, REAR	2	Rp56.000	DF90:251530%
26-1	61124-90J00-000	GROMMET, REMOCON CABLE	1	Rp102.000
26-2	61124-90J31-000 SUB: 61124-90J30-000	GROMMET, REMOCON CABLE	1	Rp203.500	MODEL:07%
27	67341-90J01-000	HOLDER, REMOCON CABLE	1	-	MODEL:01,02
28	DISCONTINUE SUB: 67343-90J01-000	STOPPER, REMOCON CABLE	1	-	MODEL:01,02
29	09407-19401-000 SUB: 09407-25402-000	CLAMP	1	Rp31.500
30	01550-06167-000	BOLT	2	Rp16.500	MODEL:01,02
31	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500	MODEL:01,02
32	67341-90J32-000	HOLDER, REMOCON CABLE	1	Rp310.000	MODEL:03%
33	67343-90J20-000	STOPPER, REMOCON CABLE	1	Rp83.000	MODEL:03%
34	67344-90J00-000	CUSHION, REMOCON CABLE HLDR	1	Rp67.000	MODEL:03%
35	01550-06167-000	BOLT	2	Rp16.500	MODEL:03%
36	01580-08257-000	BOLT	1	Rp20.000	MODEL:03%
