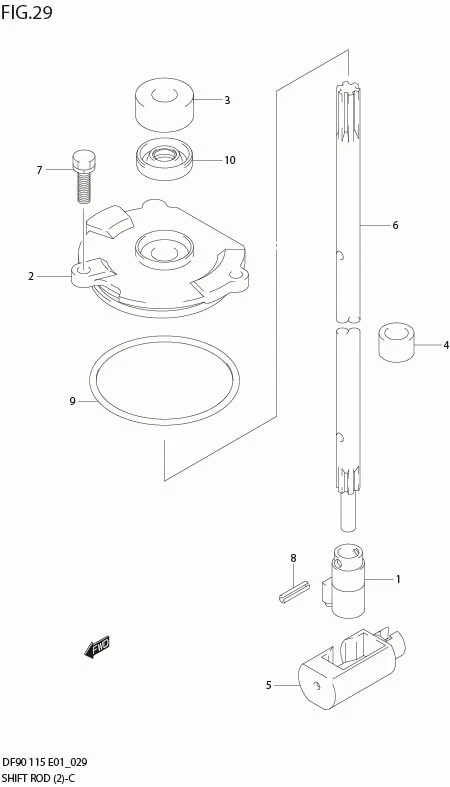

FIG 29 SHIFT ROD (DF90T:680686%

FIG 29 SHIFT ROD (DF90T:680686%

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25131-92J01-000 SUB: 25131-92J00-000	YOKE, SHIFTER	1	Rp398.000
2	25141-92J01-000 SUB: 25141-92J00-000	HOUSING, SHIFT ROD GUIDE	1	Rp265.500
3	25222-92J01-000 SUB: 25222-92J00-000	COVER, OIL SEAL	1	Rp37.000
4	25232-90J00-000	MAGNET, GEAR CASE	1	Rp46.000
5	25321-92J10-000	SLIDER, SHIFT HORIZONTAL	1	Rp896.000
6-1	25111-92J00-000	ROD ASSY, SHIFT (L)	1	Rp695.500
6-2	25111-92J10-000	ROD ASSY, SHIFT (X)	1	Rp731.500
7	29116-93J00-000	BOLT (6X20)	2	Rp23.000	?09116-06106
8	09205-04014-000	PIN	2	Rp10.500
9	09280-69001-000	O RING (D:3.1,ID:68.5)	1	Rp24.000
10	09283-10011-000	SEAL, DUST	1	Rp36.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
