DF90 115 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF90T FIG 10 FUEL VAPOR SEPARATOR (DF115WT/WZ FIG 11 FUEL INJECTOR FIG 12 FUEL INJECTOR (DF90T:151862%FIG 13 FUEL INJECTOR (DF115WT/WZ FIG 14 FUEL PUMP (DF90T FIG 15 FUEL PUMP (DF90T:680686%FIG 16 FUEL PUMP (DF115WT)FIG 17 FUEL PUMP (DF115WT:681518%FIG 18 WATER PUMP (DF90T FIG 19 WATER PUMP (DF115WT)FIG 20 WATER PUMP (*)FIG 21 THERMOSTAT FIG 22 THROTTLE BODY FIG 23 OIL PUMP FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (DF90T:372278%FIG 27 CLUTCH SHAFT (*)FIG 28 SHIFT ROD (DF90T FIG 29 SHIFT ROD (DF90T:680686%FIG 30 SHIFT ROD (DF115Z)FIG 31 TRANSMISSION (DF90T FIG 32 TRANSMISSION (DF115Z)FIG 33 STARTING MOTOR FIG 34 MAGNETO FIG 35 RECTIFIER FIG 36 IGNITION COIL FIG 37 SENSOR FIG 38 HARNESS FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 41 CLAMP BRACKET FIG 42 SWIVEL BRACKET FIG 43 TRIM CYLINDER FIG 44 PTT MOTOR FIG 45 ENGINE HOLDER FIG 46 ENGINE HOLDER (DF90:680686%FIG 47 DRIVE SHAFT HOUSING FIG 48 GEAR CASE (DF90T FIG 49 GEAR CASE (DF115Z)FIG 50 SIDE COVER FIG 51 ENGINE COVER (MODEL:01 FIG 52 ENGINE COVER (MODEL:03%09)FIG 52A ENGINE COVER (MODEL:10%)FIG 53 FUEL TANK (METAL)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:01%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER (MODEL:01%04)FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:TRIM SENDER FIG 63 OPT:HARNESS FIG 64 OPT:HARNESS (MODEL:08%)FIG 65 OPT:SWITCH (MODEL:01%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:01%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TILLER HANDLE (MODEL:01%03)FIG 71 OPT:TILLER HANDLE (MODEL:04%)FIG 72 OPT:GASKET SET

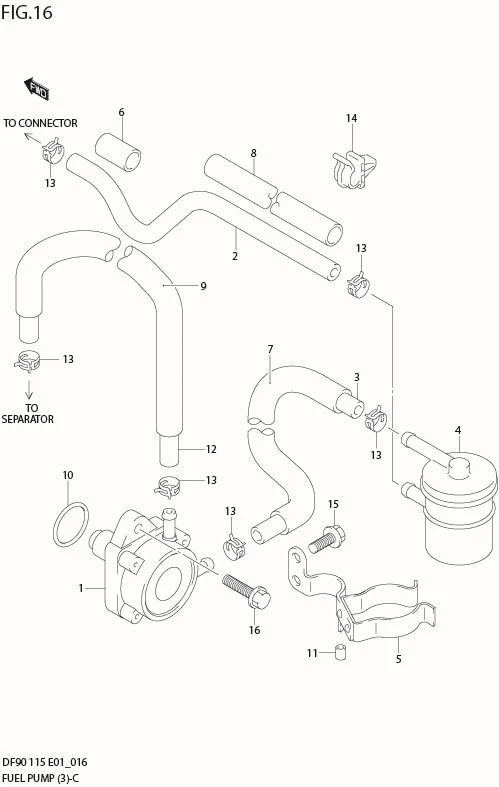

FIG 16 FUEL PUMP (DF115WT)

FIG 16 FUEL PUMP (DF115WT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-90J11-000 SUB: 15100-90J10-000	PUMP, FUEL	1	Rp1.196.500
2	15191-90J10-000	HOSE, FUEL (CONN TO FILTER)	1	Rp319.500
3	15192-90J11-000 SUB: 15192-90J10-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp163.000
4	15410-87J20-000	FILTER, FUEL	1	Rp92.000
5-1	DISCONTINUE SUB: 15420-90J01-000	BRACKET, FUEL FILTER	1	-
5-2	DISCONTINUE SUB: 15420-90J10-000	BRACKET, FUEL FILTER	1	-	MODEL:04%06
6	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!160
7	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!230
8	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!510
9	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!450
10	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4,ID:26.2)	1	Rp3.000
11	09320-05016-000	CUSHION	1	Rp13.500
12	09355-70129-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp342.000	L:600!540
13	09401-10409-000 SUB: 09401-11407-000	CLIP	6	Rp7.500
14	09403-11314-000	CLAMP	1	Rp24.500
15	01550-06167-000	BOLT	2	Rp16.500
16	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
