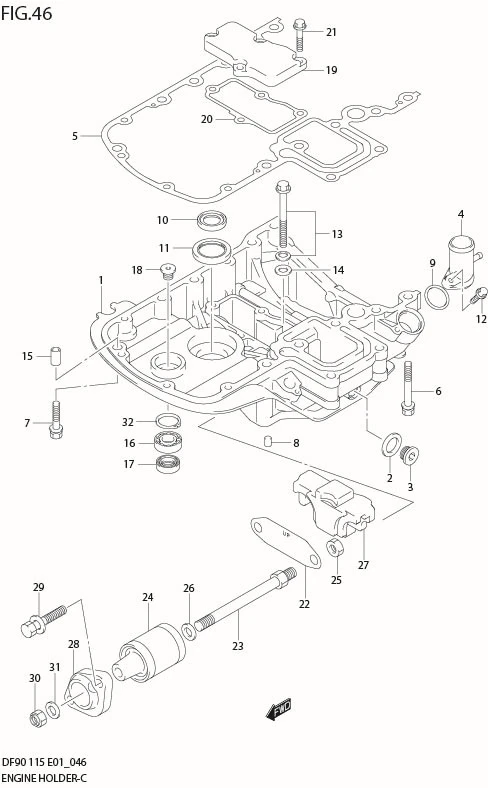

FIG 46 ENGINE HOLDER (DF90:680686%

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	51110-90843-0EP SUB: 51110-90841-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	MODEL:07
1-1	51110-90843-0EP SUB: 51110-90840-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	INC.NO.2,3,10,11,16,17,32
1-3	51110-90843-0EP SUB: 51110-90842-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	MODEL:08%
2	09160-18031-000	?GASKET (18.5X28X2.6)	1	Rp19.500	%MODEL:07
3	09248-18010-000	?PLUG	1	Rp50.500	%MODEL:07
4	51115-90J00-000	UNION, WATER RETURN	1	Rp125.000
5	51211-90J22-000 SUB: 51211-90J21-000	GASKET, ENGINE HOLDER	1	Rp657.000
6	09116-08119-000	BOLT (8X70)	4	Rp21.500
7	09116-08128-000	BOLT (8X40)	4	Rp124.500	?09116-08098
8	09206-08001-000 SUB: 09206B08001N000	PIN	2	Rp5.500
9	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
10	09282-24003-000	SEAL, OIL	2	Rp53.500
11	09283-32044-000	SEAL, OIL	1	Rp121.500
12	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500
13	29117-93J10-000	BOLT (W/WASHER) (8X45)	1	Rp36.000	?09117-08038
14	09160-08059-000	WASHER (8.5X18X1.6)	1	Rp10.500
15	04211-11129-000 SUB: 04211B11129N000	PIN	3	Rp2.000
16	09262-17019-000	BEARING, CLUTCH SHAFT	1	Rp163.500
17	09289-18001-000	SEAL, CLUTCH SHAFT	1	Rp149.000
18	09248-12005-000	PLUG, CLUTCH SHAFT	1	Rp34.000
19	51122-90J00-000	COVER, MOUNT CASE	1	Rp473.000
20	51123-90J01-000	GASKET, MOUNT CASE COVER	1	Rp86.000
21	01550-0825A-000 SUB: 01550B0825AN000	BOLT	4	Rp3.500
22	54123-90J01-000 SUB: 54123-90J00-000	PLATE, UPPER MOUNT	1	Rp172.000
23	54112-90J21-000	BOLT, UPPER MOUNT	2	Rp484.500
24	54130-90J40-000	MOUNT, UPPER	2	Rp442.000
25	09159-12014-000	NUT	2	Rp37.000
26	54114-90J01-000	WASHER (12.5X22X3)	2	Rp31.500
27	54125-90J11-000 SUB: 54125-90J10-000	MOUNT, UPPER THRUST	1	Rp184.000
28	54148-90J11-0EP	COVER, UPPER MOUNT (BLACK)	2	Rp430.000
29	09116-10176-000 SUB: 09116-10139-000	BOLT (W/WASHER) (10X44)	4	Rp100.000
30	09159-12014-000	NUT	2	Rp37.000
31	09160-12110-000	WASHER (12.5X22X3)	2	Rp55.000
32	08331-41359-000 SUB: 08331-41356-000	CIRCLIP	1	Rp18.500
