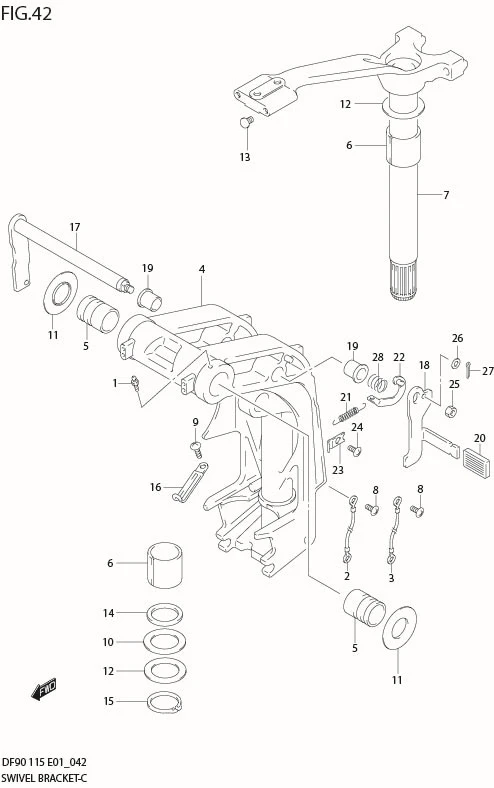

FIG 42 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	4	Rp39.500	DF90:680686%
1-1	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	5	Rp39.500
1-4	22511-99011-000	NIPPLE, GREASE	4	Rp39.500	TYPE:X
1-3	22511-99011-000	NIPPLE, GREASE	5	Rp39.500	TYPE:L
2	36894-95201-000	LEAD (CLAMP TO SWIVEL)	1	Rp110.500
3	36894-87D00-000	LEAD (SWIVEL TO HOUSING)	1	Rp98.500
4-7	43111-90J30-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.002.500	TYPE:X
4-6	43111-90J10-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.490.500	TYPE:X
4-5	43111-90J02-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.002.500	TYPE:X
4-4	43111-90J21-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	TYPE:L
4-3	43111-90J20-0EP	BRACKET, SWIVEL (BLACK)	1	Rp8.900.500	TYPE:L
4-2	43111-99E40-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.246.500	TYPE:L
4-1	43111-99E31-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	TYPE:L
5-1	43211-87D00-000	BUSH, CLAMP SHAFT SWIVEL	2	Rp80.500
5-2	43211-93J11-000 SUB: 43211-93J00-000	BUSH, CLAMP SHAFT SWIVEL	2	Rp75.000	DF90:680686%
6	43711-97E11-000 SUB: 43711-97E00-000	BUSH, STEERING	2	Rp106.500
7-1	43750-90J00-0EP	BRACKET, STEERING (BLACK)	1	Rp8.052.500	TYPE:L
7-2	43750-90J61-0EP SUB: 43750-90J22-0EP	BRACKET, STEERING (BLACK)	1	Rp7.281.000	TYPE:L
7-3	43750-90J11-0EP	BRACKET, STEERING (BLACK)	1	Rp8.488.500	TYPE:X
7-4	43750-90J71-0EP SUB: 43750-90J32-0EP	BRACKET, STEERING (BLACK)	1	Rp7.683.500	TYPE:X
8	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	3	Rp14.000	?09125-05050
9	09125-06063-000	SCREW (6X10)	2	Rp15.000
10	09160-39001-000	WASHER (39.5X64X1.0)	2	Rp23.000
11	09169-28003-000	WASHER	2	Rp34.000
12	09181-39001-000	SHIM (39.5X64X0.3)	4	Rp31.500
13	09250-10001-000	PLUG	2	Rp11.000
14	09282-39001-000	SEAL, OIL	1	Rp53.000
15	09380-38003-000	CIRCLIP	1	Rp50.500
16	DISCONTINUE SUB: 29404-93J10-000	CLAMP	2	-	?09404-06432
17	41220-95E13-000	LEVER, TILT LOCK	1	Rp964.500
18	41221-95E40-000	LEVER, TILT LOCK PORT	1	Rp272.500
19	41224-95E01-000	BUSH, TILT STOPPER ROD	2	Rp41.500
20	41225-94400-000	RUBBER, TILT LOCK LEVER	1	Rp30.000
21	DISCONTINUE SUB: 41228-90J00-000	SPRING, TILT LOCK LEVER	1	-
22	41230-95E00-000	LINK, TILT LOCK LEVER	1	Rp199.000
23	41233-95E10-000	BRACKET, TILT LOCK SPRING	1	Rp81.000
24	09125-06063-000	SCREW (6X10)	1	Rp15.000
25	09140-10032-000	NUT	1	Rp15.000
26	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
27	09204-01006-000	PIN, COTTER	1	Rp14.000
28	09440-19028-000	SPRING	1	Rp24.500
