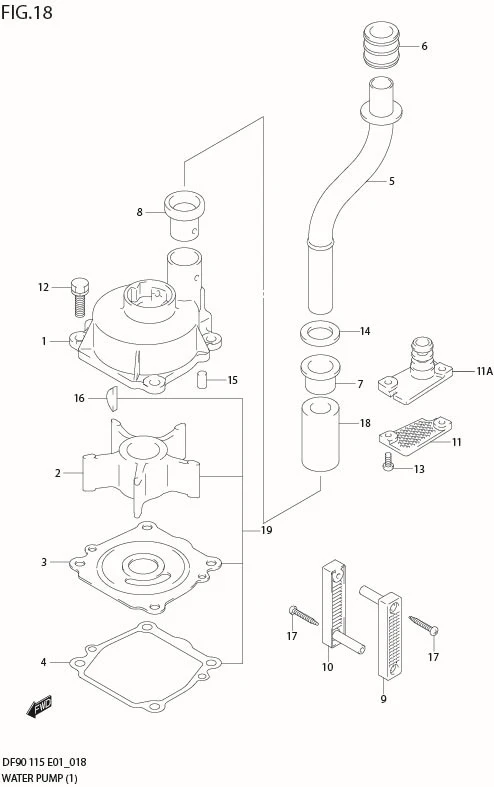

FIG 18 WATER PUMP (DF90T

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17411-90J00-000	CASE, WATER PUMP	1	-	!17400-90810
2	17461-90J01-000	IMPELLER, WATER PUMP	1	Rp493.000
3-1	17471-92J00-000 SUB: 17471-87E01-000	PANEL, PUMP CASE UNDER	1	Rp122.500
3-2	17471-92J10-000 SUB: 17471-87E10-000	PANEL, PUMP CASE UNDER	1	Rp397.500	OPT
4	17472-87E10-000	GASKET, PUMP CASE PANEL	1	Rp53.000
5-1	17560-90J01-000	TUBE, WATER (L)	1	-	?17560-90J00
5-2	17560-90J11-000	TUBE, WATER (X)	1	-	?17560-90J10
6	17562-90J01-000 SUB: 17562-90J00-000	BUSH, WATER TUBE UPPER	1	Rp29.000
7	17563-87D01-000 SUB: 17563-87D00-000	BUSH, WATER TUBE LOWER	1	Rp75.000
8	17564-87D00-000	BUSH, WATER PUMP CASE	1	Rp104.000
9	17631-90J00-000	FILTER, WATER PORT SIDE	1	Rp84.500
10	17632-90J00-000	FILTER, WATER STBD SIDE	1	Rp84.500
11	17635-87E00-000	FILTER, WATER SUB	1	Rp39.000
11A	17635-90J00-000	PLUG, SUB WATER TUBE	1	Rp40.500	DF90:372440%
12	09117-08110-000 SUB: 09117-08057-000	BOLT (8X25)	4	Rp33.000
13	09125-05046-000	SCREW (5X12)	2	Rp14.000
14	09161-16008-000	WASHER	1	Rp19.000
15	09202-06031-000	PIN, KNOCK	2	Rp21.500
16	09420-05009-000	KEY	1	Rp75.500
17-1	03112-04303-000	SCREW	2	-
17-2	09132-04034-000	SCREW (4X18)	2	Rp15.000	DF90:371214%
18	17612-90J01-000 SUB: 17612-90J00-000	SPACER, WATER TUBE	1	Rp34.000	TYPE:X
19	17400-90J20-000 SUB: 17400-90J11-000	WATER PUMP REPAIR KIT	1	Rp712.000	OPT
