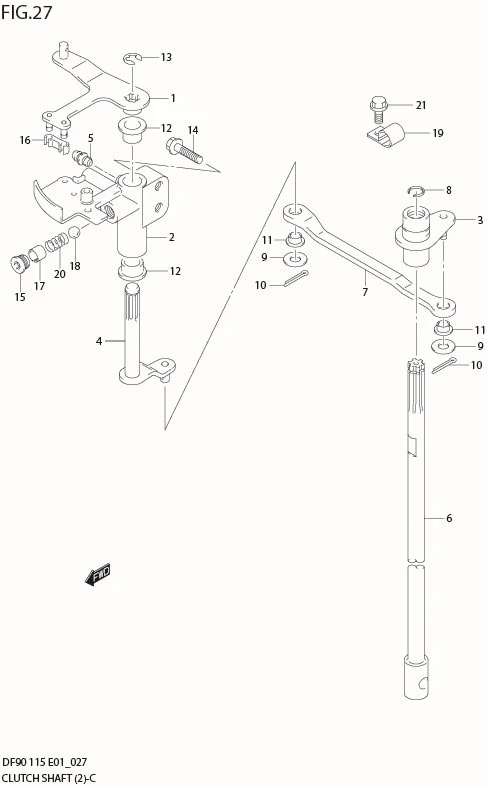

FIG 27 CLUTCH SHAFT (*)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21110-92J00-000	LEVER, CLUTCH	1	Rp488.500
2	21151-92J00-000	HOLDER, CLUTCH LEVER	1	Rp407.000
3	21210-92J00-000	SHAFT, CLUTCH	1	Rp423.000
4	21230-92J00-000	ARM, CLUTCH SHAFT	1	Rp283.500
5	22511-99011-000	NIPPLE, GREASE	1	Rp39.500
6-1	23111-90J02-000	ROD, CLUTCH (L)	1	Rp551.500
6-2	23111-90J12-000	ROD, CLUTCH (X)	1	Rp632.500
7	23115-92J00-000	LINK, CLUTCH LEVER	1	Rp89.000
8	DISCONTINUE SUB: 23117-90J00-000	RING, CLUTCH ROD	1	-	DF90:%681180
9	09160-06094-000	WASHER (6.5X15X1.5)	2	Rp11.000
10	09204-01006-000	PIN, CLUTCH LEVER LINK	2	Rp14.000
11	09306-06004-000	BUSH, CLUTCH LEVER LINK	2	Rp11.000
12	09306-10001-000	BUSH, CLUTCH LEVER	2	Rp24.000
13	09383-08004-000	E RING	1	Rp9.500
14	01550-06307-000	BOLT, HOLDER CLUTCH LINK	2	Rp18.000
15	11118-95J00-000	PLUG, NOTCH SPRING	1	Rp47.500
16	21131-93J00-000	BUSH, CLUTCH LEVER	1	Rp13.000
17	09205-10006-000	PIN, CLUTCH NOTCH SPRING	1	Rp32.000
18	09260-10005-000	BALL, CLUTCH NOTCH	1	Rp15.500
19	09403-13413-000 SUB: 09403-13408-000	CLAMP, HOSE	1	Rp41.500
20	09440-07071-000	SPRING, CLUTCH NOTCH	1	Rp37.500
21	01550-06167-000	BOLT, HOSE CLAMP	1	Rp16.500
