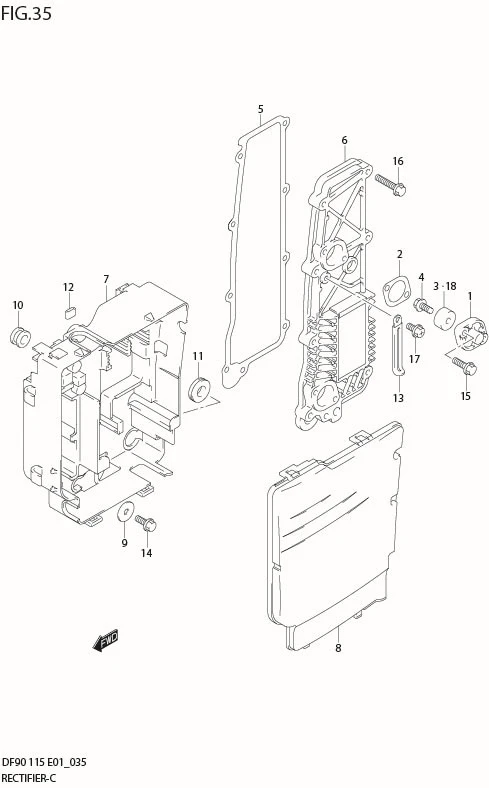

FIG 35 RECTIFIER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11261-87E10-000	COVER, PROTECTION ANODE	2	Rp116.500	MODEL:03%
1-1	11261-87E10-000	COVER, PROTECTION ANODE	2	Rp116.500
2	11265-87E10-000	GASKET, PROTECTION COVER	2	Rp34.000
3	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	2	Rp79.500
4-1	DISCONTINUE SUB: 09128-06021-000	BOLT (6X14)	2	-
4-2	09103-06281-000	BOLT (6X14)	2	Rp20.500	MODEL:06%
5	14151-90J00-000	GASKET, RECTIFIER	1	Rp54.500
6-1	DISCONTINUE SUB: 32800-90J00-000	RECTIFIER	1	-
6-2	DISCONTINUE SUB: 32800-90J10-000	RECTIFIER	1	-	MODEL:03
6-3	DISCONTINUE SUB: 32800-90J20-000	RECTIFIER	1	-	MODEL:04,05
6-4	32800-90J30-000	RECTIFIER	1	Rp3.346.500	MODEL:06%
7	32890-90J01-000	HOLDER, ELECTRIC PARTS	1	Rp265.500
8	32891-90J00-000	COVER, ELECTRIC PARTS HOLDER	1	Rp206.500
9	DISCONTINUE SUB: 09160-06054-000	WASHER (6.5X22X1.6)	1	-
10	09320-10008-000	CUSHION	2	Rp12.000
11	09320-12090-000 SUB: 09320-12011-000	CUSHION	1	Rp13.500
12	DISCONTINUE SUB: 09329-01007-000	CUSHION	1	-
13	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
14	01550-06167-000	BOLT	1	Rp16.500
15	01550-06207-000 SUB: 01550B06207N000	BOLT	4	Rp3.000
16	01550-06307-000	BOLT	9	Rp18.000
17	02162-06127-000	BOLT	1	Rp12.500
18	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
