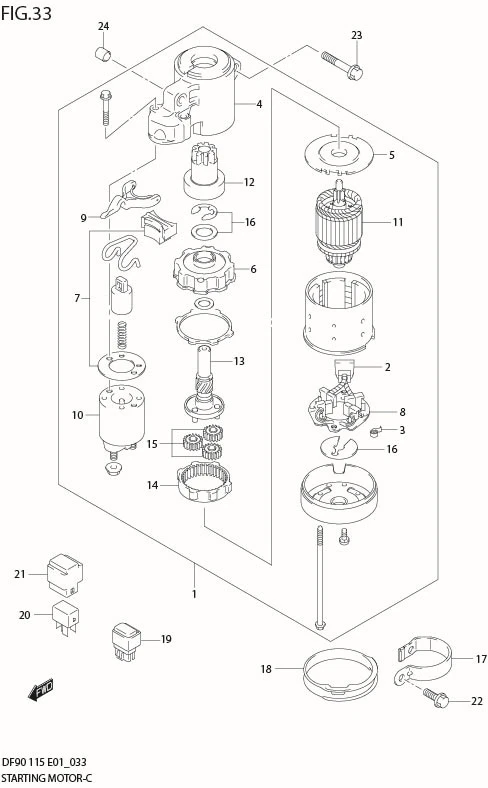

FIG 33 STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-90J01-000	STARTING MOTOR	1	Rp15.000.000
2	31131-90J01-000	?BRUSH SET, PLUS	1	Rp506.500
3	31135-90J00-000	?SPRING	4	Rp63.500
4	31151-90J00-000	?CASE, GEAR	1	Rp2.098.500
5	DISCONTINUE SUB: 31152-90J00-000	?PLATE, CENTER	1	-
6	DISCONTINUE SUB: 31153-90J00-000	?BRACKET, PLANET GEAR	1	-
7	DISCONTINUE SUB: 31171-90J00-000	?COVER KIT, DUST	1	-
8	31173-90J02-000 SUB: 31173-90J01-000	?HOLDER, BRUSH	1	Rp1.431.500
9	DISCONTINUE SUB: 31191-90J00-000	?LEVER, SHIFT	1	-
10	31220-90J00-000	?SWITCH, MAGNET	1	Rp2.565.500
11	31310-90J00-000	?ARMATURE	1	Rp4.559.000
12	31320-90J00-000	?PINION	1	Rp3.351.500
13	31341-90J00-000	?SHAFT, PINION	1	Rp1.271.500
14	DISCONTINUE SUB: 31343-90J00-000	?INTERNAL GEAR	1	-
15	DISCONTINUE SUB: 31344-90J00-000	?GEAR, PLANETARY	3	-
16	31360-90J00-000	?WASHER SET	1	Rp152.500
17	31912-90J00-000	BAND, STARTING MOTOR	1	Rp56.000
18-1	DISCONTINUE SUB: 31918-90J00-000	DAMPER, LOWER	1	-
18-2	31918-90J11-000 SUB: 31918-90J10-000	DAMPER, LOWER	1	Rp88.500	MODEL:06%
19	DISCONTINUE SUB: 38910-92E00-000	RELAY, STARTING MOTOR	1	-	MODEL:01,02
20	38860-76F01-000 SUB: 38860B76F01N000	RELAY, STARTING MOTOR	1	Rp47.000	MODEL:03%
21	38915-90J00-000	HOLDER, RELAY	1	Rp33.000	MODEL:03%
22	01550-08207-000	BOLT	2	Rp19.000
23	01550-10507-000	BOLT	2	Rp24.000
24	04211M13189-000 SUB: 04211-13149-000	PIN	2	Rp9.000
