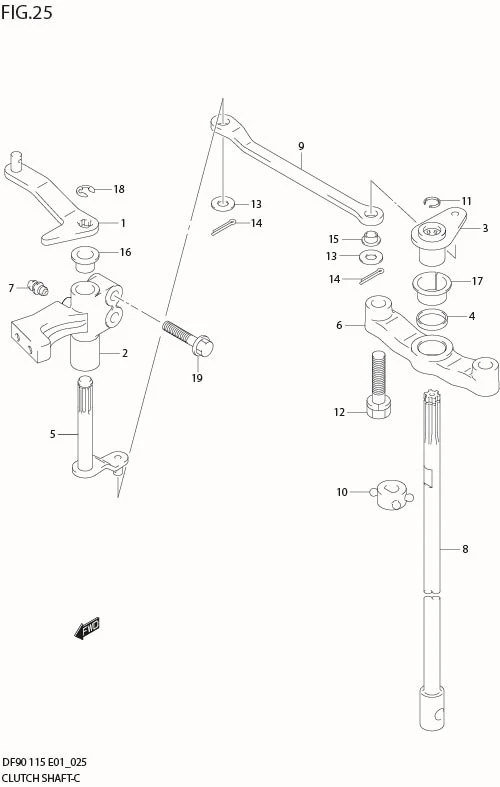

FIG 25 CLUTCH SHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	21110-90J02-000	LEVER, CLUTCH	1	Rp188.000	DF90:251530%
1-1	21110-90J00-000	LEVER, CLUTCH	1	-	!21110-90J02
2-1	21151-90J00-000	HOLDER, CLUTCH LEVER	1	-	!21151-90J01
2-2	21151-90J01-000	HOLDER, CLUTCH LEVER	1	Rp316.500	DF90:251530%
3	DISCONTINUE SUB: 21210-90J01-000	SHAFT, CLUTCH	1	-	?21210-90J00
4	DISCONTINUE SUB: 21221-90J00-000	BUSH, CLUTCH SHAFT HOLDER	1	-
5	21230-90J00-000	ARM, CLUTCH SHAFT	1	Rp564.000
6	21311-90J00-000	HOLDER, CLUTCH SHAFT	1	Rp161.000
7	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	1	Rp39.500
8-1	23111-90J01-000	ROD, CLUTCH (L)	1	Rp398.500	?23111-90J00
8-2	23111-90J11-000	ROD, CLUTCH (X)	1	-	?23111-90J10
9	23115-90J00-000	LINK, CLUTCH LEVER	1	Rp62.500
10	23116-90J00-000	GUIDE, CLUTCH ROD	1	-	MODEL:01,02
11	DISCONTINUE SUB: 23117-90J00-000	RING, CLUTCH ROD	1	-
12	09117-08071-000	BOLT (8X35)	2	Rp52.000
13	09160-06094-000	WASHER (6.5X15X1.5)	2	Rp11.000
14	09204-01006-000	PIN, CLUTCH LEVER LINK	2	Rp14.000
15	09306-06004-000	BUSH, CLUTCH LEVER LINK	2	Rp11.000
16	09306-10001-000	BUSH, CLUTCH LEVER	2	Rp24.000
17	DISCONTINUE SUB: 09306-16004-000	BUSH, CLUTCH SHAFT	1	-
18	09383-08004-000	E RING	1	Rp9.500
19	01550-06307-000	BOLT, HOLDER CLUTCH LINK	2	Rp18.000
