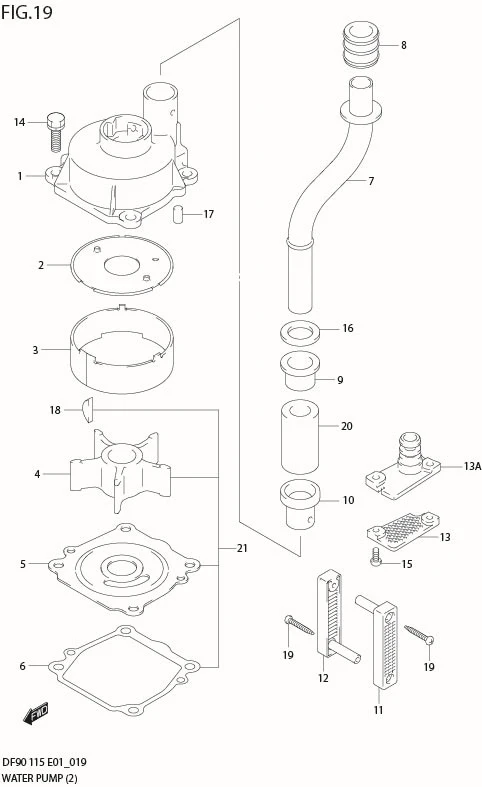

FIG 19 WATER PUMP (DF115WT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17400-90821-000 SUB: 17411-90J20-000	CASE, WATER PUMP	1	Rp1.090.500	!17400-90820
2	17412-90J01-000	PANEL, PUMP CASE UPPER	1	Rp146.500
3	17413-90J00-000	SLEEVE, WATER PUMP	1	Rp191.000
4	17461-90J01-000	IMPELLER, WATER PUMP	1	Rp493.000
5	17471-92J10-000 SUB: 17471-87E10-000	PANEL, PUMP CASE UNDER	1	Rp397.500
6	17472-87E10-000	GASKET, PUMP CASE PANEL	1	Rp53.000
7-1	17560-90J01-000	TUBE, WATER (L)	1	-
7-2	17560-90J11-000	TUBE, WATER (X)	1	-
8	17562-90J01-000 SUB: 17562-90J00-000	BUSH, WATER TUBE UPPER	1	Rp29.000
9	17563-87D01-000 SUB: 17563-87D00-000	BUSH, WATER TUBE LOWER	1	Rp75.000
10	17564-87D00-000	BUSH, WATER PUMP CASE	1	Rp104.000
11	17631-90J00-000	FILTER, WATER PORT SIDE	1	Rp84.500
12	17632-90J00-000	FILTER, WATER STBD SIDE	1	Rp84.500
13	17635-87E00-000	FILTER, WATER SUB	1	Rp39.000
13A	17635-90J00-000	PLUG, SUB WATER TUBE	1	Rp40.500	11501F-374052%
14	09117-08110-000 SUB: 09117-08057-000	BOLT (8X25)	4	Rp33.000
15	09125-05046-000	SCREW (5X12)	2	Rp14.000
16	09161-16008-000	WASHER	1	Rp19.000
17	09202-06031-000	PIN, KNOCK	2	Rp21.500
18	09420-05009-000	KEY	1	Rp75.500
19	09132-04034-000	SCREW	2	Rp15.000
20	17612-90J01-000 SUB: 17612-90J00-000	SPACER, WATER TUBE	1	Rp34.000	TYPE:X
21	17400-90J20-000 SUB: 17400-90J11-000	WATER PUMP REPAIR KIT	1	Rp712.000	OPT
