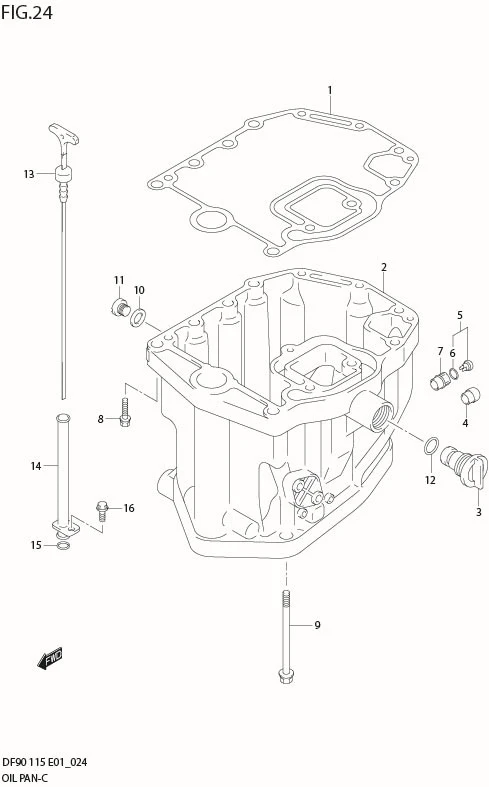

FIG 24 OIL PAN

FIG 24 OIL PAN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11489-90J00-000	GASKET, OIL PAN	1	Rp323.500
2	11501-90J04-0EP	PAN, OIL	1	Rp8.110.000
3	17913-99E12-000 SUB: 17913-99E11-000	PLUG, WATER	1	Rp58.000
4	43112-99E00-000	PIPE, EXHAUST	1	Rp44.000
5	61150-99E01-000 SUB: 61150-99E00-000	COVER, WATER INDICATOR	1	Rp67.500
6	09280-09005-000	?O RING (D:1.9,ID:8.6)	1	Rp23.000
7	DISCONTINUE SUB: 61155-99E01-000	TUBE, WATER INDICATOR	1	-
8	09116-08128-000	BOLT (8X40)	3	Rp124.500	?09116-08098
9	09116-10129-000	BOLT (10X160)	8	Rp136.500
10	09168-12012-000	GASKET	1	Rp12.500
11-1	DISCONTINUE SUB: 09248-12007-000	PLUG	1	-
11-2	09248-12009-000	PLUG	1	Rp49.000	MODEL:04%
12	09280-13005-000	O RING (D:3.5,ID:12.8)	1	Rp18.000
13	16910-90J10-000 SUB: 16910-90J00-000	GAUGE, OIL LEVEL	1	Rp130.000
14	16930-90J01-000	GUIDE, OIL LEVEL	1	Rp119.000	?16930-90J00
15	09280-09008-000	O RING (D:2.1,ID:8.8)	1	Rp20.000
16	01550-06127-000	BOLT	1	Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
