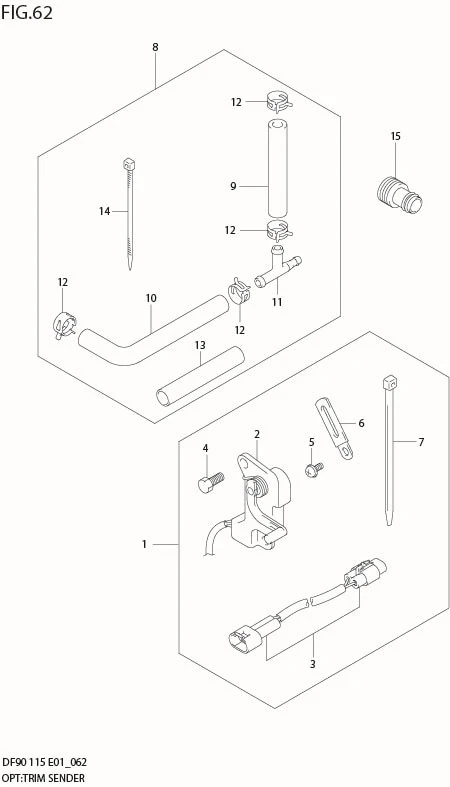

FIG 62 OPT:TRIM SENDER

FIG 62  OPT:TRIM SENDER
No No. Part Description Qty Price Per Pcs Remarks
1 34804-99E00-000 SENDER SET, TRIM 1 Rp1.389.500 MODEL:01
2 34801-99E05-000
SUB: 34801-99E01-000
?TRIM, SENDER 1 Rp2.526.500
3 36682-90J00-000 ?WIRE, TRIM METER EXT & ADP 1 Rp423.500
4 09100-06113-000 ?BOLT (6X16) 2 Rp11.500
5 09125-06063-000 ?SCREW (6X10) 1 Rp15.000
6 DISCONTINUE
SUB: 09404-06432L000
?CLAMP 2 -
7-1 36990-25G00-000
SUB: 09407-14403L000
?CLAMP 1 Rp13.000
7-2 09407-14407-000 ?CLAMP 1 Rp18.500
8 34660-90J04-000
SUB: 34660-90J02-000
WATER PRESS GAUGE SUB KIT 1 Rp108.000
9 09352-50006-600
SUB: 09352-50903-600
?HOSE 1 Rp46.000 L:600!160
10 09352-50006-600
SUB: 09352-50903-600
?HOSE 1 Rp46.000 L:600!210
11 09367-06006-000 ?3 WAY 1 Rp23.500
12 09401-08413-000 ?CLIP 4 Rp19.500
13 18498-99EA1-000
SUB: 18498-99EA0-000
?PROTECTOR (L:80) 1 Rp18.000 NOT FOR DF90/100/115
14 09407-19401-000
SUB: 09407-25402-000
?CLAMP 1 Rp31.500 NOT FOR DF90/100/115
15 17917-87L00-000 CONNECTOR, FLUSH WATER 1 Rp67.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
