  5. FIG 71 OPT:TILLER HANDLE (MODEL:04%)

DF90 115 E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVERFIG 4 CRANKSHAFTFIG 5 TIMING CHAINFIG 6 CAMSHAFTFIG 7 INTAKE MANIFOLDFIG 8 SILENCERFIG 9 FUEL VAPOR SEPARATOR (DF90TFIG 10 FUEL VAPOR SEPARATOR (DF115WT/WZFIG 11 FUEL INJECTORFIG 12 FUEL INJECTOR (DF90T:151862%FIG 13 FUEL INJECTOR (DF115WT/WZFIG 14 FUEL PUMP (DF90TFIG 15 FUEL PUMP (DF90T:680686%FIG 16 FUEL PUMP (DF115WT)FIG 17 FUEL PUMP (DF115WT:681518%FIG 18 WATER PUMP (DF90TFIG 19 WATER PUMP (DF115WT)FIG 20 WATER PUMP (*)FIG 21 THERMOSTATFIG 22 THROTTLE BODYFIG 23 OIL PUMPFIG 24 OIL PANFIG 25 CLUTCH SHAFTFIG 26 CLUTCH SHAFT (DF90T:372278%FIG 27 CLUTCH SHAFT (*)FIG 28 SHIFT ROD (DF90TFIG 29 SHIFT ROD (DF90T:680686%FIG 30 SHIFT ROD (DF115Z)FIG 31 TRANSMISSION (DF90TFIG 32 TRANSMISSION (DF115Z)FIG 33 STARTING MOTORFIG 34 MAGNETOFIG 35 RECTIFIERFIG 36 IGNITION COILFIG 37 SENSORFIG 38 HARNESSFIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 41 CLAMP BRACKETFIG 42 SWIVEL BRACKETFIG 43 TRIM CYLINDERFIG 44 PTT MOTORFIG 45 ENGINE HOLDERFIG 46 ENGINE HOLDER (DF90:680686%FIG 47 DRIVE SHAFT HOUSINGFIG 48 GEAR CASE (DF90TFIG 49 GEAR CASE (DF115Z)FIG 50 SIDE COVERFIG 51 ENGINE COVER (MODEL:01FIG 52 ENGINE COVER (MODEL:03%09)FIG 52A ENGINE COVER (MODEL:10%)FIG 53 FUEL TANK (METAL)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:01%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINKFIG 59 OPT:METER (MODEL:01%04)FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:TRIM SENDERFIG 63 OPT:HARNESSFIG 64 OPT:HARNESS (MODEL:08%)FIG 65 OPT:SWITCH (MODEL:01%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:01%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TILLER HANDLE (MODEL:01%03)FIG 71 OPT:TILLER HANDLE (MODEL:04%)FIG 72 OPT:GASKET SET

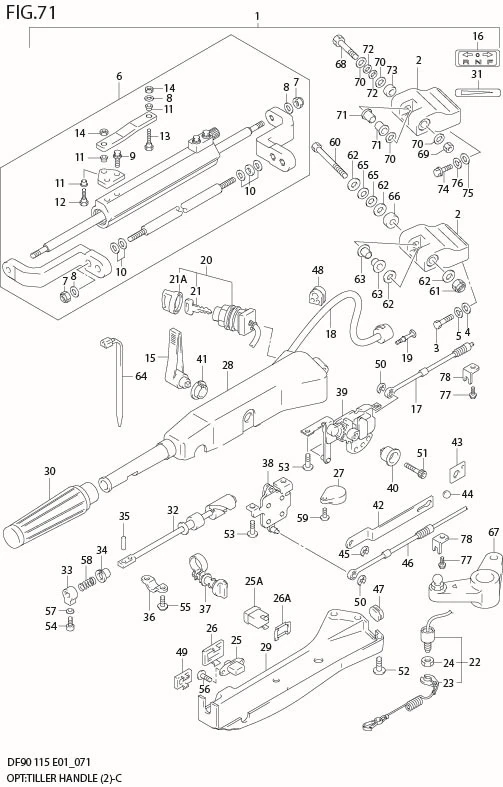

FIG 71 OPT:TILLER HANDLE (MODEL:04%)

FIG 71 OPT:TILLER HANDLE (MODEL:04%)
No No. Part Description Qty Price Per Pcs Remarks
1-1 63002-90J05-0EP
SUB: 63002-90J03-0EP		 KIT, TILLER HANDLE (BLACK) 1 Rp17.511.500
1-2 63002-90J21-0EP KIT, TILLER HANDLE (BLACK) 1 - MODEL:05%
1-3 63002-90J23-0EP KIT, TILLER HANDLE (BLACK) 1 Rp16.799.500 MODEL:07%
1-4 63002-90J24-0EP KIT, TILLER HANDLE (BLACK) 1 - MODEL:09%
1-5 63002-90J25-0EP KIT, TILLER HANDLE (BLACK) 1 - MODEL:10%
1-6 63002-90J26-0EP KIT, TILLER HANDLE 1 Rp17.070.000
2-1 43761-90J03-0EP
SUB: 43761-90J01-0EP		 ?BRACKET, TILLER HANDLE 1 Rp4.764.500
2-2 43761-90J03-0EP
SUB: 43761-90J02-0EP		 ?BRACKET, TILLER HANDLE 1 Rp4.764.500 FOR 63002-90J23-0EP
3 43769-90J00-000 ?BOLT, TILLER HANDLE 2 Rp120.000 FOR 63002-90J03-0EP
4 09160-12066-000 ?WASHER 2 Rp15.000 FOR 63002-90J03-0EP
5 29162-93J20-000 ?WASHER, LOCK 2 Rp17.000 FOR 63002-90J03-0EP
6 43770-90J00-000 ?DAMPER ASSY, STEERING 1 Rp17.540.000
7 43778-90J00-000 ??NUT, ROD 4 Rp100.000
8 43779-90J00-000 ??WASHER, ROD 5 Rp35.500
9 67725-90J00-000 ??BOLT, DRAG LINK PLATE 2 Rp29.000
10 43781-90J00-000 ??SPACER/WASHER SET 1 Rp495.000
11 67734-90J00-000 ??BUSH, DRAG LINK 3 Rp72.000
12 67725-90J10-000 ??BOLT, DRAG LINK 1 Rp600.500
13 67725-90J20-000 ??BOLT, DRAG LINK 1 Rp654.500
14 67726-90J00-000 ??NUT, DRAG LINK 2 Rp45.500
15 21111-87J10-0EP ?LEVER, SHIFT (BLACK) 1 Rp858.000
16 21131-96010-000 ?MARK, SHIFT 1 Rp12.000
17 23230-90J00-000 ?CABLE, SHIFT 1 Rp1.194.000
18-1 36620-90J00-000 ?WIRE ASSY, HANDLE 1 Rp438.500
18-2 36620-90J20-000 ?WIRE ASSY, HANDLE 1 Rp492.000 MODEL:05%
19 36615-96300-000 ??TERMINAL 2 Rp11.500
20 37110-87J21-000
SUB: 37110-87J20-000		 ?SWITCH ASSY, IGNITION 1 Rp561.000
21-1 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 -
21-2 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 -
21-3 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 -
21-4 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 -
21-5 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 -
21-6 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 -
21-7 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 -
21-8 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 -
21-9 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 -
21-10 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 -
21-11 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 -
21-12 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 -
21A 37143-99E00-000 ??CAP, KEY 1 Rp26.000
22 37820-87J04-000
SUB: 37820-87J02-000		 ?SWITCH ASSY, EMERGENCY 1 Rp669.500
23 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE 1 Rp221.500
24 37826-92E00-000 ??NUT 1 Rp82.000
25 DISCONTINUE
SUB: 37860-94610-000		 ?SWITCH ASSY, TRIM 1 - FOR 63002-90J03-0EP
25A 37850-87J00-000 ?SWITCH ASSY, TRIM 1 Rp752.000 FOR 63002-90J26-0EP
26 DISCONTINUE
SUB: 37869-95590-000		 ?CAP 1 - FOR 63002-90J03-0EP
26A 37852-87J00-000 ?PLATE, TRIM SWITCH 1 Rp112.000 FOR 63002-90J26-0EP
27 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 -
28-1 63111-87J03-0EP ?HOUSING, TILLER HANDLE 1 - !63111-87J10-0EP
28-2 63111-87J10-0EP ?HOUSING, TILLER HANDLE 1 Rp1.312.500 FOR 63002-90J23-0EP
29-1 63120-87J00-000
SUB: 63121-87J02-000		 ?COVER, UNDER 1 Rp260.500 !63120-87J00
29-2 63121-87J03-000 ?COVER, UNDER 1 Rp243.500 FOR 63002-90J26-0EP
30 63210-93E30-000 ?GRIP, HANDLE 1 Rp316.500
31 63215-93110-000 ?MARK, HANDLE GRIP 1 Rp30.000
32 63221-87J00-000 ?SHAFT, THROTTLE 1 Rp545.000
33 63223-92D00-000 ?STOPPER, HANDLE ROD 1 Rp40.000
34 63225-93200-000 ?BUSH, HANDLE ROD 1 Rp37.000
35 63227-93200-000 ?PIN, HANDLE ROD 1 Rp21.000
36 63235-87J00-000 ?PLATE, THROTTLE SHAFT 1 Rp28.500
37 63240-87J00-000 ?ADJUSTER, THROTTLE 1 Rp111.000
38 63250-87J01-000 ?ARM ASSY, THROTTLE 1 Rp1.628.500
39 63260-87J02-000 ?GEAR ASSY, SHIFT 1 Rp2.152.500
40 63261-87J00-000 ?BUSH, SHIFT GEAR 1 Rp114.500
41 63262-87J00-000 ?BUSH, SHIFT LEVER 1 Rp38.000
42 63271-87J00-000 ?PLATE, LOCK 1 Rp136.000
43 63272-87J00-000 ?PLATE, BALL GUIDE 1 Rp85.000
44 63273-87J00-000 ?BALL 1 Rp53.000
45 63274-87J00-000 ?E RING 1 Rp24.000
46 63610-90J00-000 ?CABLE, THROTTLE 1 Rp393.500
47 63625-99E00-000 ?GROMMET, THROTTLE CABLE 1 Rp45.000
48 63626-99E01-000 ?GROMMET, WIRE HARNESS 1 Rp61.000
49 67263-99E00-000 ?COVER, TRIM SWITCH 1 Rp54.500 FOR 63002-90J03-0EP
50 67292-87J00-000 ?E RING 2 Rp24.500
51 09106-08099-000 ?BOLT (8X50) 1 Rp25.500
52 DISCONTINUE
SUB: 09125-05047-000		 ?SCREW (5X14) 6 -
53 09125-06069-000 ?SCREW (6X12) 4 Rp22.000
54 09126-06015-000 ?SCREW (6X23) 1 Rp19.500
55 09136-05008-000 ?SCREW (5X12) 2 Rp28.500
56 DISCONTINUE
SUB: 09139-02003-000		 ?SCREW (2X6) 2 -
57 09163-06001-000 ?WASHER, LOCK (6.4X12X0.5) 1 Rp12.000
58 09440-12027-000 ?SPRING 1 Rp13.500
59 02142-05207-000 ?SCREW 1 Rp11.000
60 09100-10264-000 ?BOLT (10X80) 1 Rp111.000 FOR 63002-90J03-0EP
61 09159-10050-000 ?NUT 1 Rp25.000 FOR 63002-90J03-0EP
62 09160-10114-000 ?WASHER (10.5X22X1.5) 4 Rp24.500 FOR 63002-90J03-0EP
63 09306-10020-000 ?BUSH 2 Rp28.000 FOR 63002-90J03-0EP
64 36990-25G00-000
SUB: 09407-14403L000		 ?CLAMP 1 Rp13.000
65 09164-10013-000 ?WASHER, WAVE 2 Rp20.000 FOR 63002-90J03-0EP
66 43768-90J00-000 ?SPACER 1 Rp212.000 FOR 63002-90J03-0EP
67 19140-90J10-000 ?LEVER, THROTTLE 1 Rp79.000
68 09100-10264-000 ?BOLT, TILLER HANDLE PIVOT 1 Rp111.000 FOR 63002-90J23-0EP
69 09159-10050-000 ?NUT, TILLER HANDLE PIVOT 1 Rp25.000 FOR 63002-90J23-0EP
70 09160-10114-000 ?WASHER, TILLER HANDLE PIVOT 4 Rp24.500 FOR 63002-90J23-0EP
71 09306-10020-000 ?BUSH, TILLER HANDLE PIVOT 2 Rp28.000 FOR 63002-90J23-0EP
72 09164-10016-000 ?WASHER, TILLER HANDLE SPR 2 Rp47.500 FOR 63002-90J23-0EP
73 43768-90J01-000 ?SPACER, TILLER HANDLE 1 Rp305.500 FOR 63002-90J23-0EP
74 43769-90J00-000 ?BOLT, TILLER HANDLE 2 Rp120.000 FOR 63002-90J23-0EP
75 09160-12066-000 ?WASHER 2 Rp15.000 FOR 63002-90J23-0EP
76 29162-93J20-000 ?WASHER LOCK 2 Rp17.000 FOR 63002-90J23-0EP
77 63611-87J00-000 ?BOLT, CLAMP BRACKET 2 Rp71.000 FOR 63002-90J23-0EP
78 63612-87J00-000 ?BRACKET, CLAMP 2 Rp184.500 FOR 63002-90J23-0EP

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
