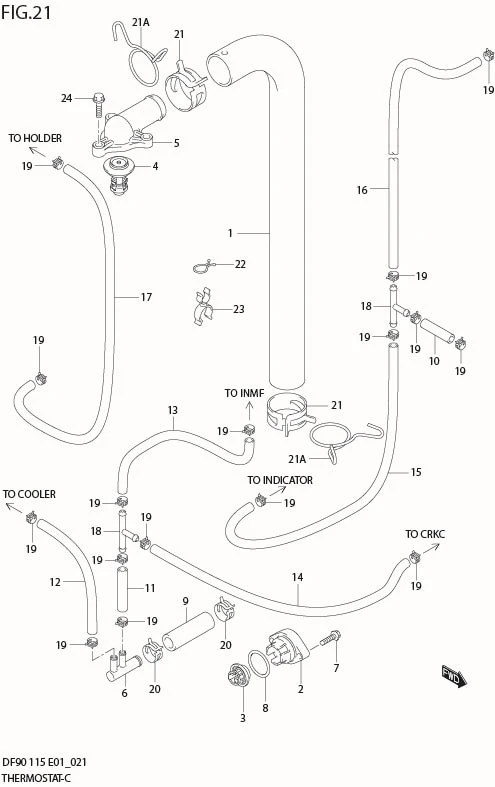

FIG 21 THERMOSTAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11196-90J00-000	HOSE, WATER RETURN	1	Rp227.000
2	17611-90J00-000 SUB: 17611-90J00-0EP	COVER, WATER PRESS VALVE	1	Rp342.000
3	17660-90J00-000	VALVE, WATER PRESSURE	1	Rp141.000
4-1	17670-90J01-000 SUB: 17670-90J00-000	THERMOSTAT (60ÿC)	1	Rp417.000
4-2	17670-90J11-000 SUB: 17670-90J10-000	THERMOSTAT (71ÿC)	1	Rp478.000	OPT
5	17681-90J01-000	COVER, THERMOSTAT	1	Rp216.500
6	17711-90J00-000	3 WAY, WATER HOSE	1	Rp31.500
7	09116-06121-000	BOLT (6X25)	2	Rp18.000
8	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
9	09352-11153-600	HOSE (HOLDER TO 3 WAY)	1	Rp56.500	L:600!50
10	09352-50006-600 SUB: 09352-50903-600	HOSE (INMF COVER TO 3 WAY)	1	Rp46.000	L:600!50
11-1	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO 3 WAY)	1	Rp46.000	L:600!50
11-2	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO 3 WAY)	1	Rp46.000	L:600!70
12	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO COOLER)	1	Rp46.000	L:600!160
13	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO INMF)	1	Rp46.000	L:600!200
14	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO CRKC LOWER)	1	Rp46.000	L:600!370
15	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO INDICATOR)	1	Rp46.000	L:600!370
16	09352-50006-600 SUB: 09352-50903-600	HOSE (CRKC UPPER TO 3 WAY)	1	Rp46.000	L:600!450
17	09352-50006-00B SUB: 09352-50903-00B	HOSE, WATER (COOLER TO HOLDER)	1	Rp158.000	L:2000!690
18	09367-06002-000	3 WAY, WATER HOSE	2	Rp21.000
19	09401-08413-000	CLIP	16	Rp19.500
20	09401-14409-000	CLIP	2	Rp23.500
21	09401-31407-000	CLIP	2	Rp53.500	MODEL:01,02,05%
21A	09401-31201-000	CLIP	2	Rp55.500	MODEL:03,04
22	DISCONTINUE SUB: 09408-00024-000	CLIP	1	-
23-1	DISCONTINUE SUB: 09408-00056-000	CLIP	1	-
23-2	09408-00069-000	CLIP	1	Rp25.000	MODEL:03%
24	01550-06257-000 SUB: 01550B06257N000	BOLT	3	Rp3.500
