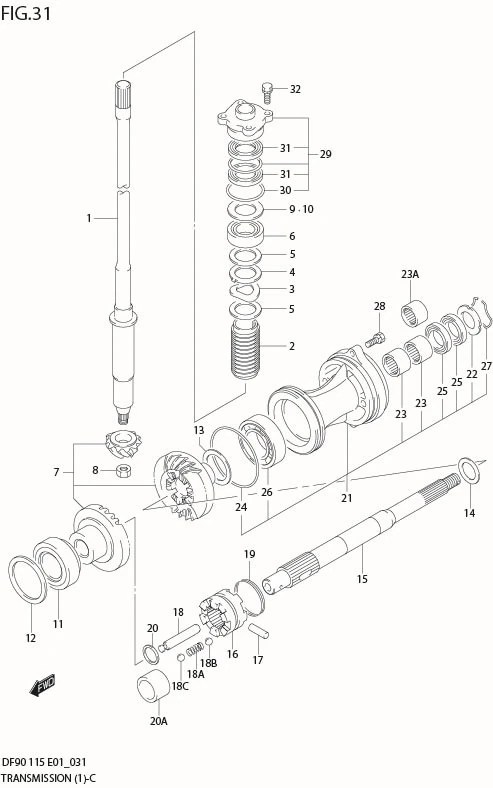

FIG 31 TRANSMISSION (DF90T

FIG 31 TRANSMISSION (DF90T
No No. Part Description Qty Price Per Pcs Remarks
1-2 57110-92J60-000
SUB: 57110-92J20-000		 SHAFT ASSY, DRIVE (L) 1 Rp4.259.500 MODEL:04%06
1-3 57110-92J60-000
SUB: 57110-92J41-000		 SHAFT ASSY, DRIVE (L) 1 Rp4.259.500 DF90:680686%
1-4 57110-90J30-000 SHAFT ASSY, DRIVE (X) 1 Rp6.179.000 ?57110-90J10
1-5 57110-92J30-000 SHAFT ASSY, DRIVE (X) 1 - MODEL:04%06
1-6 57110-92J70-000
SUB: 57110-92J51-000		 SHAFT ASSY, DRIVE (X) 1 Rp6.665.500 DF90:680686%
1-1 57110-90J20-000 SHAFT ASSY, DRIVE (L) 1 Rp4.954.500 ?57110-90J00
2 57133-90J02-000
SUB: 57133-90J01-000		 COLLAR, DRIVE SHAFT 1 Rp153.000
3 09164-31001-000 WASHER, WAVE 1 Rp43.000 MODEL:01%03
4 09169-31001-000 WASHER 1 Rp39.500 MODEL:01%03
5 09181-31001-000 WASHER 2 Rp40.000 MODEL:01%03
6 09265-25046-000
SUB: 09265-25040-000		 BEARING 1 Rp663.500
7-1 DISCONTINUE
SUB: 57300-90801-000		 PINION/GEAR SET 1 -
7-3 57300-90820-000 PINION/GEAR SET 1 Rp8.177.000 MODEL:07%
7-2 57300-90810-000 PINION/GEAR SET 1 Rp7.611.000 DF90:680686%
8 09140-14024-000 NUT 1 Rp23.000
9 57500-87873-000 SHIM SET, DRIVE SHAFT 1 Rp495.500
10-7 DISCONTINUE
SUB: 09181-40190-000		 ?SHIM (T:0.80) 1 -
10-14 09181-41014-000 ?SHIM (T:1.15) 1 Rp44.000
10-13 09181-41013-000 ?SHIM (T:1.10) 1 Rp44.000
10-12 09181-41012-000 ?SHIM (T:1.05) 1 Rp44.000
10-11 09181-40195-000 ?SHIM (T:1.00) 1 Rp35.000
10-10 09181-41010-000 ?SHIM (T:0.95) 1 Rp44.000
10-9 09181-41009-000 ?SHIM (T:0.90) 1 Rp44.000
10-8 09181-41008-000 ?SHIM (T:0.85) 1 Rp44.000
10-1 09181-40186-000 ?SHIM (T:0.50) 1 Rp32.000
10-2 DISCONTINUE
SUB: 09181-41002-000		 ?SHIM (T:0.55) 1 -
10-3 DISCONTINUE
SUB: 09181-41003-000		 ?SHIM (T:0.60) 1 -
10-4 09181-41004-000 ?SHIM (T:0.65) 1 Rp44.000
10-5 09181-41005-000 ?SHIM (T:0.70) 1 Rp44.000
10-6 09181-41006-000 ?SHIM (T:0.75) 1 Rp44.000
11 09265-50003-000 BEARING 1 Rp1.528.000 PART OF GEAR CASE
12-1 09181-50020-000 SHIM (T:0.45) 1 Rp31.500
12-2 09181-50021-000 SHIM (T:0.50) 1 Rp31.500
12-3 09181-50022-000 SHIM (T:0.55) 1 Rp31.500
12-4 09181-50023-000 SHIM (T:0.60) 1 Rp31.500
12-5 09181-50024-000 SHIM (T:0.65) 1 Rp31.500
12-6 DISCONTINUE
SUB: 09181-50025-000		 SHIM (T:0.70) 1 -
12-7 DISCONTINUE
SUB: 09181-50026-000		 SHIM (T:0.75) 1 -
12-8 DISCONTINUE
SUB: 09181-50027-000		 SHIM (T:0.80) 1 -
12-9 DISCONTINUE
SUB: 09181-50028-000		 SHIM (T:0.85) 1 -
12-10 DISCONTINUE
SUB: 09181-50029-000		 SHIM (T:0.90) 1 -
13-6 DISCONTINUE
SUB: 09181-45008-000		 SHIM (T:1.5) 1 -
13-5 DISCONTINUE
SUB: 09181-45007-000		 SHIM (T:1.4) 1 -
13-7 DISCONTINUE
SUB: 09181-45009-000		 SHIM (T:1.6) 1 -
13-2 09181-45004-000 SHIM (T:1.1) 1 Rp34.000
13-3 09181-45005-000 SHIM (T:1.2) 1 Rp34.000
13-4 DISCONTINUE
SUB: 09181-45006-000		 SHIM (T:1.3) 1 -
13-1 DISCONTINUE
SUB: 09181-45003-000		 SHIM (T:1.0) 1 -
14-1 09181-28015-000 SHIM (T:1.5) 1 Rp33.000
14-2 DISCONTINUE
SUB: 09181-28016-000		 SHIM (T:1.0) 1 -
14-3 DISCONTINUE
SUB: 09181-28017-000		 SHIM (T:1.2) 1 -
14-4 09181-28018-000 SHIM (T:1.3) 1 Rp33.000
14-5 09181-28019-000 SHIM (T:1.4) 1 Rp32.000
14-6 09181-28020-000 SHIM (T:1.6) 1 Rp33.000
15-1 57610-90J00-000 SHAFT ASSY, PROPELLER 1 Rp3.844.000
15-2 57610-90J10-000 SHAFT ASSY, PROPELLER 1 Rp4.197.000 DF90:252072%
15-3 57610-90J20-000 SHAFT ASSY, PROPELLER 1 Rp4.197.000 DF90:680686%
16-1 DISCONTINUE
SUB: 57621-90J00-000		 SHIFTER, CLUTCH DOG 1 -
16-2 DISCONTINUE
SUB: 57621-92J00-000		 SHIFTER, CLUTCH DOG 1 - DF90:252072%
16-3 57621-92J20-000
SUB: 57621-92J10-000		 SHIFTER, CLUTCH DOG 1 Rp1.162.000 DF90:680686%
17 09202-07002-000 PIN 1 Rp35.000
18C 06111-11004-000 BALL, DETENT NO.2 2 Rp12.500 DF90:680686%
18B 06111M07004-000
SUB: 06111-07004-000		 BALL, DETENT NO.1 2 Rp3.000 DF90:680686%
18-2 57631-92J10-000
SUB: 57631-92J00-000		 ROD, PUSH 1 Rp365.500 DF90:680686%
18-1 DISCONTINUE
SUB: 57631-87E00-000		 ROD, PUSH 1 -
18A 09440-09040-000 SPRING, DETENT 1 Rp26.500 DF90:680686%
19-1 09440-50002-000 SPRING 1 Rp14.500
19-2 09440-49004-000 SPRING 1 Rp21.500 DF90:252072%
20 09181-25030-000 SHIM (25X32X3.0) 1 Rp38.000 DF90:%252071
20A 57616-90J00-000 SPACER 1 Rp214.000 DF90:252072%
21 56120-90J02-0EP HOUSING, PROP SFT BRG (BLACK) 1 Rp3.699.500 ?56120-90J01-0EP
22 56123-90J00-000 ?WASHER, OIL SEAL PROTECTOR 1 Rp71.500
23A 09263-28047-000
SUB: 09263-28033-000		 ?BEARING 1 Rp482.000 DF90:252072%
23 DISCONTINUE
SUB: 09263-28013-000		 ?BEARING 2 - DF90:%252071
24 09280-97001-000 ?O RING (D:3.5,ID:95) 1 Rp28.000
25 09282-28002-000 ?OIL SEAL 2 Rp49.000
26-1 09262-45013-000 ?BEARING 1 Rp407.000 FOR 56120-90J00-0EP
26-2 08113-62090-000 ?BEARING 1 Rp434.500 DF90:251118%
27 DISCONTINUE
SUB: 09387-52001-000		 ?RING 1 -
28 09117-08047-000 BOLT (8X30) 2 Rp44.500
29 56130-90J00-000 HOUSING 1 Rp657.500
30 09280-46004-000 ?O RING (D:3.5,ID:45.7) 1 Rp21.000
31 09282-24004-000 ?OIL SEAL 2 Rp43.000
32 09117-08110-000
SUB: 09117-08057-000		 BOLT (8X25) 4 Rp33.000
