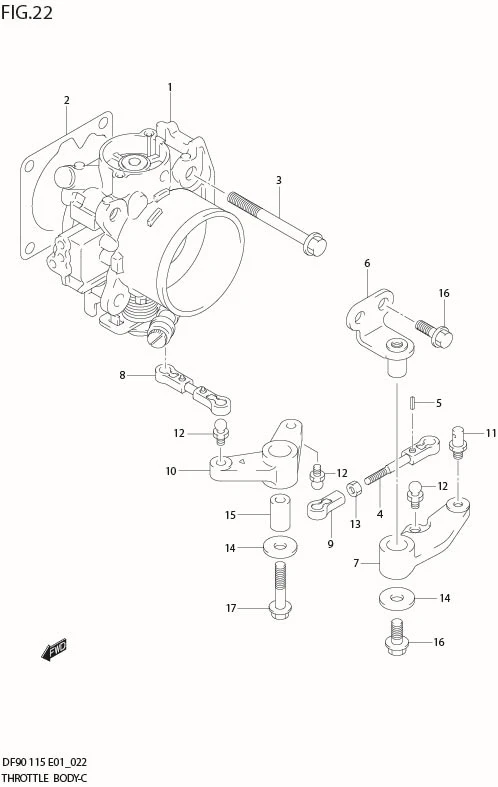

FIG 22 THROTTLE BODY

FIG 22 THROTTLE BODY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13300-90J00-000	BODY ASSY, THROTTLE	1	Rp8.738.500
2	13421-90J02-000 SUB: 13421-90J00-000	GASKET, THROTTLE BODY	1	Rp32.500
3-1	01550-08607-000	BOLT, THROTTLE BODY	4	Rp38.000
3-2	DISCONTINUE SUB: 01550-08557-000	BOLT	4	-	DF90:251957%
4	13510-90J00-000	ROD, THROTTLE	1	Rp121.000
5	09205-02006-000	?PIN, SPRING	1	Rp11.000
6	19115-90J00-000	HOLDER, THROTTLE LEVER	1	Rp163.000
7	19121-90J00-000	LEVER, THROTTLE NO.1	1	Rp109.000
8-2	19130-90J10-000	ROD, THROTTLE NO.2	1	Rp59.500	DF90:680686%
8-1	19130-90J00-000	ROD, THROTTLE NO.2	1	-
9	19131-95502-000	CONNECTOR, THROTTLE ROD	1	Rp39.000
10	19148-90J00-000	LEVER, THROTTLE	1	Rp68.500
11	67473-89J00-000	PIN, REMOCON CONNECTOR	1	Rp66.500
12	09119-05010-000	PIVOT, THROTTLE LEVER	3	Rp40.500
13	09140-05005-000	NUT, THROTTLE ROD	1	Rp20.000
14	09160-06046-000	WASHER (6.5X20X1.5)	2	Rp12.500
15	09180-06186-000	SPACER, THROTTLE LEVER NO.2	1	Rp41.500
16	01550-06167-000	BOLT, THROTTLE LEVER & HOLDER	3	Rp16.500
17	01550-06357-000	BOLT, THROTTLE LEVER NO.2	1	Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
