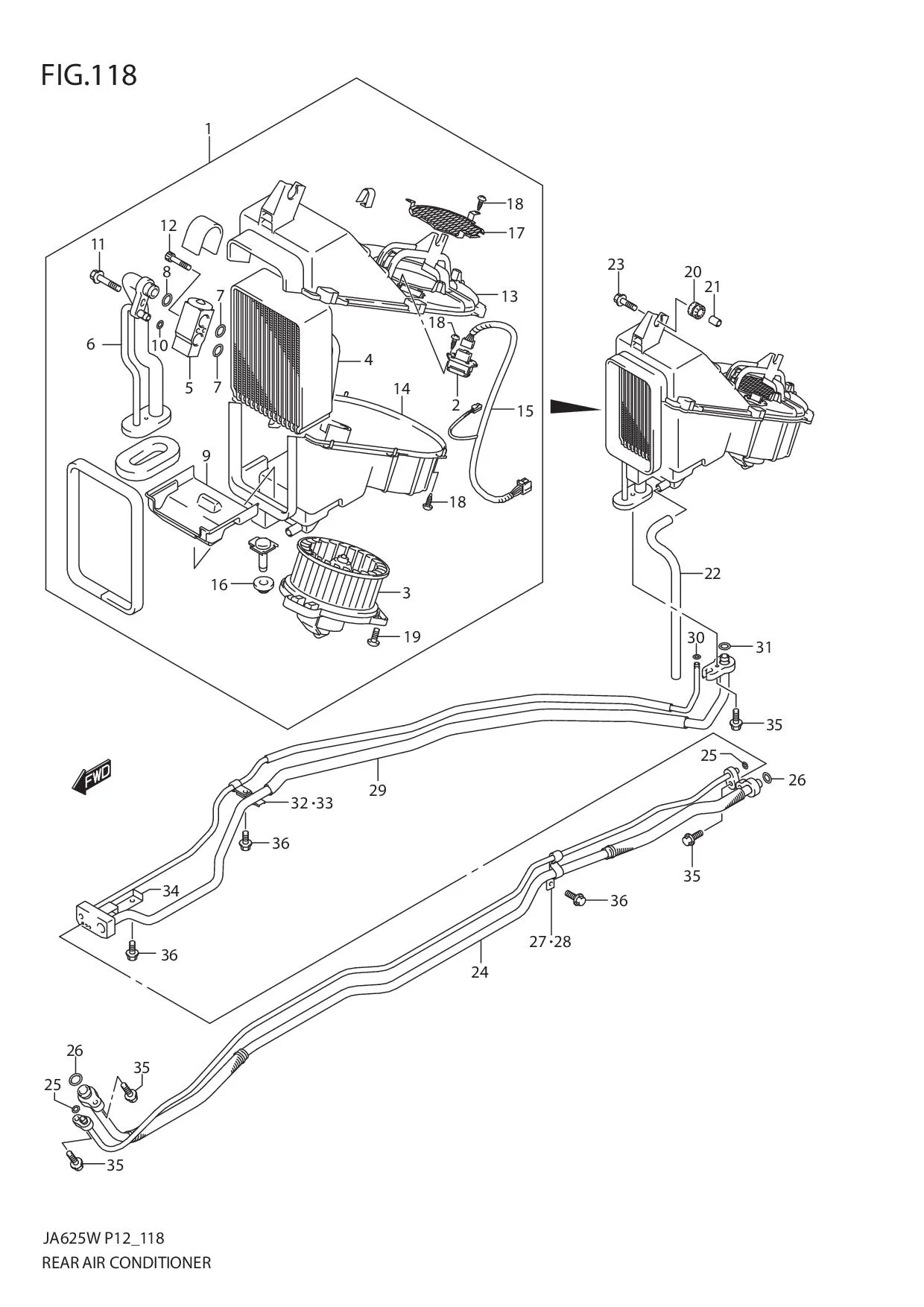

FIG.118 REAR AIR CONDITIONER

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 95400B54J00N000	COOLING ASSY, REAR	1	-
2	DISCONTINUE SUB: 74140B66D00N000	•RESISTOR, BLOWER MOTOR	1	-
3	DISCONTINUE SUB: 74250B60G00N000	•MOTOR	1	-
4	DISCONTINUE SUB: 95410B54J20N000	•EVAPORATOR ASSY	1	-
5	DISCONTINUE SUB: 95431B54J20N000	•VALVE, EXPANSION	1	-
6	DISCONTINUE SUB: 95432B54J20N000	•PIPE ASSY	1	-
7	DISCONTINUE SUB: 95891B54J00N000	•O RING	2	-
8	DISCONTINUE SUB: 95896B54J00N000	•O RING	1	-
9	DISCONTINUE SUB: 95462B54J20N000	•LINING	1	-
10	DISCONTINUE SUB: 95897B54J00N000	•O RING	1	-
11	DISCONTINUE SUB: 01550B06253N000	•BOLT	1	-
12	07130-0535B-000	•BOLT	2	-
13	DISCONTINUE SUB: 95421B66D00N000	•CASE, EVAPO UPPER	1	-
14	DISCONTINUE SUB: 95422B66D00N000	•CASE, EVAPO LOWER	1	-
15	DISCONTINUE SUB: 95537B54J00N000	•WIRE, HARNESS	1	-
16	DISCONTINUE SUB: 95851B66D00N000	•CUSHION	1	-
17	DISCONTINUE SUB: 95861B66D00N000	•FILTER	1	-
18	02112-0512A-000 SUB: 02112B05123N000	•SCREW	14	Rp2.500
19	02142-0516B-000 SUB: 02142B05163N000	•SCREW	3	Rp4.000
20	13877-65D00-000	ISOLATOR	2	Rp45.000
21	13878-65D00-000	COLLAR	2	Rp43.000
22	DISCONTINUE SUB: 95481B66D00N000	HOSE, DRAIN	1	-
23	09116-06171-000 SUB: 09116-06129-000	BOLT	2	Rp20.500
24	DISCONTINUE SUB: 95733B54J00N000	PIPE, LIQUID NO.2	1	-
25	DISCONTINUE SUB: 95891B54J00N000	•O RING	1	-
26	DISCONTINUE SUB: 95896B54J00N000	•O RING	1	-
27	DISCONTINUE SUB: 95772B54J00N000	•CLIP	1	-
28	DISCONTINUE SUB: 95773B54J00N000	•CLIP	1	-
29	DISCONTINUE SUB: 95734B54J00N000	PIPE, LIQUID NO.3	1	-
30	DISCONTINUE SUB: 95891B54J00N000	•O RING	1	-
31	DISCONTINUE SUB: 95896B54J00N000	•O RING	1	-
32	DISCONTINUE SUB: 95775B54J00N000	•CLIP	1	-
33	DISCONTINUE SUB: 95776B54J00N000	•CLIP	1	-
34	DISCONTINUE SUB: 95774B54J00N000	•BRACKET	1	-
35	01550-0620B-000 SUB: 01550-06203L000	BOLT	5	Rp3.500
36	02162-0616A-000 SUB: 02162-06163L000	BOLT	5	Rp3.000
