GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAMEFIG.77 BODY MOUNTINGFIG.78 FRONT HOOD PANELFIG.79 FRONT FENDERFIG.80 FRONT BODY PANELFIG.81 FLOOR PANELFIG.82 SIDE BODY PANELFIG.83 ROOF PANELFIG.84 FRONT BUMPERFIG.85 REAR BUMPERFIG.86 INSTRUMENT PANELFIG.87 VENTILATORFIG.88 REAR AIR CON LOUVERFIG.89 HEATERFIG.90 HEATER BLOWERFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 CAP/OVERFIG.95 FUEL LID OPENERFIG.96 ROOF LININGFIG.97 EMBLEMFIG.98 GARNISHFIG.99 SPLASH GUARDFIG.100 TIRE CARRIERFIG.101 WINDOW GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR PANELFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 2ND SEATFIG.114 3RD SEATFIG.115 FUEL TANKFIG.116 JACK/TOOLFIG.117 FRONT AIR CONDITIONERFIG.118 REAR AIR CONDITIONERFIG.119 AIR CONDITIONER HARNESS

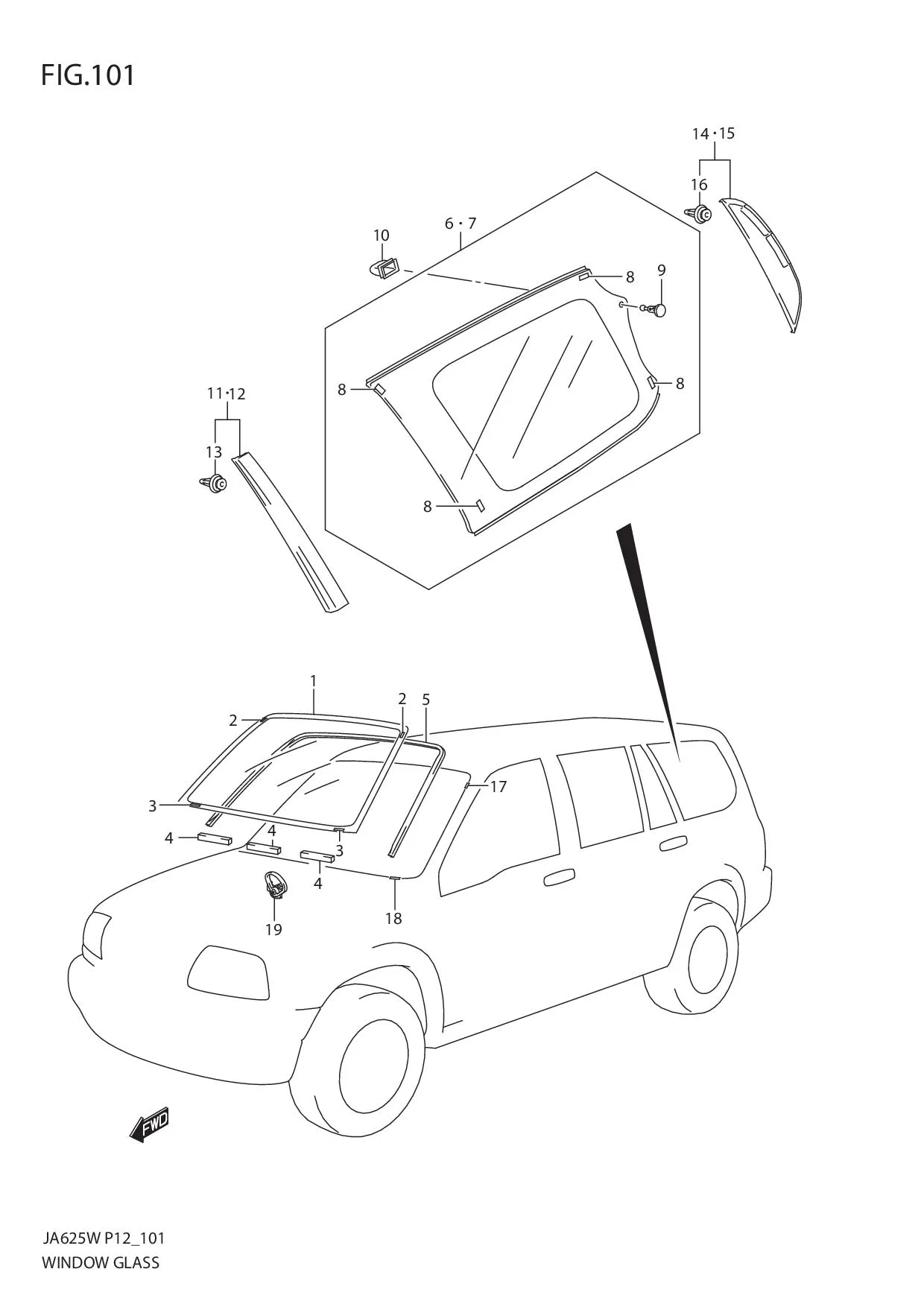

FIG.101 WINDOW GLASS

FIG.101 WINDOW GLASS
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84510-65D00L000		 GLASS, WINDSHIELD 1 -
2 84572-74G00-000 •MALE, GLASS FASTENER NO.1 2 Rp42.500
3 84513-65D00-000 •MALE, GLASS FASTENER NO.2 2 Rp44.500
4 84617-81A00-000 •SPACER 3 Rp77.000 L:300!150
5 84611-65D00-5PK MOLDING, WINDSHIELD (BLACK) 1 Rp1.054.500
6 DISCONTINUE
SUB: 84560B52D01N000		 GLASS, QTR WINDOW RH 1 -
7 DISCONTINUE
SUB: 84570B52D01N000		 GLASS, QTR WINDOW LH 1 -
8-1 DISCONTINUE
SUB: 84562-52D00-000		 •SPACER, QTR WINDOW RH 3 -
8-2 DISCONTINUE
SUB: 84562-52D00-000		 •SPACER, QTR WINDOW LH 4 -
9 DISCONTINUE
SUB: 84589-76G00-000		 •CLIP, QTR WINDOW RR NO.2 2 -
10 DISCONTINUE
SUB: 84588-76G00-000		 CLIP, QTR WINDOW RR NO.1 2 -
11 DISCONTINUE
SUB: 77130-52D00-0CE		 GARNISH, RR QTR WINDOW RH (BLACK) 1 -
12 77140-52D00-0CE GARNISH, RR QTR WINDOW LH (BLACK) 1 Rp585.000
13 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 6 Rp9.000
14 77110-52D00-0CE GARNISH, AIR OUTLET RH (BLACK) 1 Rp571.000
15 77120-52D00-0CE GARNISH, AIR OUTLET LH (BLACK) 1 Rp563.500
16 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 6 Rp9.000
17 84514-65D00-000 FEMALE, GLASS FASTENER NO.1 2 Rp41.000
18 84515-65D00-000 FEMALE, GLASS FASTENER NO.2 2 Rp45.500
19 84618-62A00-000 STOPPER, WINDSHIELD 2 Rp57.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
