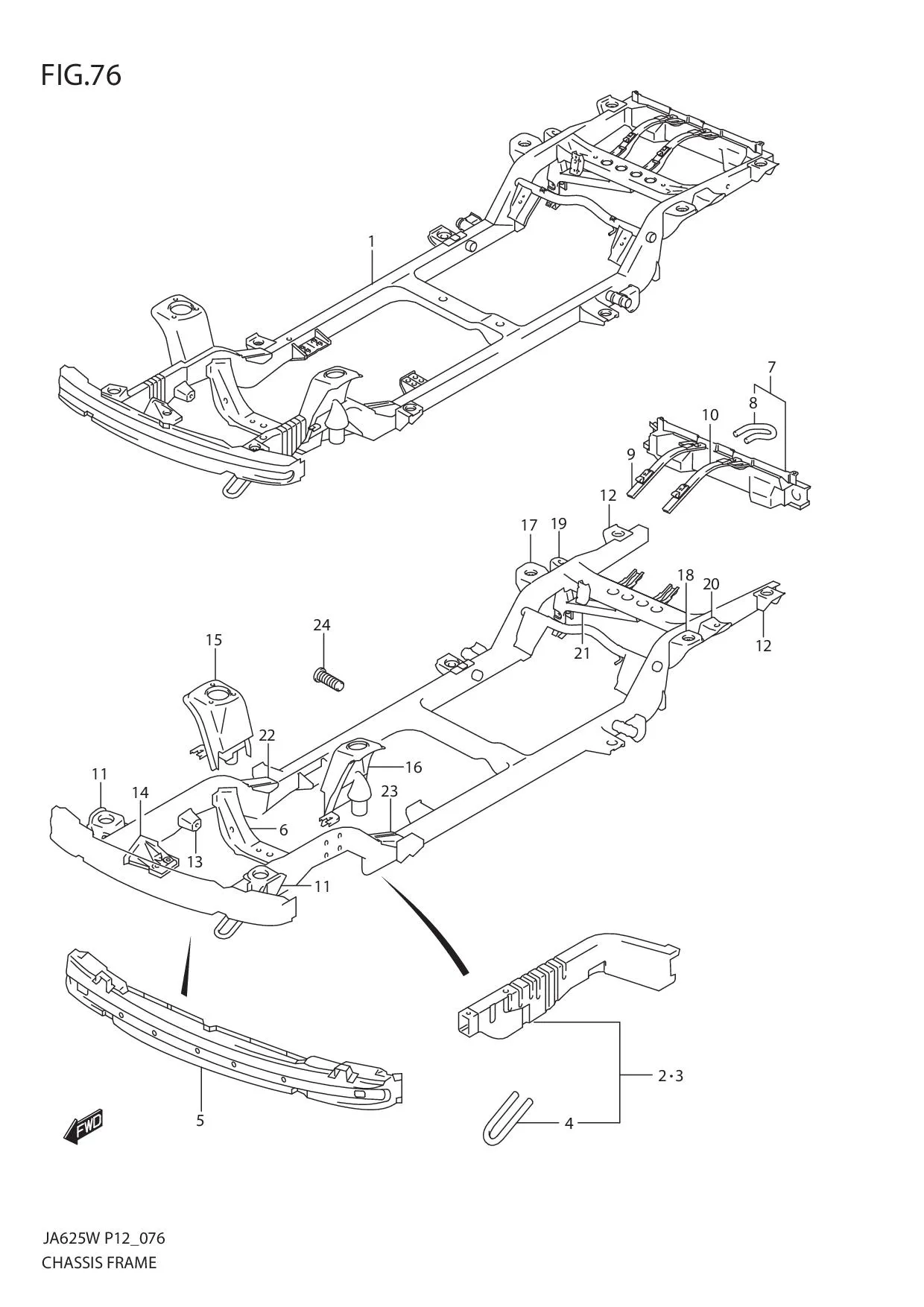

FIG.76 CHASSIS FRAME

FIG.76 CHASSIS FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 57000-52D21-000 FRAME ASSY 1 -
2 DISCONTINUE
SUB: 57110-52DV0-000		 •MEMBER, SIDE FRAME FR RH 1 -
3 DISCONTINUE
SUB: 57160-52DV0-000		 •MEMBER, SIDE FRAME FR LH 1 -
4 DISCONTINUE
SUB: 57164-52D00-000		 ••HOOK, FR TOWING 1 -
5 DISCONTINUE
SUB: 57210-65DV1-000		 •MEMBER, FR BUMPER 1 -
6 DISCONTINUE
SUB: 57220-52D00-000		 •CROSSMEMBER, 2ND 1 -
7 DISCONTINUE
SUB: 57260-52D00-000		 •CROSSMEMBER, TAIL 1 -
8 DISCONTINUE
SUB: 57263-52D00-000		 ••HOOK, RR TOWING 1 -
9 DISCONTINUE
SUB: 57270-52D10-000		 •MEMBER, RR FRAME CENTER RH 1 -
10 DISCONTINUE
SUB: 57280-52D10-000		 •MEMBER, RR FRAME CENTER LH 1 -
11 DISCONTINUE
SUB: 57310-65D00-000		 •BRACKET, 1ST MOUNTING 2 -
12 DISCONTINUE
SUB: 57371-65D00-000		 •BRACKET, 4TH MOUNTING 2 -
13 DISCONTINUE
SUB: 57410-65D00-000		 •BRACKET, FR DIFF MOUNTING 2 -
14 DISCONTINUE
SUB: 57710-65D10-000		 •BRACKET, FR SPNSN FRAME 2 -
15 DISCONTINUE
SUB: 57730-52D00-000		 •BRACKET, FR STRUT RH 1 -
16 DISCONTINUE
SUB: 57740-52D00-000		 •BRACKET, FR STRUT LH 1 -
17 DISCONTINUE
SUB: 57810-52D00-000		 •BRACKET, RR COIL SPRING RH 1 -
18 DISCONTINUE
SUB: 57820-52D00-000		 •BRACKET, RR COIL SPRING LH 1 -
19 DISCONTINUE
SUB: 57830-52D00-000		 •BRACKET, RR SHOCK ABSORBER RH 1 -
20 DISCONTINUE
SUB: 57840-52D00-000		 •BRACKET, RR SHOCK ABSORBER LH 1 -
21 DISCONTINUE
SUB: 57870-52D00-000		 •BRACKET, LATERAL ROD 1 -
22 DISCONTINUE
SUB: 57881-52D00-000		 •GUSSET, SIDE FRAME FR END RH 1 -
23 DISCONTINUE
SUB: 57891-52D00-000		 •GUSSET, SIDE FRAME FR END LH 1 -
24 09119-05018-000 •BOLT, STUD 13 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
