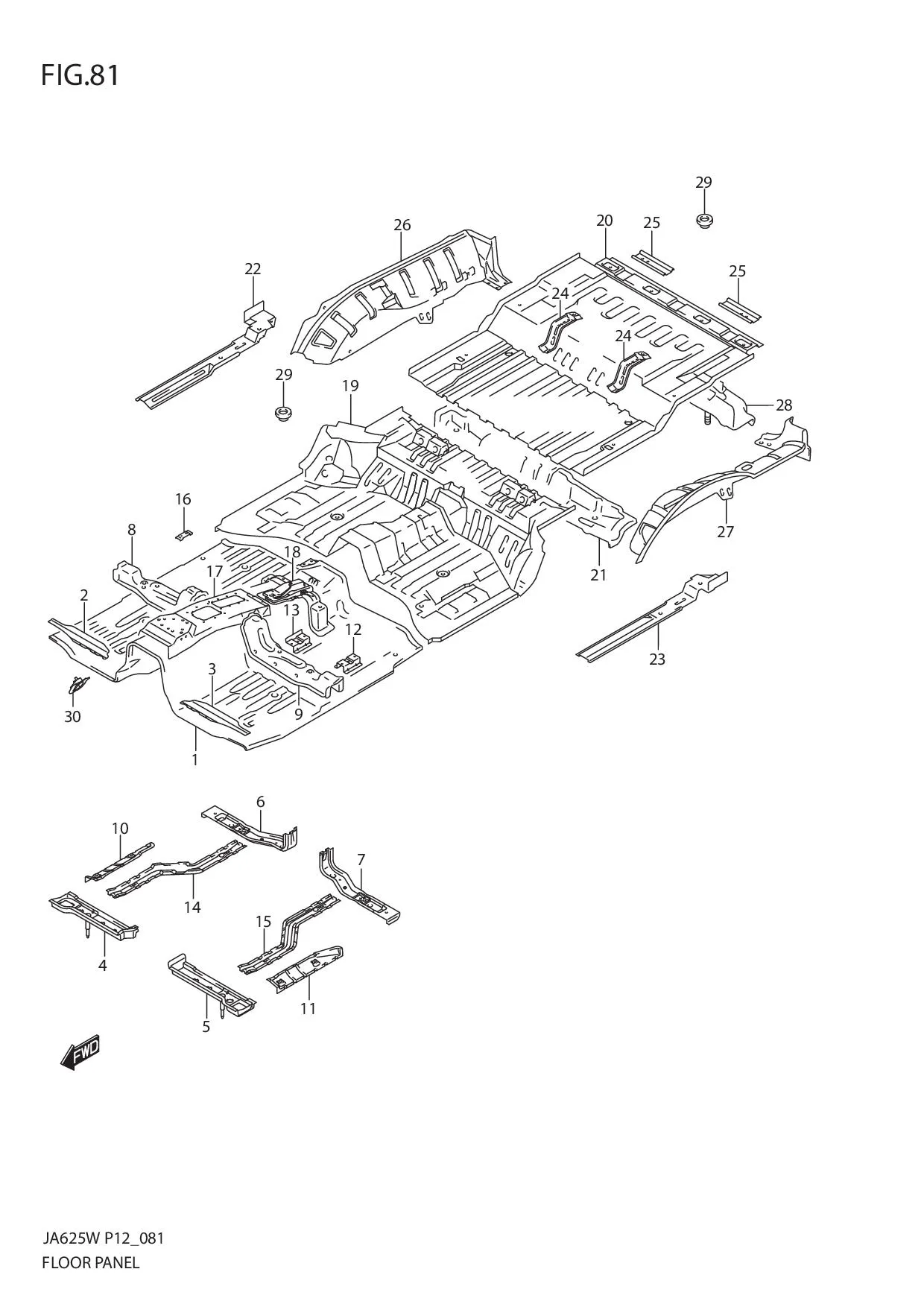

FIG.81 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 61411-65D20-000	PANEL, MAIN FLOOR	1	-
2	DISCONTINUE SUB: 61415-52D00-000	REINF, MAIN FLOOR FRONT RH	1	-
3	DISCONTINUE SUB: 61515-52D00-000	REINF, MAIN FLOOR FRONT LH	1	-
4	DISCONTINUE SUB: 61420-65D20-000	MEMBER, FRONT FLOOR NO.1 RH	1	-
5	DISCONTINUE SUB: 61520-65D30-000	MEMBER, FRONT FLOOR NO.1 LH	1	-
6	DISCONTINUE SUB: 61430-52D00-000	MEMBER, FRONT FLOOR NO.2 RH	1	-
7	DISCONTINUE SUB: 61530-52D10-000	MEMBER, FRONT FLOOR NO.2 LH	1	-
8	DISCONTINUE SUB: 61441-65D10-000	MEMBER, FRONT SEAT RH	1	-
9	DISCONTINUE SUB: 61541-65D10-000	MEMBER, FRONT SEAT LH	1	-
10	DISCONTINUE SUB: 61461-52D00-000	REINF, FRONT FLOOR SIDE RH	1	-
11	DISCONTINUE SUB: 61561-52D00-000	REINF, FRONT FLOOR SIDE LH	1	-
12	DISCONTINUE SUB: 61462-65D00-000	BRACKET, SUB WOOFER OUTER	1	-
13	DISCONTINUE SUB: 61463-65D00-000	BRACKET, SUB WOOFER INNER	1	-
14	DISCONTINUE SUB: 61471-52D00-000	MEMBER, FRONT FLOOR NO.3 RH	1	-
15	DISCONTINUE SUB: 61571-52D00-000	MEMBER, FRONT FLOOR NO.3 LH	1	-
16	DISCONTINUE SUB: 61476-52D00-000	BRACKET, 2ND SEAT OUTER	2	-
17	DISCONTINUE SUB: 61610-65D10-000	REINF, FLOOR TUNNEL	1	-
18	DISCONTINUE SUB: 61630-52D10-000	BRACKET, PARKING BRAKE	1	-
19	DISCONTINUE SUB: 61700-52D40-000	PANEL ASSY, CENTER FLOOR	1	-
20	DISCONTINUE SUB: 62111-66D20-000	PANEL, REAR FLOOR	1	-
21	DISCONTINUE SUB: 62120-52D00-000	MEMBER, RR FLOOR	1	-
22	DISCONTINUE SUB: 62131-52D00-000	REINF, RR SEAT BELT SIDE RH	1	-
23	DISCONTINUE SUB: 62132-52D00-000	REINF, RR SEAT BELT SIDE LH	1	-
24	DISCONTINUE SUB: 62161-52D00-000	BRACKET, 3RD SEAT	2	-
25	DISCONTINUE SUB: 62171-52D00-000	BRACKET, LUGGAGE BOX	2	-
26	DISCONTINUE SUB: 62210-52D01-000	PANEL, RR WHEEL HSG INNER RH	1	-
27	DISCONTINUE SUB: 62310-52D01-000	PANEL, RR WHEEL HSG INNER LH	1	-
28	DISCONTINUE SUB: 62510-65D11-000	MEMBER, RR FLOOR TAIL	1	-
29	DISCONTINUE SUB: 65971-77E10-000	CAP, RR FLOOR	4	-
30	DISCONTINUE SUB: 61651-65D10-000	BRACKET, FOOT REST PEDAL	1	-
