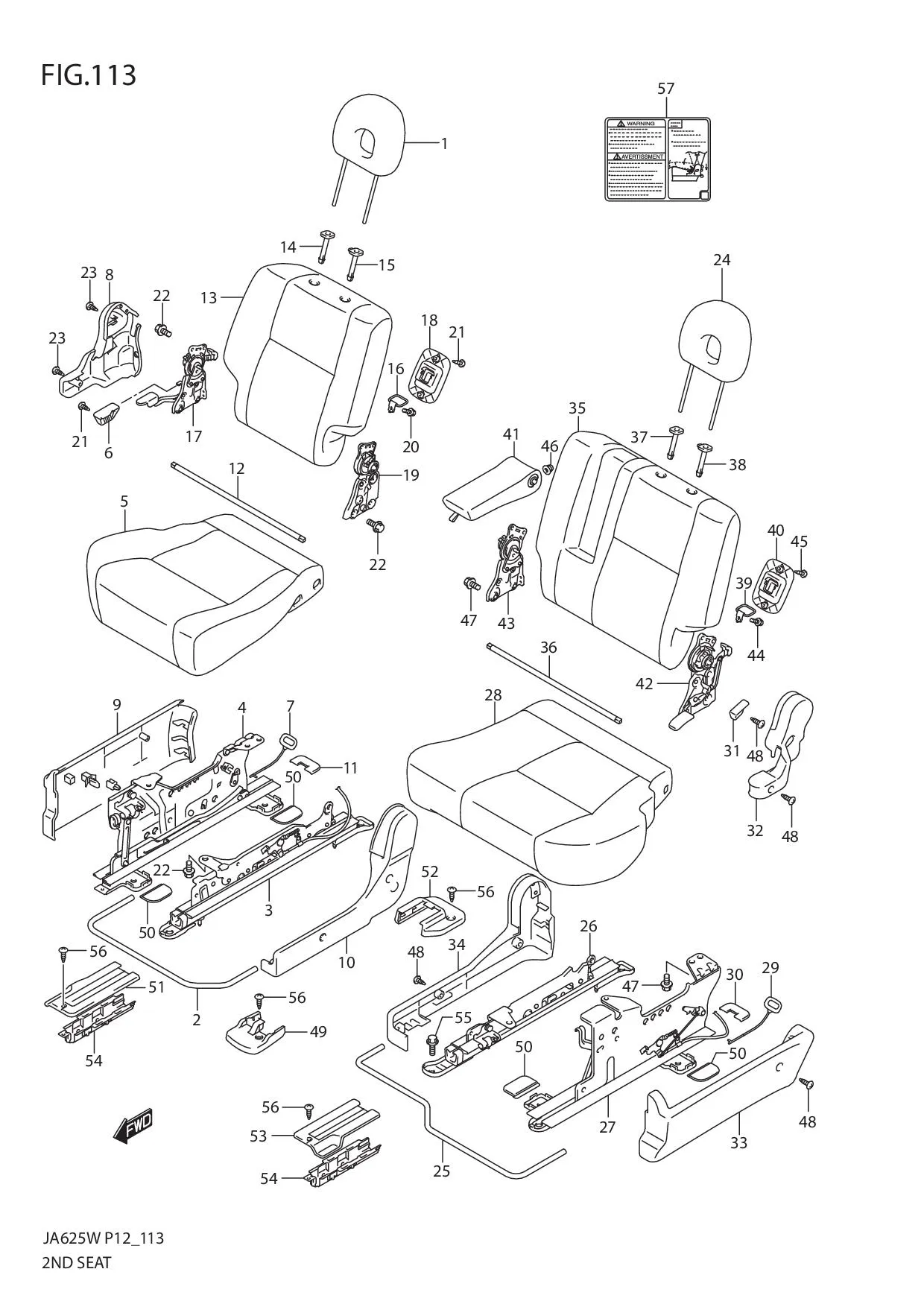

FIG.113 2ND SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 86401B82DN0N000	HEADRESTRAINT ASSY (BEIGE)	1	-
2	DISCONTINUE SUB: 86781-52DA0-000	HANDLE, 2ND ADJUSTER RH	1	-
3	DISCONTINUE SUB: 86810-52DA1-000	ADJUSTER, 2ND INSIDE RH	1	-
4	DISCONTINUE SUB: 86830-52DG0-R8H	ADJUSTER, OUTSIDE RH (BEIGE)	1	-
5	DISCONTINUE SUB: 87101B54JA0NKK4	CUSHION ASSY, 2ND RH	1	-
6	87213-52DA1-R8H	KNOB, RECLINING STOPPER RH (BEIGE)	1	Rp48.000
7	87214-52DA0-R8H	HANDLE, 2ND WALK IN (BEIGE)	1	-
8	DISCONTINUE SUB: 87221-52DA0-R8H	COVER, OUTSIDE RH (BEIGE)	1	-
9	DISCONTINUE SUB: 87223-52DA0-R8H	COVER, OUTSIDE LOWER RH (BEIGE	1	-
10	DISCONTINUE SUB: 87241-52DA0-R8H	COVER, INSIDE RH (BEIGE)	1	-
11	DISCONTINUE SUB: 87496-52DA0-R8H	COVER, ADJUSTER OUTSIDE (BEIGE	1	-
12	DISCONTINUE SUB: 87250-52DA0-000	ROD, 2ND RH	1	-
13	DISCONTINUE SUB: 87301B54JA0NKK4	BACK ASSY, 2ND RH	1	-
14	DISCONTINUE SUB: 85341-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
15	DISCONTINUE SUB: 85840-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
16	DISCONTINUE SUB: 75480-65D30-000	HOOK, TETHER ANCHOR	1	-
17	DISCONTINUE SUB: 87210-52DA0-R8H	RECLINING, OUTSIDE RH (BEIGE)	1	-
18	DISCONTINUE SUB: 87225-52DA0-R8H	COVER, TETHER ANCHOR (BEIGE)	1	-
19	DISCONTINUE SUB: 87230-52DA0-T01	RECLINING, INSIDE RH (BEIGE)	1	-
20	DISCONTINUE SUB: 09103-08242-000	BOLT, ANCHOR HOOK (8X20)	1	-
21	03242-0510B-000 SUB: 03242-05103-000	SCREW	2	Rp18.000
22	01550-1020A-000 SUB: 01550-10203-000	BOLT	17	Rp22.000
23	03242-0510B-000 SUB: 03242-05103-000	SCREW	6	Rp18.000
24	DISCONTINUE SUB: 86401B50JG0N000	HEADRESTRAINT ASSY (BEIGE)	1	-
25	DISCONTINUE SUB: 86791-52DA0-000	HANDLE, ADJUSTER LH	1	-
26	DISCONTINUE SUB: 86860-52DA1-000	ADJUSTER, INSIDE LH	1	-
27	DISCONTINUE SUB: 86880-52DA1-R8H	ADJUSTER, OUTSIDE LH (BEIGE)	1	-
28	DISCONTINUE SUB: 87102B54JA0NKK4	CUSHION ASSY, 2ND LH	1	-
29	87214-52DA0-R8H	HANDLE, WALK IN (BEIGE)	1	-
30	DISCONTINUE SUB: 87496-52DA0-R8H	COVER, ADJUSTER OUTSIDE (BEIGE)	1	-
31	DISCONTINUE SUB: 87713-52DA1-R8H	KNOB, RECLINING STOPPER LH (BEIGE)	1	-
32	DISCONTINUE SUB: 87721-52DA0-R8H	COVER, OUTSIDE LH (BEIGE)	1	-
33	DISCONTINUE SUB: 87723-52DA0-R8H	COVER, OUTSIDE LOWER LH (BEIGE)	1	-
34	DISCONTINUE SUB: 87741-52DA0-R8H	COVER, INSIDE LH (BEIGE)	1	-
35	DISCONTINUE SUB: 87302B54JA0NKK4	BACK ASSY, 2ND LH	1	-
36	DISCONTINUE SUB: 87750-52DA0-000	ROD, 2ND LH	1	-
37	DISCONTINUE SUB: 85341-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
38	DISCONTINUE SUB: 85840-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
39	DISCONTINUE SUB: 75480-65D30-000	HOOK, TETHER ANCHOR	1	-
40	DISCONTINUE SUB: 87225-52DA0-R8H	COVER, TETHER ANCHOR (BEIGE)	2	-
41	DISCONTINUE SUB: 87501-52DG0-R9G	ARMREST ASSY, 2ND (BEIGE)	1	-
42	DISCONTINUE SUB: 87710-52DA0-R8H	RECLINING, 2ND OUTSIDE LH (BEIGE)	1	-
43	DISCONTINUE SUB: 87730-52DA0-T01	RECLINING, 2ND INSIDE LH (GRAY)	1	-
44	DISCONTINUE SUB: 09103-08242-000	BOLT, ANCHOR HOOK (8X20)	1	-
45	03242-0510B-000 SUB: 03242-05103-000	SCREW	4	Rp18.000
46	DISCONTINUE SUB: 08313-2008B-000	NUT	2	-
47	01550-1020A-000 SUB: 01550-10203-000	BOLT	17	Rp22.000
48	03242-0510B-000 SUB: 03242-05103-000	SCREW	6	Rp18.000
49	DISCONTINUE SUB: 87491-52DA0-R8H	COVER, 2ND ADJUSTER INSIDE FR (BEIGE)	1	-
50	DISCONTINUE SUB: 87492-52DA0-R8H	COVER, 2ND ADJUSTER OUTSIDE (BEIGE)	5	-
51	DISCONTINUE SUB: 87493-52DA1-R8H	COVER, ADJUSTER EXTENSION RH (BEIGE)	1	-
52	DISCONTINUE SUB: 87495-52DA0-R8H	COVER, 2ND ADJUSTER INSIDE RR (BEIGE)	1	-
53	DISCONTINUE SUB: 87993-52DA1-R8H	COVER, ADJUSTER EXTENSION LH (BEIGE)	1	-
54	DISCONTINUE SUB: 87494-52DA0-000	BRACKET, ADJUSTER EXTENSION	2	-
55	01551-1025A-000 SUB: 01551-10253-000	BOLT	10	Rp29.000
56	03242-0510B-000 SUB: 03242-05103-000	SCREW	8	Rp18.000
57	86720-52DD0-000	LABEL, SEAT WARNING	1	-
