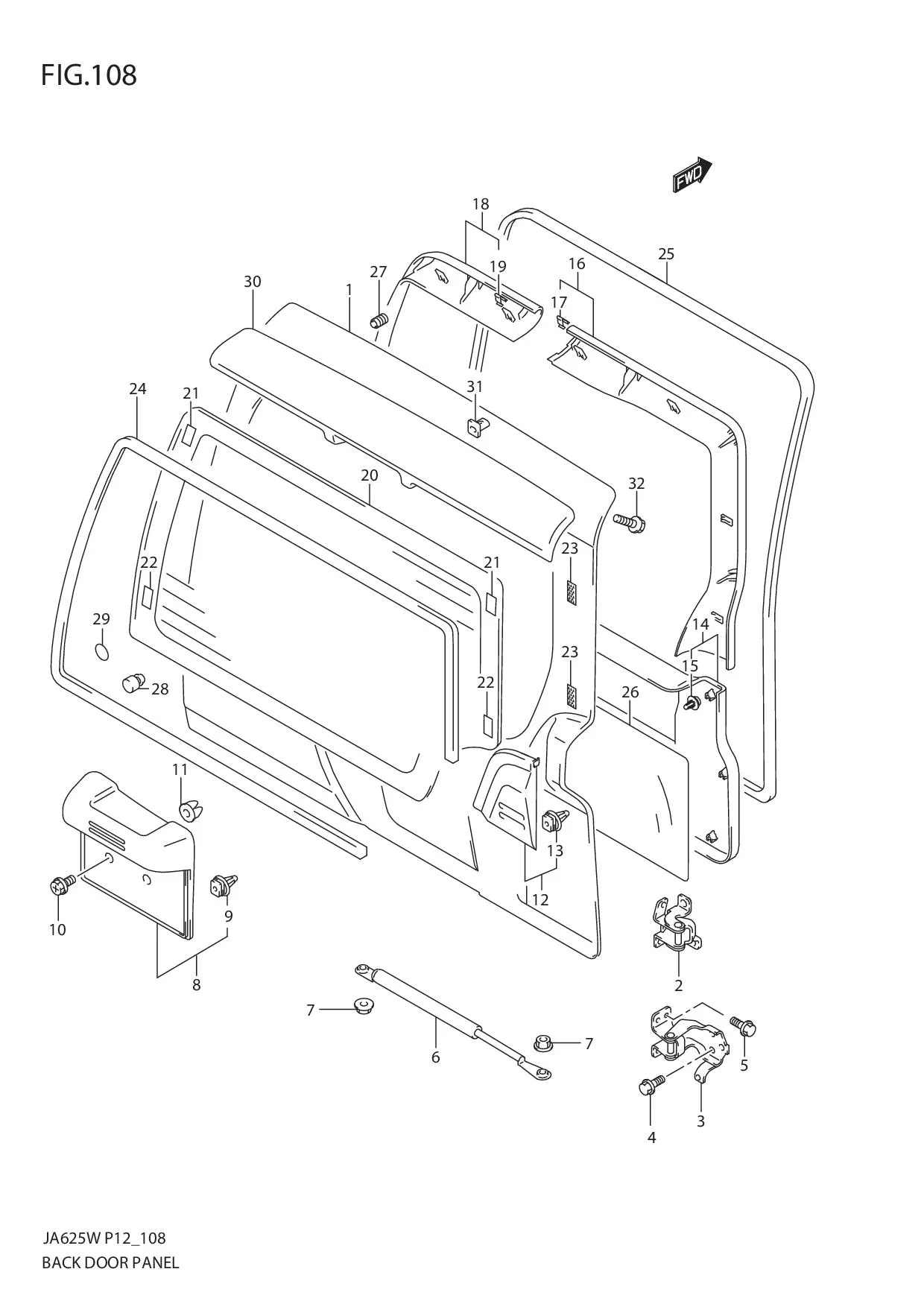

FIG.108 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 69100-52821-000	PANEL ASSY, BACK DOOR	1	-
2	DISCONTINUE SUB: 69510-65D00-000	HINGE, DOOR UPPER	1	-
3	DISCONTINUE SUB: 69520-65D10-000	HINGE, DOOR LOWER	1	-
4	01551-0825A-000 SUB: 01551-08253-000	BOLT, PILLAR	6	Rp16.000
5	01551-0825A-000 SUB: 01551-08253-000	BOLT, DOOR	6	Rp16.000
6	81851-65D00-000	UNIT, BACK DOOR BALANCER	1	Rp1.125.000
7	09159-06076-000	NUT	2	Rp19.500
8	83930-65D01-5PK	GARNISH, RR LICENSE PLATE (BLACK)	1	Rp1.147.000
9	83942-61A02-000	•CLIP, GARNISH	3	Rp25.500
10	09132-06006-000	SCREW (6X12)	2	Rp18.000
11	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
12	83940-65D10-5PK	COVER, DOOR HINGE (BLACK)	1	Rp273.000
13	83942-65D00-000	•CLIP, GARNISH	2	Rp34.500
14	DISCONTINUE SUB: 83770-65D00-R8H	TRIM, BACK DOOR (BEIGE)	1	-
15	83714M62B00-000 SUB: 09409M08320-000	•CLIP	12	Rp14.500
16	DISCONTINUE SUB: 83780-65D00-R8H	TRIM, BACK DR UPPER RH (BEIGE)	1	-
17	09409-10308-000 SUB: 09409B10308N000	•CLIP	4	Rp6.500
18	DISCONTINUE SUB: 83790-65D00-R8H	TRIM, BACK DR UPPER LH (BEIGE)	1	-
19	09409-10308-000 SUB: 09409B10308N000	•CLIP	4	Rp6.500
20	DISCONTINUE SUB: 84580-65D00L000	GLASS, BACK DR WINDOW	1	-
21	DISCONTINUE SUB: 84512-65D00-000	•MALE, GLASS FASTENER NO.1	2	-
22	84513-65D00-000	•MALE, GLASS FASTENER NO.2	2	Rp44.500
23	84515-65D00-000	FEMALE, GLASS FASTENER	4	Rp45.500
24	84623-65D00-5PK	MOLDING, BACK DR WINDOW (BLACK	1	Rp1.355.500
25	84681-65D00-5PK	WEATHERSTRIP, BACK DOOR OPNG (BLACK)	1	Rp1.170.000
26	83911-60X52-000 SUB: 83911-60X51-000	COVER, DOOR SEALING (600X1200)	1	Rp111.000	CUT AS REQUIRED
27	82683M60B00-000 SUB: 76683-70C00-000	CUSHION	1	Rp8.500
28	DISCONTINUE SUB: 76684-65D00-000	STOPPER	1	-
29	DISCONTINUE SUB: 77191M76F00-000	FILM, BACK DOOR	1	-
30-1	83980-65D00-ZA3	SPOILER, BACK DOOR (WINE)	1	-
30-7	83980-65D00-Z2U	SPOILER, BACK DOOR (BLUE)	1	-
30-6	83980-65D00-Z2T	SPOILER, BACK DOOR (GREEN)	1	-
30-5	83980-65D00-Z2S	SPOILER, BACK DOOR (SILVER)	1	-
30-4	DISCONTINUE SUB: 83980-65D00-ZJ3	SPOILER, BACK DOOR (BLACK)	1	-
30-3	83980-65D00-ZA5	SPOILER, BACK DOOR (WHITE)	1	-
30-2	83980-65D00-ZA4	SPOILER, BACK DOOR (BEIGE)	1	-
31	09410-00076-000	CLIP, SPOILER	3	Rp16.000
32	DISCONTINUE SUB: 01560-0616A-000	BOLT, SPOILER	2	-
