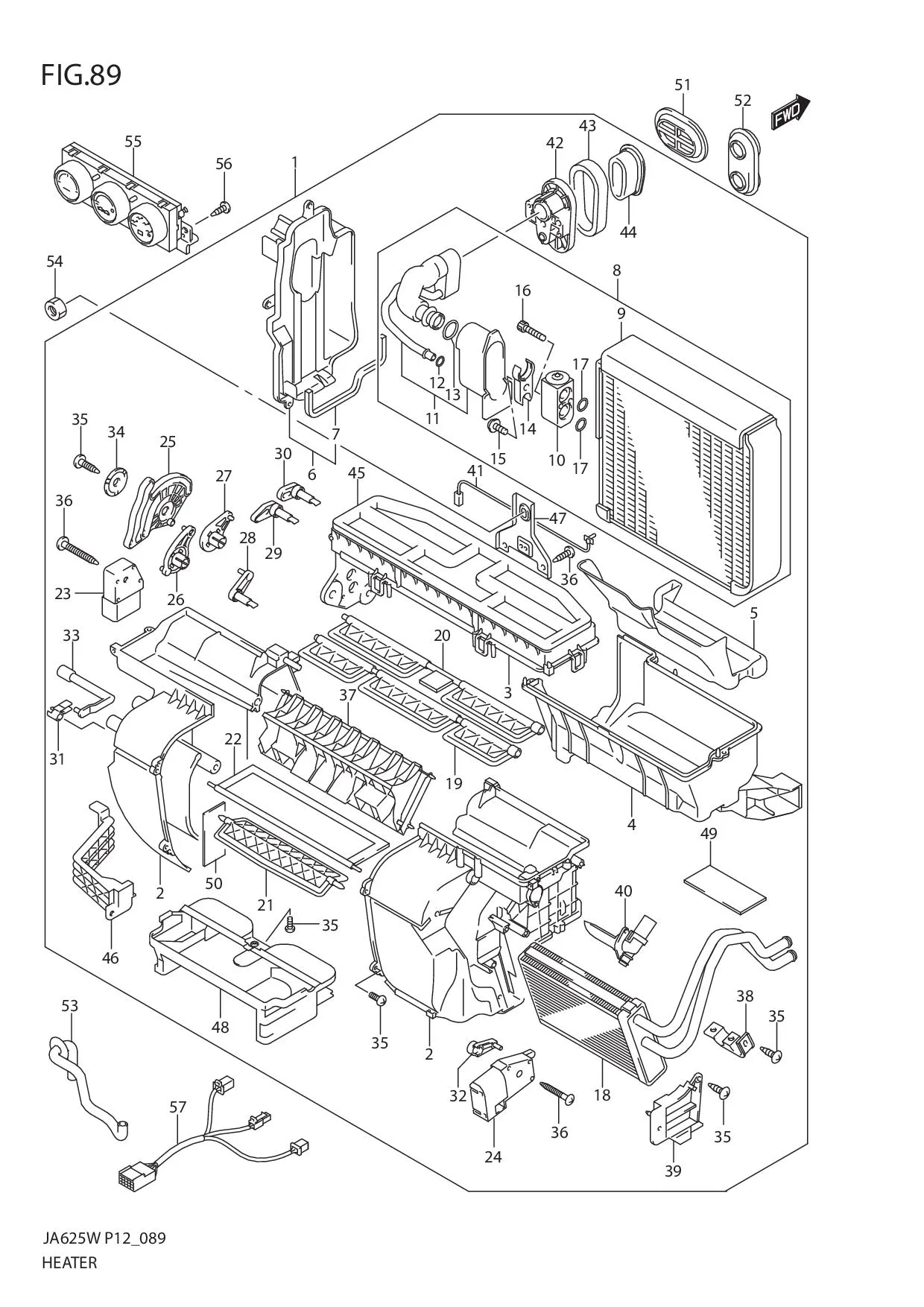

FIG.89 HEATER

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 74100B54J80N000	HEATER UNIT	1	-
2	DISCONTINUE SUB: 74110-54860-000	•CASE, HTR, RH/LH	1	-
3	DISCONTINUE SUB: 74113B54J00N000	•CASE, HEATER UPPER	1	-
4	DISCONTINUE SUB: 74115B54J00N000	•CASE, LOWER	1	-
5	DISCONTINUE SUB: 95461B54J00N000	••PLATE	1	-
6	DISCONTINUE SUB: 74117B54J00N000	•DUCT, JOINT	1	-
7	DISCONTINUE SUB: 74179B54J00N000	••SEAL	1	-
8	DISCONTINUE SUB: 95410B54J00N000	•EVAPORATOR ASSY	1	-
9	DISCONTINUE SUB: 95411-54J00-000	••CORE, EVAPORATOR	1	-
10	DISCONTINUE SUB: 95431B54J00N000	••VALVE, EXPANSION	1	-
11	DISCONTINUE SUB: 95432B54J00N000	••PIPE ASSY	1	-
12	DISCONTINUE SUB: 95891B54J00N000	•••O RING	1	-
13	DISCONTINUE SUB: 95896B54J00N000	•••O RING	1	-
14	DISCONTINUE SUB: 95433B54J00N000	••PLATE	1	-
15	01580-06303-000 SUB: 01580-06253-000	••BOLT	1	Rp5.500
16	DISCONTINUE SUB: 07130B05357N000	••BOLT	2	-
17	DISCONTINUE SUB: 95897B54J00N000	••O RING	2	-
18	DISCONTINUE SUB: 74120B54J00N000	•CORE, HTR	1	-
19	DISCONTINUE SUB: 74171B54J00N000	•DOOR, VENT	1	-
20	DISCONTINUE SUB: 74172B54J00N000	•DOOR, DEFROSTER	1	-
21	DISCONTINUE SUB: 74173B54J00N000	•DOOR, FOOT	1	-
22	DISCONTINUE SUB: 74174B54J00N000	•DOOR, TEMP	1	-
23	DISCONTINUE SUB: 95653B54J00N000	•ACTUATOR, MODE	1	-
24	DISCONTINUE SUB: 95651B54J00N000	•ACTUATOR, TEMP	1	-
25	DISCONTINUE SUB: 74181B54J00N000	•LEVER, MODE MAIN	1	-
26	DISCONTINUE SUB: 74182B54J00N000	•LEVER, VENT	1	-
27	DISCONTINUE SUB: 74183B54J00N000	•LEVER, DEFROSTER	1	-
28	DISCONTINUE SUB: 74184B54J00N000	•LEVER, FOOT SUB	1	-
29	DISCONTINUE SUB: 74185B54J00N000	•LEVER, VENT	1	-
30	DISCONTINUE SUB: 74186B54J00N000	•LEVER, DEFROSTER	1	-
31	DISCONTINUE SUB: 74187B54J00N000	•LEVER, FOOT	1	-
32	DISCONTINUE SUB: 74188B54J00N000	•LEVER, AIR MIXTURE	1	-
33	DISCONTINUE SUB: 74189B54J00N000	•LEVER, FOOT	1	-
34	DISCONTINUE SUB: 74176B54J00N000	•WASHER	1	-
35	02112-0512A-000 SUB: 02112B05123N000	•SCREW	27	Rp2.500
36	DISCONTINUE SUB: 74175B54J00N000	•SCREW, ATCTUATOR	4	-
37	DISCONTINUE SUB: 74116B54J00N000	•GUIDE	1	-
38	DISCONTINUE SUB: 74123B54J00N000	•CLAMP, HTR PIPE	1	-
39	DISCONTINUE SUB: 74121B54J00N000	•BRACKET	1	-
40	DISCONTINUE SUB: 95656B54J00N000	•ASPIRATOR	1	-
41	DISCONTINUE SUB: 95541B54J00N000	•THERMISTER	1	-
42	DISCONTINUE SUB: 95434B54J00N000	•COVER, A/C BLOCK	1	-
43	DISCONTINUE SUB: 95435B54J00N000	•GROMMET, BLOCK	1	-
44	DISCONTINUE SUB: 95436B54J00N000	•PACKING	1	-
45	DISCONTINUE SUB: 74119B54J00N000	•PACKING	1	-
46	DISCONTINUE SUB: 74118B54J20N000	•BRACKET, JOINT	1	-
47	DISCONTINUE SUB: 74118B54J00N000	•BRACKET, UPPER	1	-
48	DISCONTINUE SUB: 74114B54J00N000	•DUCT, FOOT	1	-
49	DISCONTINUE SUB: 74122B54J00N000	•PACKING, HEATER PIPE	2	-
50	DISCONTINUE SUB: 74177B54J00N000	•PACKING	1	-
51	DISCONTINUE SUB: 74812-82030-000	GROMMET, HEATER	1	-
52	DISCONTINUE SUB: 74812-77E00-000	GROMMET, HEATER	1	-
53	DISCONTINUE SUB: 95481-54J00-000	HOSE, DRAIN	1	-
54	09159-06081-000	NUT	3	Rp17.000
55	95610-54J04-5PK	PANEL UNIT, AUTO AIR CON (BLACK)	1	Rp13.876.000
56	03541-0512A-000 SUB: 03541-05123L000	SCREW	4	Rp3.500
57	DISCONTINUE SUB: 74156-54J00-000	HARNESS, JOINT	1	-
