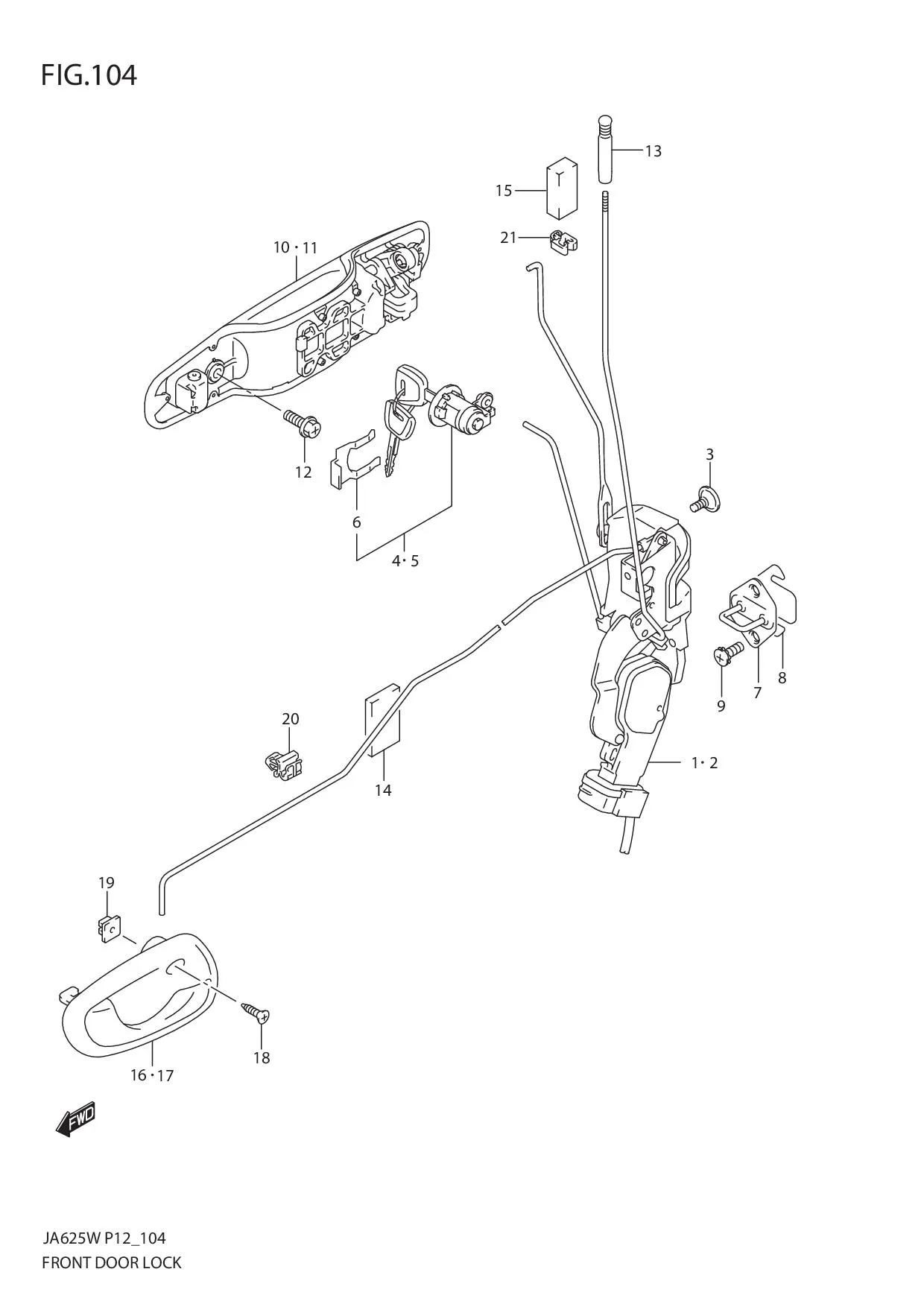

FIG.104 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82201-65D11-000 SUB: 82201-65D10-000	LATCH ASSY, DOOR RH	1	Rp4.036.000
2	82202-65D11-000 SUB: 82202-65D10-000	LATCH ASSY, DOOR LH	1	Rp4.826.000
3	DISCONTINUE SUB: 82291-65D10-000	SCREW	6	-
4	82270-52810-000	CYLINDER, DOOR LOCK RH	1	Rp697.500
5	82280-52810-000	CYLINDER, DOOR LOCK LH	1	Rp697.500
6	DISCONTINUE SUB: 82291-52D00-000	•RETAINER, CYLINDER	2	-
7	82610-60A01-000	STRIKER, DOOR LATCH	2	Rp171.000
8	78199M78000-000	SPACER	1	Rp8.000
9	09137-08014-000 SUB: 09137-08011-000	SCREW (8X18)	4	Rp23.000
10-2	82810-65D10-EG7	HANDLE, DOOR OUTER RH (GEIGE)	1	-	BODY COLOR:ZA4 (BEIGE)
10-7	82810-65D10-N0E	HANDLE, DOOR OUTER RH (BLUE)	1	-	BODY COLOR:Z2U (BLUE)
10-6	82810-65D10-L8E	HANDLE, DOOR OUTER RH (GREEN)	1	-	BODY COLOR:Z2T (GREEN)
10-5	DISCONTINUE SUB: 82810-65D10-L8D	HANDLE, DOOR OUTER RH (SILVER)	1	-	BODY COLOR:Z2S (SILVER)
10-4	82810-65D10-GZ9	HANDLE, DOOR OUTER RH (BLACK)	1	-	BODY COLOR:ZJ3 (BLACK)
10-3	82810-65D10-EG6	HANDLE, DOOR OUTER RH (WHITE)	1	-	BODY COLOR:ZA5 (WHITE)
10-1	82810-65D10-EG8	HANDLE, DOOR OUTER RH (WINE)	1	-	BODY COLOR:ZA3 (WINE)
11-1	82820-65D10-EG8	HANDLE, DOOR OUTER LH (WINE)	1	-	BODY COLOR:ZA3 (WINE)
11-7	82820-65D10-N0E	HANDLE, DOOR OUTER LH (BLUE)	1	-	BODY COLOR:Z2U (BLUE)
11-6	82820-65D10-L8E	HANDLE, DOOR OUTER LH (GREEN)	1	-	BODY COLOR:Z2T (GREEN)
11-5	DISCONTINUE SUB: 82820-65D10-L8D	HANDLE, DOOR OUTER LH (SILVER)	1	-	BODY COLOR:Z2S (SILVER)
11-4	DISCONTINUE SUB: 82820-65D10-GZ9	HANDLE, DOOR OUTER LH (BLACK)	1	-	BODY COLOR:ZJ3 (BLACK)
11-3	82820-65D10-EG6	HANDLE, DOOR OUTER LH (WHITE)	1	-	BODY COLOR:ZA5 (WHITE)
11-2	82820-65D10-EG7	HANDLE, DOOR OUTER LH (BEIGE)	1	-	BODY COLOR:ZA4 (BEIGE)
12	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000
13	82982-65D00-R8H	KNOB, DOOR INSIDE LOCK (BEIGE)	2	Rp52.000
14	77591M75000-000	PAD	2	Rp7.000
15	DISCONTINUE SUB: 83211-65D00-000	PAD	2	-
16	83110-76G11-KM7 SUB: 83110-76G10-KM7	HANDLE, DOOR INSIDE RH	1	Rp490.000
17	83130-76G11-KM7 SUB: 83130-76G10-KM7	HANDLE, DOOR INSIDE LH	1	Rp490.000
18	03121-0516A-000 SUB: 03121-05163-000	SCREW	2	Rp11.500
19	83119-60B00-000	NUT, DOOR INSIDE HANDLE	2	Rp27.000
20	83271-63D10-000	CLIP	2	Rp56.000
21	DISCONTINUE SUB: 09403-07324-000	CLIP	2	-
