GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAMEFIG.77 BODY MOUNTINGFIG.78 FRONT HOOD PANELFIG.79 FRONT FENDERFIG.80 FRONT BODY PANELFIG.81 FLOOR PANELFIG.82 SIDE BODY PANELFIG.83 ROOF PANELFIG.84 FRONT BUMPERFIG.85 REAR BUMPERFIG.86 INSTRUMENT PANELFIG.87 VENTILATORFIG.88 REAR AIR CON LOUVERFIG.89 HEATERFIG.90 HEATER BLOWERFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 CAP/OVERFIG.95 FUEL LID OPENERFIG.96 ROOF LININGFIG.97 EMBLEMFIG.98 GARNISHFIG.99 SPLASH GUARDFIG.100 TIRE CARRIERFIG.101 WINDOW GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR PANELFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 2ND SEATFIG.114 3RD SEATFIG.115 FUEL TANKFIG.116 JACK/TOOLFIG.117 FRONT AIR CONDITIONERFIG.118 REAR AIR CONDITIONERFIG.119 AIR CONDITIONER HARNESS

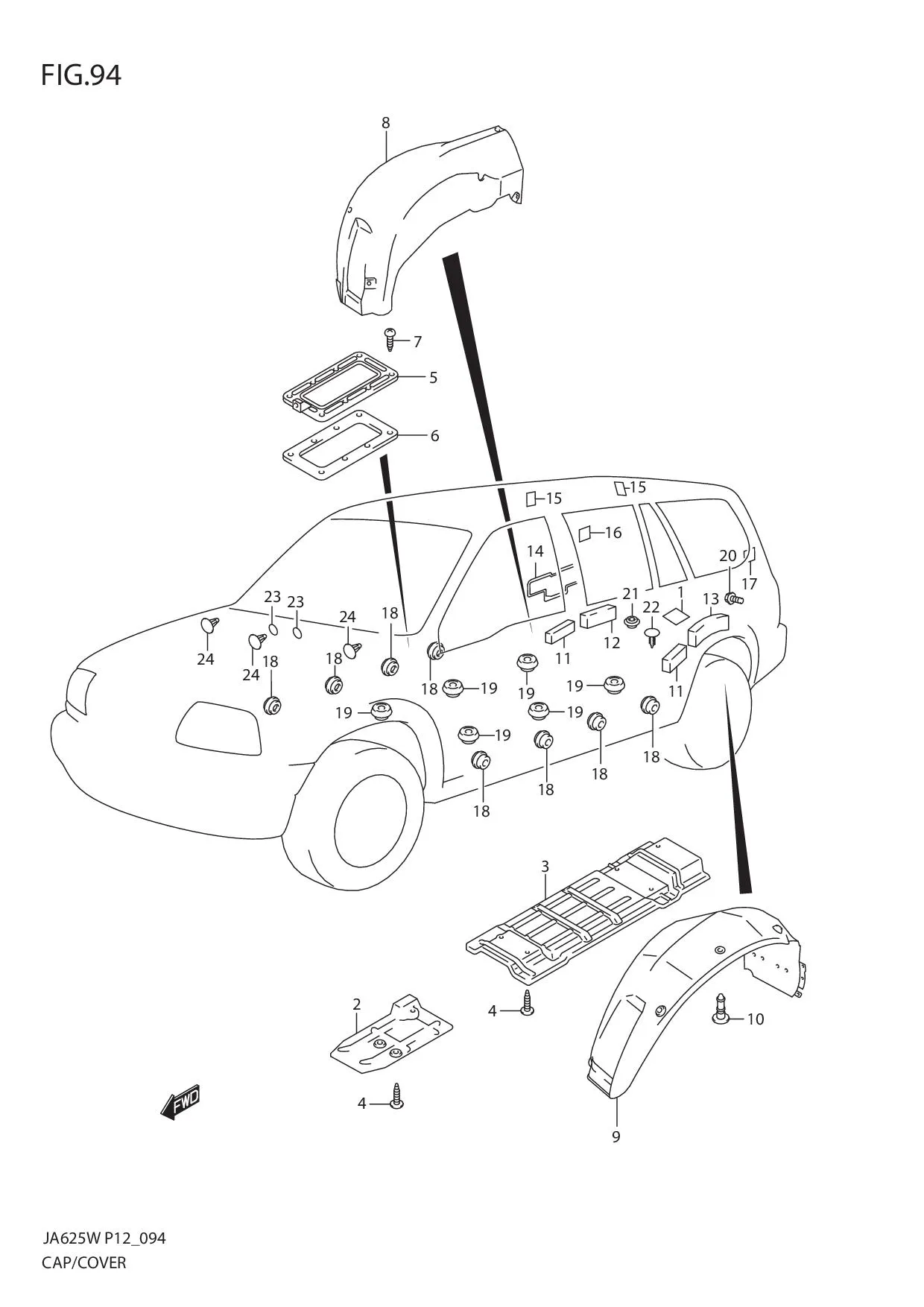

FIG.94 CAP/OVER

FIG.94 CAP/OVER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, RR COIL SPRING BRACKET (140X190) 2 - CUT AS REQUIRED
2 DISCONTINUE
SUB: 75511-65D20-000		 PANEL, HEAT PROTECTOR FR 1 -
3 DISCONTINUE
SUB: 75512-52D10-000		 PANEL, HEAT PROTECTOR RR 1 -
4 03141M0612A-000
SUB: 03141-06123-000		 SCREW 8 Rp4.500
5 DISCONTINUE
SUB: 75810-60A00-000		 COVER, FLOOR TUNNEL 1 -
6 DISCONTINUE
SUB: 75812-60A10-000		 SEAL, FLOOR RUNNEL 1 -
7 03141M0612A-000
SUB: 03141-06123-000		 SCREW 8 Rp4.500
8 75521-65D10-000 LINING, RR WHEEL HOUSING RH 1 Rp1.227.000
9 DISCONTINUE
SUB: 75531-65D00-000		 LINING, RR WHEEL HOUSING LH 1 -
10 09409M07L01-000
SUB: 09409M07332-000		 CLIP 17 Rp5.000
11 DISCONTINUE
SUB: 76551-52D00-000		 PAD (80X35X200) 2 -
12 DISCONTINUE
SUB: 76552-52D00-000		 PAD (125X100X340) 1 -
13 DISCONTINUE
SUB: 76553-52D00-000		 PAD (150X50X400) 1 -
14 DISCONTINUE
SUB: 76351-52D00-000		 COVER, RR QTR INNER RH 1 -
15 DISCONTINUE
SUB: 76353-52D00-000		 SEAL, RR QTR INNER NO.1 4 - 90X90!45X60
16 DISCONTINUE
SUB: 76353-52D00-000		 SEAL, RR QTR INNER NO.2 1 -
17 DISCONTINUE
SUB: 76353-52D00-000		 SEAL, RR QTR INNER NO.3 1 - L:90!60
18 09250-25007-000 CAP, SIDE SILL INNER (OD:33.5) 8 Rp10.500
19 09250-30002-000
SUB: 09250-30010-000		 CAP, FLOOR (OD:40) 6 Rp5.500
20 DISCONTINUE
SUB: 01550B06123N000		 BOLT, RR WHEEL HOUSING INNER 1 -
21 DISCONTINUE
SUB: 09250-14009-000		 CAP, RR FLOOR 2 -
22 DISCONTINUE
SUB: 09409-09305-000		 CLIP, RR FLOOR 2 -
23 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, COMPLIANCE PLATE HOLE 2 - CUT AS REQUIRED
24 DISCONTINUE
SUB: 09409-07320-000		 CAP, COWL FRONT 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
