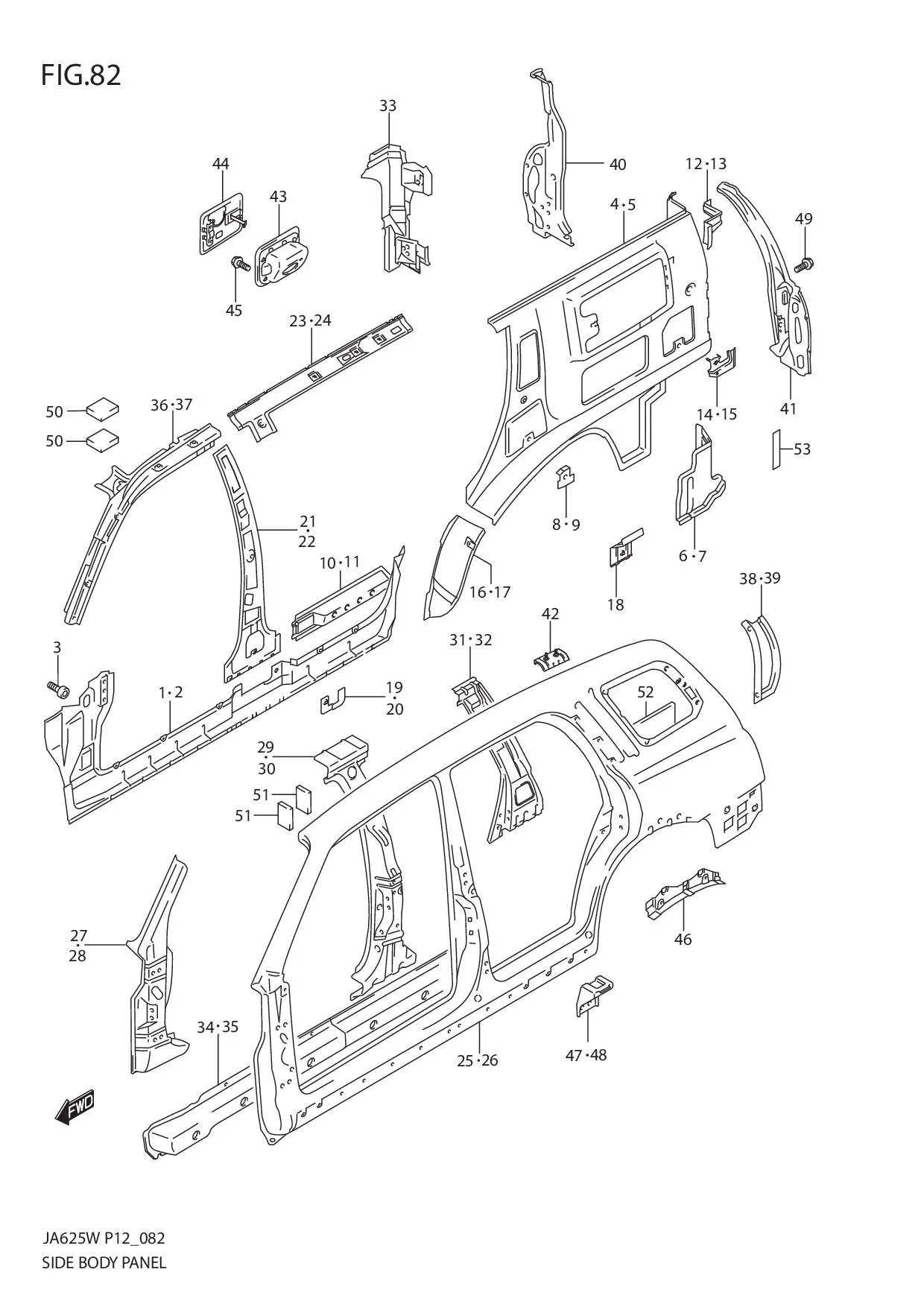

FIG.82 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 61480-52D10-000	PANEL, FR PLR INNER LOWER RH	1	-
2	DISCONTINUE SUB: 61580-52D50-000	PANEL, FR PLR INNER LOWER LH	1	-
3	DISCONTINUE SUB: 09119-06090-000	BOLT (6X30)	3	-
4	DISCONTINUE SUB: 63111-52D00-000	PANEL, RR QUARTER INNER RH	1	-
5	DISCONTINUE SUB: 63511-52D00-000	PANEL, RR QUARTER INNER LH	1	-
6	DISCONTINUE SUB: 63121-52D00-000	PANEL, RR WHEEL HSG OUTER RH	1	-
7	DISCONTINUE SUB: 63521-52D00-000	PANEL, RR WHEEL HSG OUTER LH	1	-
8	DISCONTINUE SUB: 63141-65D00-000	REINF, SEAT BELT RETRACTOR RH	1	-
9	DISCONTINUE SUB: 63141-52D00-000	REINF, SEAT BELT RETRACTOR LH	1	-
10	DISCONTINUE SUB: 63151-52D00-000	REINF, SIDE SILL REAR RH	1	-
11	DISCONTINUE SUB: 63551-52D00-000	REINF, SIDE SILL REAR LH	1	-
12	DISCONTINUE SUB: 63161-52D00-000	REINF, RR SEAT BELT ANCHORAGE RH	1	-
13	DISCONTINUE SUB: 63561-52D00-000	REINF, RR SEAT BELT ANCHORAGE LH	1	-
14	DISCONTINUE SUB: 63171-52D00-000	REINF, SEAT BELT RETR RR RH	1	-
15	DISCONTINUE SUB: 63571-52D00-000	REINF, SEAT BELT RETR RR LH	1	-
16	DISCONTINUE SUB: 63211-52D01-000	PANEL, RR WHEEL HSG OUTER RH	1	-
17	DISCONTINUE SUB: 63611-52D01-000	PANEL, RR WHEEL HSG OUTER LH	1	-
18	DISCONTINUE SUB: 63581-52D00-000	REINF, REAR AIR CONDITIONER	1	-
19	DISCONTINUE SUB: 63131-65D00-000	REINF, CTR PLR RETRACTOR RH	1	-
20	DISCONTINUE SUB: 63531-65D00-000	REINF, CTR PIR RETRACTOR LH	1	-
21	DISCONTINUE SUB: 63221-52D01-000	PANEL, CTR PILLAR INNER RH	1	-
22	DISCONTINUE SUB: 63621-52D00-000	PANEL, CTR PILLAR INNER LH	1	-
23	DISCONTINUE SUB: 63231-52D00-000	PANEL, ROOF SIDE INNER RH	1	-
24	DISCONTINUE SUB: 63631-52D00-000	PANEL, ROOF SIDE INNER LH	1	-
25	DISCONTINUE SUB: 64111-52D53-000	PANEL, SIDE BODY OUTER RH	1	-
26	DISCONTINUE SUB: 64500-52823-000	PANEL SET, SIDE BODY OUTER LH	1	-
27	DISCONTINUE SUB: 64120-52D01-000	REINF, FR PILLAR RH	1	-
28	DISCONTINUE SUB: 64520-52D01-000	REINF, FR PILLAR LH	1	-
29	DISCONTINUE SUB: 64130-52D10-000	REINF, CTR PILLAR RH	1	-
30	DISCONTINUE SUB: 64530-52D10-000	REINF, CTR PILLAR LH	1	-
31	DISCONTINUE SUB: 64140-52D02-000	REINF, RR PILLAR RH	1	-
32	DISCONTINUE SUB: 64540-52D02-000	REINF, RR PILLAR LH	1	-
33	DISCONTINUE SUB: 64150-52D00-000	REINF, BACK PILLAR RH	1	-
34	DISCONTINUE SUB: 64160-52D01-000	REINF, SIDE SILL RH	1	-
35	DISCONTINUE SUB: 64560-52D01-000	REINF, SIDE SILL LH	1	-
36	DISCONTINUE SUB: 64210-52D00-000	PANEL, FR PILLAR INNER RH	1	-
37	DISCONTINUE SUB: 64610-52D00-000	PANEL, FR PILLAR INNER LH	1	-
38	DISCONTINUE SUB: 64221-52D00-000	PANEL, AIR OUTLET RH	1	-
39	DISCONTINUE SUB: 64621-52D00-000	PANEL, AIR OUTLET LH	1	-
40	DISCONTINUE SUB: 64231-65D12-000	PANEL, BACK PILLAR OUTER RH	1	-
41	DISCONTINUE SUB: 64630-52D01-000	PANEL, BACK PILLAR OUTER LH	1	-
42	DISCONTINUE SUB: 64261-52D00-000	REINF, ROOF RAIL	4	-
43	DISCONTINUE SUB: 64241-65D00-000	BOX, FUEL INLET	1	-
44	65950-65D04-000 SUB: 65950-65D03-000	LID, FUEL INLET	1	Rp470.500
45	02162-0510A-000 SUB: 02162-05103-000	SCREW	2	Rp3.000
46	DISCONTINUE SUB: 64251-52D00-000	HOLDER, RR QTR SPLASH	2	-
47	DISCONTINUE SUB: 64252-52D00-000	HOLDER, SIDE SILL SPLASH RH	1	-
48	DISCONTINUE SUB: 64652-52D00-000	HOLDER, SIDE SILL SPLASH LH	1	-
49	09122-76003-000	SCREW	2	Rp15.000
50	83921-82C00-000	PAD	0	Rp51.000
51	83921-82C00-000	PAD	0	Rp51.000
52	83971-54F00-000	SHEET (185X75X1.8)	1	Rp58.000
53	83971-54F00-000	SHEET (185X75X1.8)	0	Rp58.000	CUT AS REQUIRED
