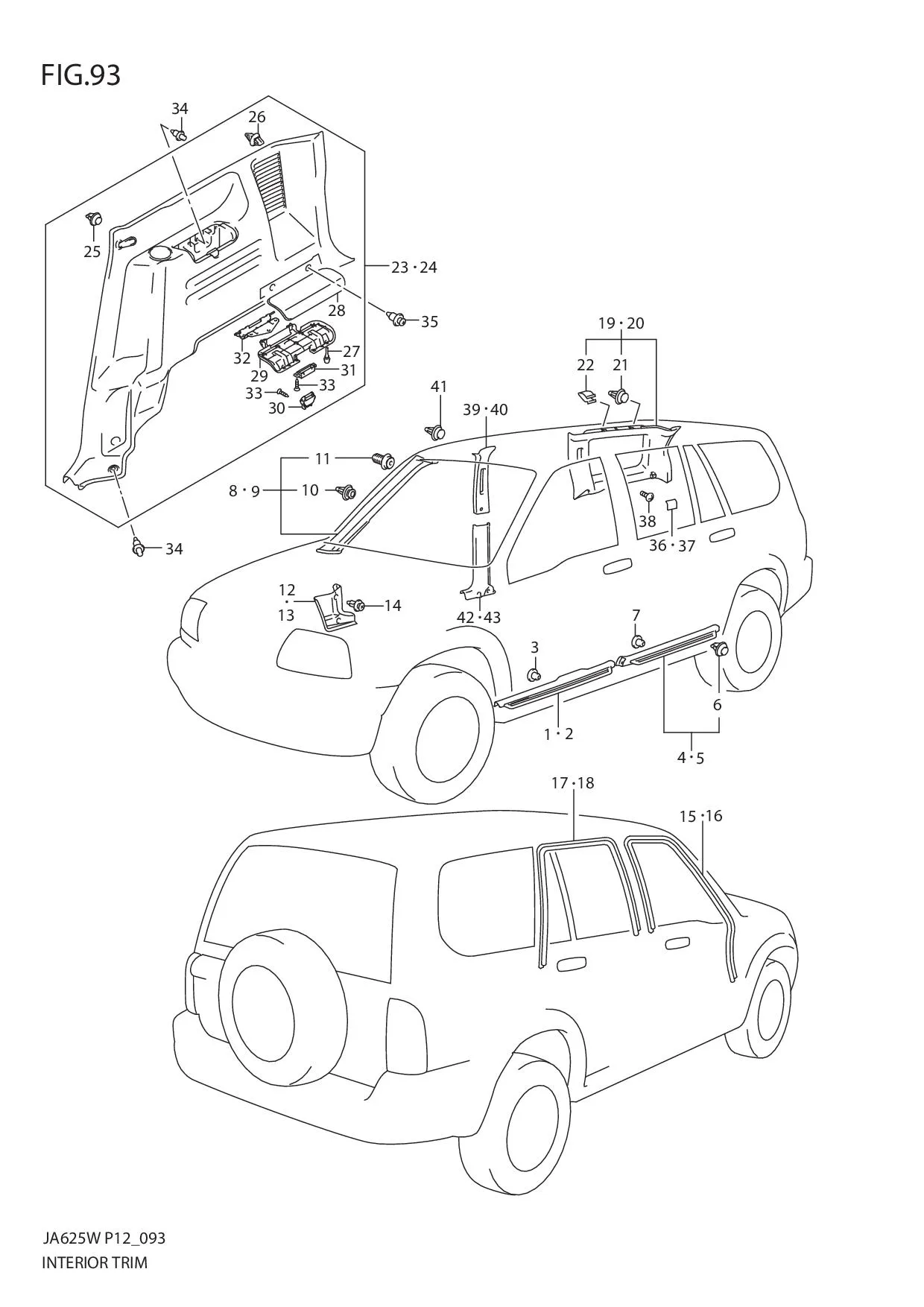

FIG.93 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 76131-65D00-R8H	SCUFF, SIDE SILL FR RH (BEIGE)	1	-
2	DISCONTINUE SUB: 76141-65D00-R8H	SCUFF, SEDE SILL FR LH (BEIGE)	1	-
3	09409-06314-R8H	CLIP (BEIGE)	6	Rp18.500
4	DISCONTINUE SUB: 76170-52D00-R8H	SCUFF, SIDE SILL RR RH (BEIGE)	1	-
5	76180-52D00-R8H	SCUFF, SIDE SILL RR LH (BEIGE)	1	Rp333.500
6	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	8	Rp9.500
7	09409-06314-R8H	CLIP (BEIGE)	2	Rp18.500
8	DISCONTINUE SUB: 76240-65D21-R8H	TRIM, FR PLR UPPER RH (BEIGE)	1	-
9	DISCONTINUE SUB: 76250-65D21-R8H	TRIM, FR PLR UPPER LH (BEIGE)	1	-
10	83714M62B00-000 SUB: 09409M08320-000	•CLIP	2	Rp14.500
11	09409-08322-000	•CLIP	2	Rp17.500
12	DISCONTINUE SUB: 76111-65D00-R8H	TRIM, FR PLR LOWER RH (BEIGE)	1	-
13	DISCONTINUE SUB: 76121-65D10-R8H	TRIM, FR PLR LOWER LH (BEIGE)	1	-
14	09409-06322-R8H	CLIP (BEIGE)	4	Rp22.000
15	DISCONTINUE SUB: 76311-52D00-5PK	TRIM, FR DR OPENING RH (BLACK)	1	-
16	DISCONTINUE SUB: 76312-52D00-5PK	TRIM, FR DR OPENING LH (BLACK)	1	-
17	DISCONTINUE SUB: 76321-52D00-5PK	TRIM, RR DR OPENING RH (BLACK)	1	-
18	DISCONTINUE SUB: 76322-52D00-5PK	TRIM, RR DR OPENING LH (BLACK)	1	-
19	DISCONTINUE SUB: 76280-52D00-R8H	TRIM, RR QTR UPPER RH (BEIGE)	1	-
20	DISCONTINUE SUB: 76290-52D00-R8H	TRIM, RR QTR UPPER LH (BEIGE)	1	-
21	09409-08331-000	•CLIP	15	Rp17.000	RH:7PCS,LH:8PCS
22	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500	LH
23	DISCONTINUE SUB: 76210-52D00-R8H	TRIM, RR QTR LOWER RH (BEIGE)	1	-
24	DISCONTINUE SUB: 76220-52D00-R8H	TRIM, RR QTR LOWER LH (BEIGE)	1	-
25	09409-08331-000	•CLIP	10	Rp17.000	RH:6PCS,LH:4PCS
26	09409-09304-000	•CLIP	2	Rp17.000
27	73413M82C00-000	•CUSHION, RH	2	Rp11.500
28	DISCONTINUE SUB: 76214-52D00-R8H	•LID, POCKET OUTER RH (BEIGE)	1	-
29	DISCONTINUE SUB: 76215-52D00-R8H	•LID, POCKET INNER RH (BEIGE)	1	-
30	DISCONTINUE SUB: 76216-52D00-R8H	•LOCK, POCKET RH (BEIGE)	1	-
31	DISCONTINUE SUB: 76217-52D00-000	•STRIKER, POCKET RH	1	-
32	DISCONTINUE SUB: 76230-52D00-000	•HINGE, LID RH	1	-
33	03521-0410A-000	•SCREW, POCKET RH	15	-
34	09409-06314-R8H	CLIP (BEIGE)	3	Rp18.500
35	09409-06322-R8H	CLIP (BEIGE)	4	Rp22.000
36	76285-52D00-R8H	CAP, RR QTR UPPER TRIM RH (BEIGE)	1	Rp57.500
37	DISCONTINUE SUB: 76295-52D00-R8H	CAP, RR QTR UPPER TRIM LH (BEIGE)	1	-
38	03141M0612A-000 SUB: 03141-06123-000	SCREW	4	Rp4.500
39	DISCONTINUE SUB: 76260-65D20-R8H	TRIM, CTR PLR UPPER RH (BEIGE)	1	-
40	DISCONTINUE SUB: 76270-65D20-R8H	TRIM, CTR PLR UPPER LH (BEIGE)	1	-
41	83714M62B00-000 SUB: 09409M08320-000	•CLIP	4	Rp14.500
42	DISCONTINUE SUB: 76151-65D10-R8H	TRIM, CTR PLR LOWER RH (BEIGE)	1	-
43	DISCONTINUE SUB: 76161-65D10-R8H	TRIM, CTR PLR LOWER LH (BEIGE)	1	-
