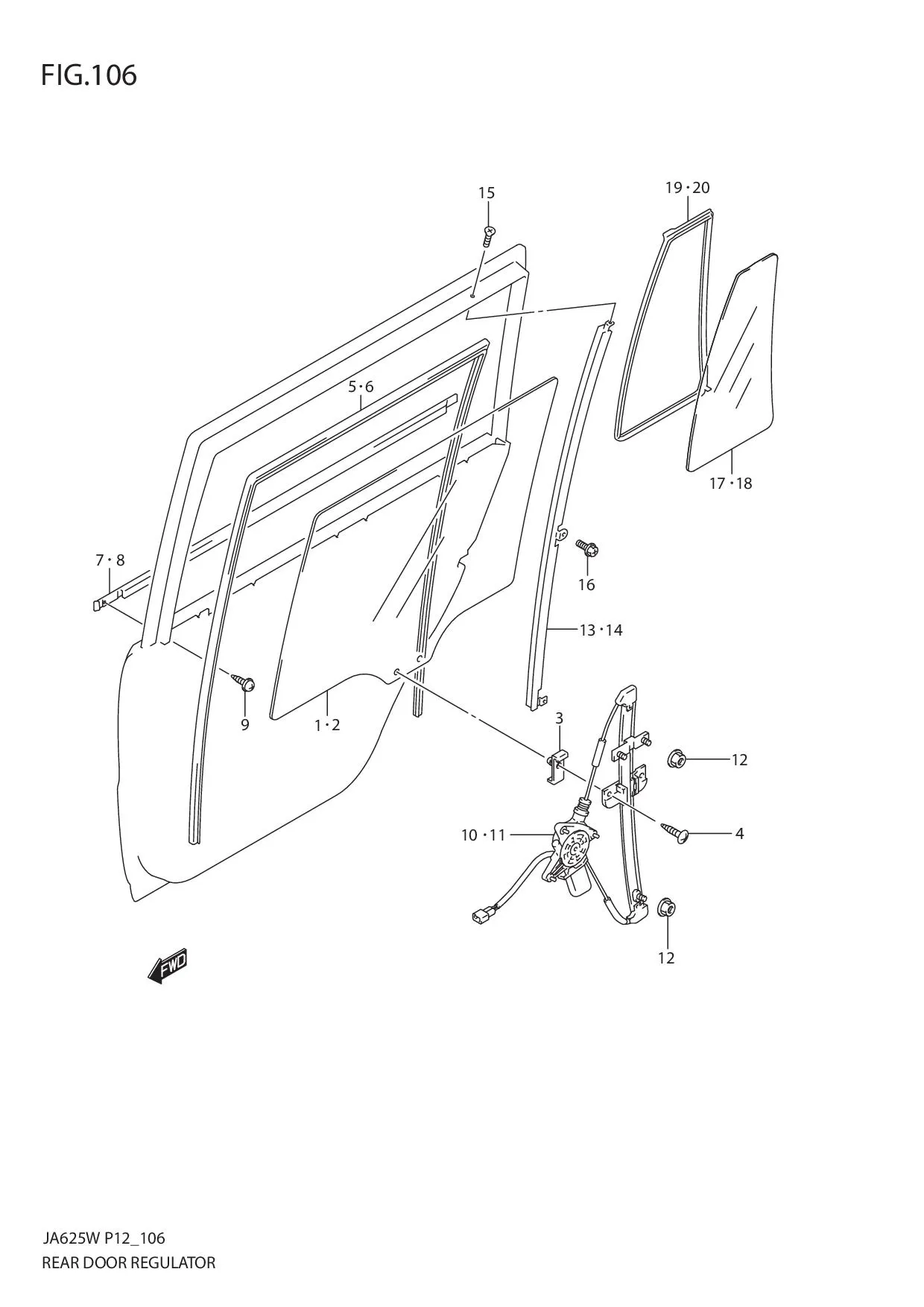

FIG.106 REAR DOOR REGULATOR

FIG.106 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84541B52D00N000		 GLASS, WINDOW RH 1 -
2 DISCONTINUE
SUB: 84546B52D00N000		 GLASS, WINDOW LH 1 -
3 83611-65D00-000 HOLDER, DOOR GLASS 4 Rp53.500
4 03241-0620A-000 SCREW, HOLDER 4 -
5 DISCONTINUE
SUB: 83671-52D00-000		 RUN, RR DR GLASS RH 1 -
6 DISCONTINUE
SUB: 83672-52D00-000		 RUN, RR DR GLASS LH 1 -
7 83830-52D00-000 WEATHERSTRIP, OUT RH 1 Rp1.125.000
8 83840-52D00-000 WEATHERSTRIP, OUT LH 1 Rp1.257.000
9 DISCONTINUE
SUB: 09136-05059-000		 SCREW (5X12) 2 -
10 83501-65D10-000 REGULATOR ASSY, RR WINDOW RH 1 Rp4.852.500
11 83502-65D10-000 REGULATOR ASSY, RR WINDOW LH 1 Rp4.852.500
12 08361-1506A-000
SUB: 08361-15063-000		 NUT 12 Rp13.000
13 DISCONTINUE
SUB: 81770-52D00-000		 SASH, RR DOOR CTR RH 1 -
14 DISCONTINUE
SUB: 81780-52D00-000		 SASH, RR DOOR CTR LH 1 -
15 02122-0410A-000
SUB: 02122-04103-000		 SCREW, SASH UPPER 2 Rp10.000
16 02162-0616A-000
SUB: 02162-06163L000		 SCREW, SASH LOWER 4 Rp3.000
17 DISCONTINUE
SUB: 84551-52D01-000		 GLASS, PARTITION RH 1 -
18 DISCONTINUE
SUB: 84556-52D01-000		 GLASS, PARTITION LH 1 -
19 DISCONTINUE
SUB: 84665-52D00-000		 WEATHERSTRIP, PARTITION RH 1 -
20 DISCONTINUE
SUB: 84675-52D00-000		 WEATHERSTRIP, PARTITION LH 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
