GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAME FIG.77 BODY MOUNTING FIG.78 FRONT HOOD PANEL FIG.79 FRONT FENDER FIG.80 FRONT BODY PANEL FIG.81 FLOOR PANEL FIG.82 SIDE BODY PANEL FIG.83 ROOF PANEL FIG.84 FRONT BUMPER FIG.85 REAR BUMPER FIG.86 INSTRUMENT PANEL FIG.87 VENTILATOR FIG.88 REAR AIR CON LOUVER FIG.89 HEATER FIG.90 HEATER BLOWER FIG.91 CONSOLE BOX FIG.92 FLOOR CARPET FIG.93 INTERIOR TRIM FIG.94 CAP/OVER FIG.95 FUEL LID OPENER FIG.96 ROOF LINING FIG.97 EMBLEM FIG.98 GARNISH FIG.99 SPLASH GUARD FIG.100 TIRE CARRIER FIG.101 WINDOW GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR PANEL FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 2ND SEAT FIG.114 3RD SEAT FIG.115 FUEL TANK FIG.116 JACK/TOOL FIG.117 FRONT AIR CONDITIONER FIG.118 REAR AIR CONDITIONER FIG.119 AIR CONDITIONER HARNESS

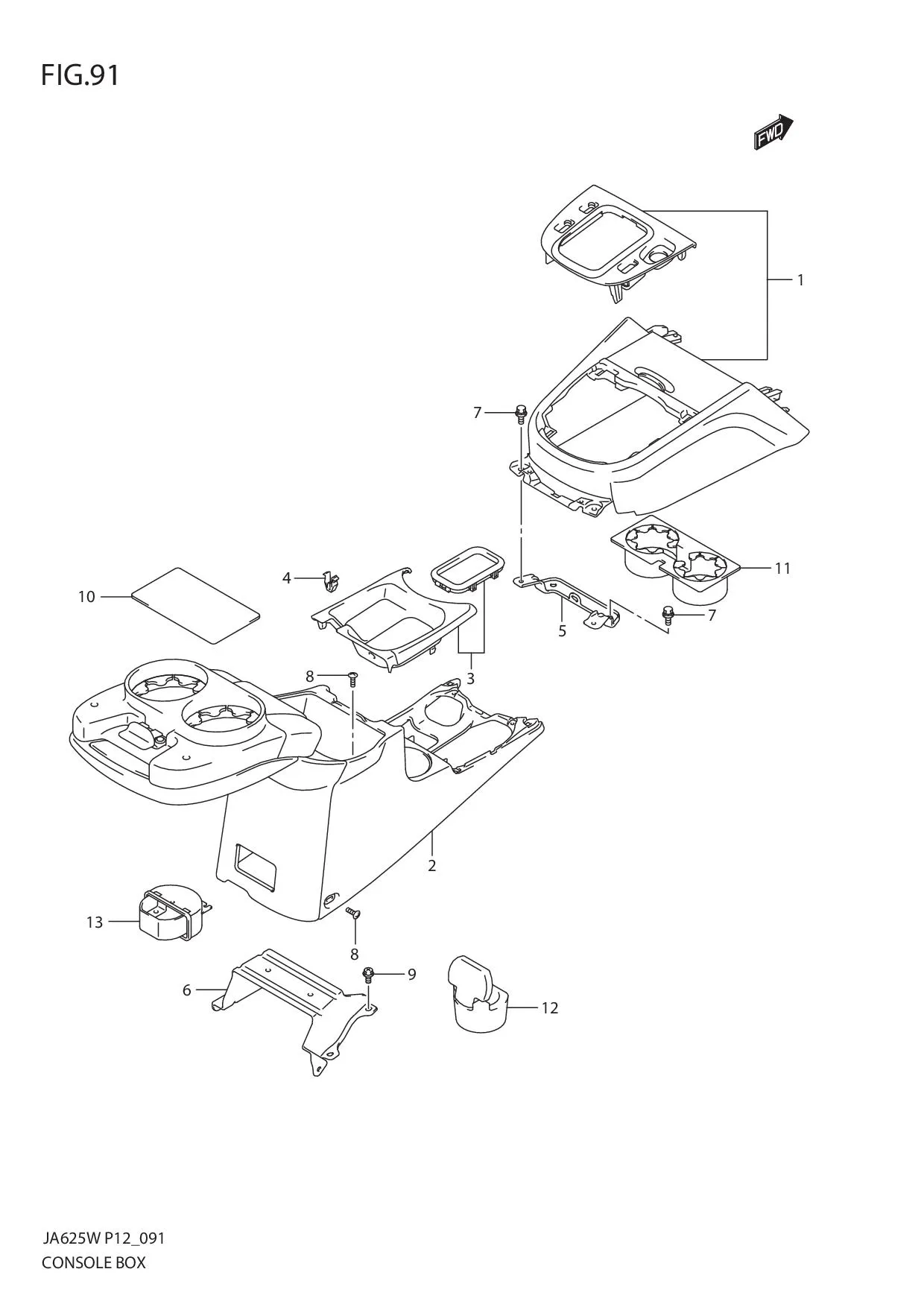

FIG.91 CONSOLE BOX

FIG.91 CONSOLE BOX

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 75810-50J10-KU9	BOX, CTR CONSOLE FR (BEIGE/CHROME/WOOD)	1	-
2	DISCONTINUE SUB: 75910-50J00-KV3	BOX, FLOOR CONSOLE RR (BEIGE/BLACK)	1	-
3	DISCONTINUE SUB: 75921-50J10-R8H	COVER, FLOOR CONSOLE BOX (GRAY/CHROME)	1	-
4	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
5	DISCONTINUE SUB: 75851-50J00-000	BRACKET, FLOOR CONSOLE BOX FR	1	-
6	DISCONTINUE SUB: 75951-50J00-000	BRACKET, FLOOR CONSOLE BOX RR	1	-
7	02142-0512A-000 SUB: 02142B05123N000	SCREW	2	Rp3.500
8	02142-0512A-000 SUB: 02142B05123N000	SCREW	4	Rp3.500
9	02162-0612B-000 SUB: 02162-06123-000	BOLT, RR BRACKET	4	Rp16.000
10	DISCONTINUE SUB: 75961-50J00-000	SHEET, CONSOLE BOX INNER	1	-
11	DISCONTINUE SUB: 75820-50J00-5PK	HOLDER, CUP (BLACK)	1	-
12	DISCONTINUE SUB: 89810-50J02-5PK	ASHTRAY, FRONT (BLACK)	1	-
13	DISCONTINUE SUB: 89850-50J00-R8H	ASHTRAY, REAR (BEIGE)	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
