GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAME FIG.77 BODY MOUNTING FIG.78 FRONT HOOD PANEL FIG.79 FRONT FENDER FIG.80 FRONT BODY PANEL FIG.81 FLOOR PANEL FIG.82 SIDE BODY PANEL FIG.83 ROOF PANEL FIG.84 FRONT BUMPER FIG.85 REAR BUMPER FIG.86 INSTRUMENT PANEL FIG.87 VENTILATOR FIG.88 REAR AIR CON LOUVER FIG.89 HEATER FIG.90 HEATER BLOWER FIG.91 CONSOLE BOX FIG.92 FLOOR CARPET FIG.93 INTERIOR TRIM FIG.94 CAP/OVER FIG.95 FUEL LID OPENER FIG.96 ROOF LINING FIG.97 EMBLEM FIG.98 GARNISH FIG.99 SPLASH GUARD FIG.100 TIRE CARRIER FIG.101 WINDOW GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR PANEL FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 2ND SEAT FIG.114 3RD SEAT FIG.115 FUEL TANK FIG.116 JACK/TOOL FIG.117 FRONT AIR CONDITIONER FIG.118 REAR AIR CONDITIONER FIG.119 AIR CONDITIONER HARNESS

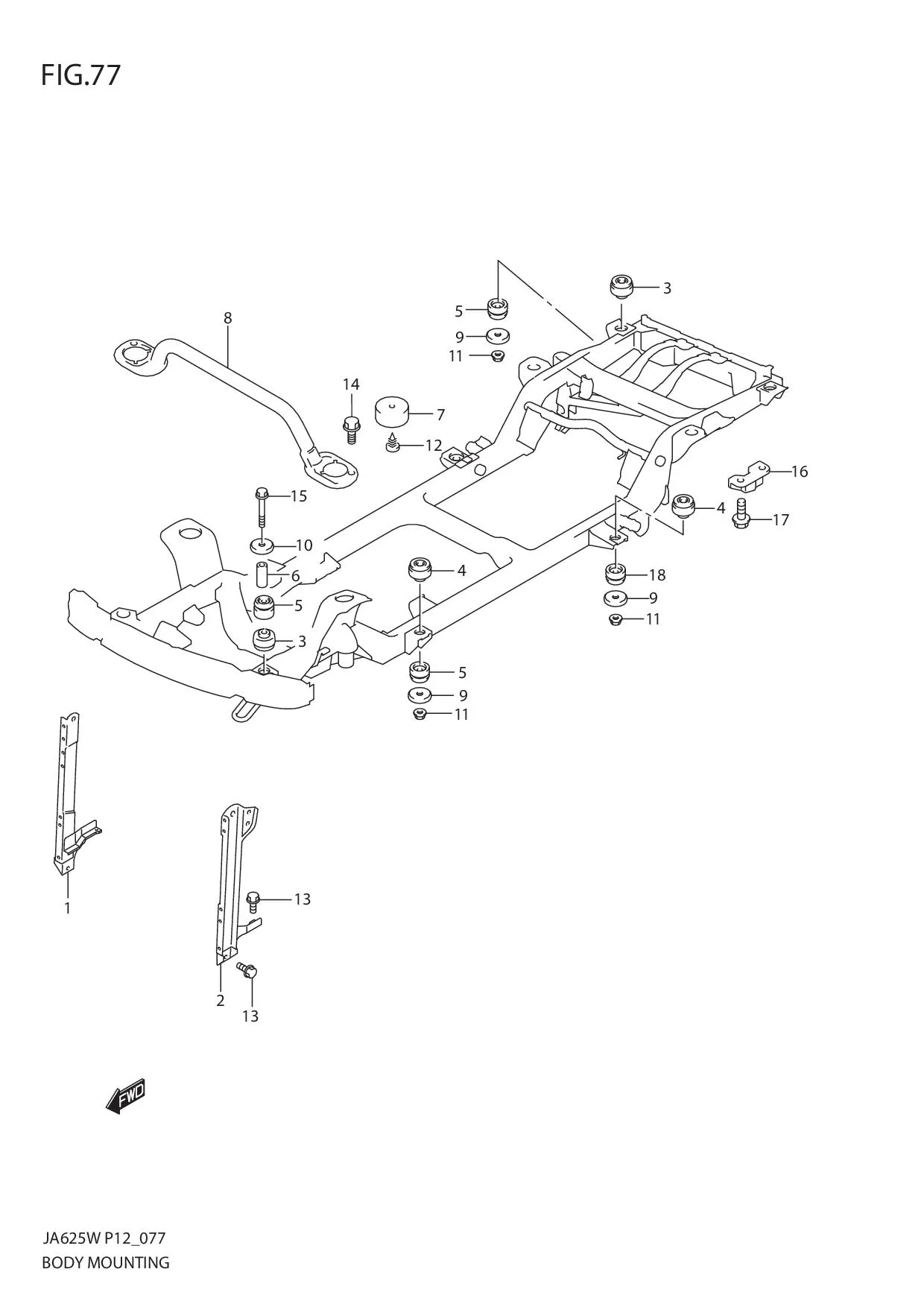

FIG.77 BODY MOUNTING

FIG.77 BODY MOUNTING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 71410-65D20-000	STAY, RADIATOR RH	1	-
2	DISCONTINUE SUB: 71420-65D20-000	STAY, RADIATOR LH	1	-
3	71511-65D00-000	CUSHION, BODY MOUNTING NO.1	4	Rp185.000
4	71511-52D00-000	CUSHION, BODY MOUNTING NO.1	4	Rp218.000
5	71512-65D00-000	CUSHION, BODY MOUTING NO.2	6	Rp114.500
6	71515-65D01-000 SUB: 71515-65D00-000	COLLAR, BODY 1ST MOUNTING	2	Rp50.000
7	DISCONTINUE SUB: 71521-52D00-000	PAD, BODY MOUNTING	2	-
8	DISCONTINUE SUB: 71530-65D00-000	BAR, STRUT	1	-
9	71632-83011-000 SUB: 71632-83010-000	BOTTOM, BODY MOUNTING	6	Rp51.000
10	DISCONTINUE SUB: 71630-52D00-000	BOTTOM, 1ST BODY MOUNTING	2	-
11	09159-10060-000	NUT	6	Rp14.000
12	09409-10302-5PK	CLIP (BLACK)	2	Rp18.500
13	01551-0816C-000 SUB: 01551-08163-000	BOLT	4	Rp13.500
14	01550-1020A-000 SUB: 01550-10203-000	BOLT	6	Rp21.000
15	09103-10299-000	BOLT (10X100)	2	Rp42.000
16	DISCONTINUE SUB: 71450-52D00-000	HOOK, SHIPPING REAR	1	-
17	09103-12043-000	BOLT (12X20)	2	Rp33.500
18	71512-65D10-000	CUSHION, BODY 3RD MOUNTING	2	Rp117.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
