GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAMEFIG.77 BODY MOUNTINGFIG.78 FRONT HOOD PANELFIG.79 FRONT FENDERFIG.80 FRONT BODY PANELFIG.81 FLOOR PANELFIG.82 SIDE BODY PANELFIG.83 ROOF PANELFIG.84 FRONT BUMPERFIG.85 REAR BUMPERFIG.86 INSTRUMENT PANELFIG.87 VENTILATORFIG.88 REAR AIR CON LOUVERFIG.89 HEATERFIG.90 HEATER BLOWERFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 CAP/OVERFIG.95 FUEL LID OPENERFIG.96 ROOF LININGFIG.97 EMBLEMFIG.98 GARNISHFIG.99 SPLASH GUARDFIG.100 TIRE CARRIERFIG.101 WINDOW GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR PANELFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 2ND SEATFIG.114 3RD SEATFIG.115 FUEL TANKFIG.116 JACK/TOOLFIG.117 FRONT AIR CONDITIONERFIG.118 REAR AIR CONDITIONERFIG.119 AIR CONDITIONER HARNESS

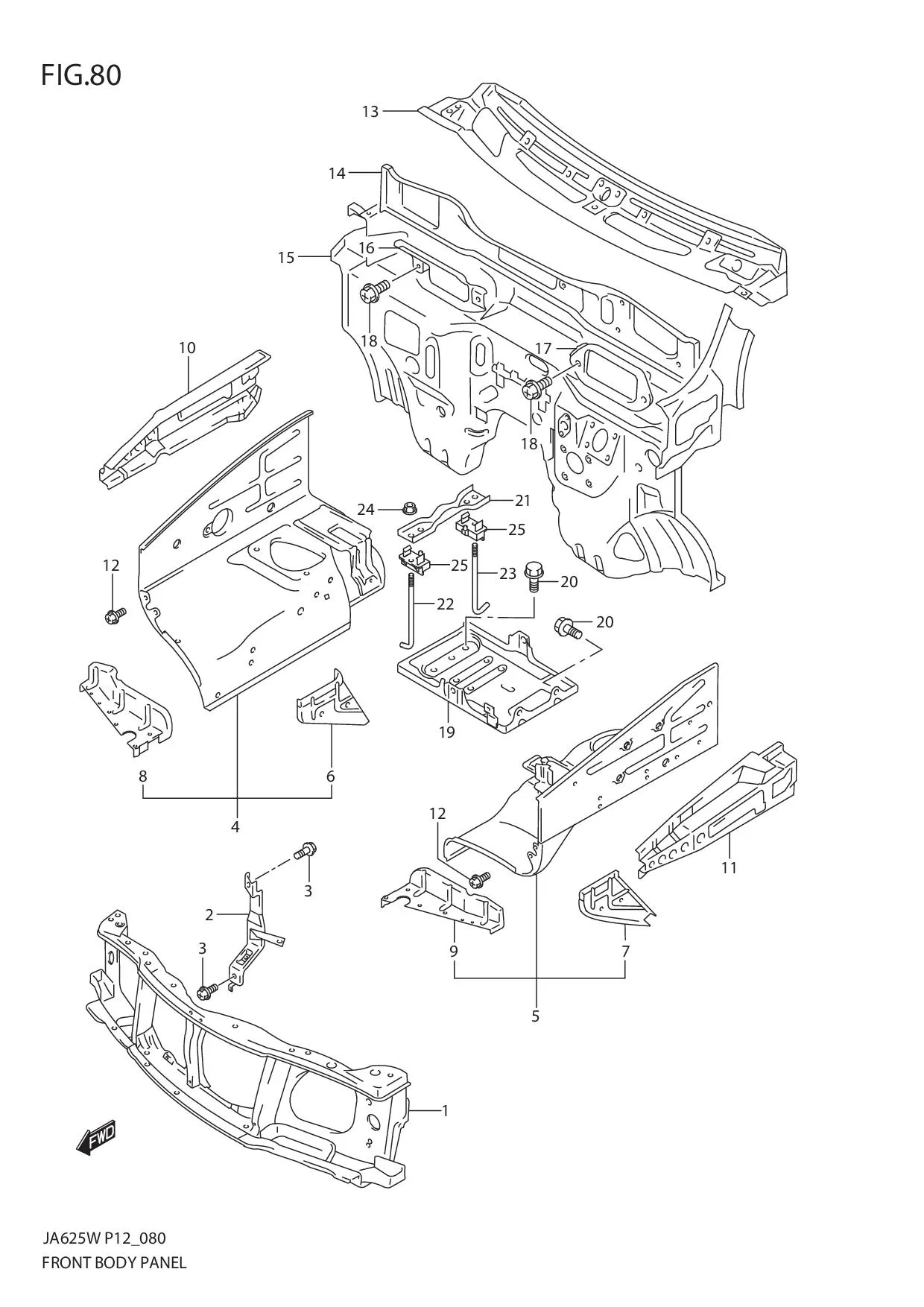

FIG.80 FRONT BODY PANEL

FIG.80 FRONT BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 58100-65D12-000
SUB: 58100-65D10-000		 PANEL, FRONT 1 Rp5.618.000
2 DISCONTINUE
SUB: 58160-65D00-000		 STAY, AIR CLEANER 1 -
3 09122-76003-000 SCREW 2 Rp15.000
4 DISCONTINUE
SUB: 58700-65D80-000		 PANEL ASSY, FR WHEEL HSG RH 1 -
5 58900-65D61-000 PANEL ASSY, FR WHEEL HSG LH 1 Rp3.949.000
6 DISCONTINUE
SUB: 58712-65D00-000		 •EXTENSION, FR WHEEL HSG RH 1 -
7 DISCONTINUE
SUB: 58912-65D00-000		 •EXTENSION, FR WHEEL HSG LH 1 -
8 DISCONTINUE
SUB: 58714-65D20-000		 •GUSSET, FR LOWER MEMBER RH 1 -
9 DISCONTINUE
SUB: 58914-65D20-000		 •GUSSET, FR LOWER MEMBER LH 1 -
10 DISCONTINUE
SUB: 58770-65D20-000		 MEMBER, FR BODY SIDE RH 1 -
11 DISCONTINUE
SUB: 58970-65D00-000		 MEMBER, FR BODY SIDE LH 1 -
12 09122-76003-000 SCREW, FR WHEEL HSG 2 Rp15.000
13 DISCONTINUE
SUB: 59110-65D11-000		 PANEL, COWLING TOP 1 -
14 DISCONTINUE
SUB: 59211-65D13-000		 PANEL, COWLING FR 1 -
15 DISCONTINUE
SUB: 59300-65D71-000		 PANEL, DASH 1 -
16 DISCONTINUE
SUB: 72421-65D10-000		 LID, WIPER LINK SERVICE HOLE CENTER 1 -
17 DISCONTINUE
SUB: 72422-60A10-000		 LID, WIPER LINK SERVICE HOLE 1 -
18 02162-0612B-000
SUB: 02162-06123-000		 SCREW 4 Rp16.000
19 DISCONTINUE
SUB: 58780-65D00-000		 BRACKET, BATTERY 1 -
20 09122-76003-000 SCREW 4 Rp15.000
21 72511-60A03-000 BAND, BATTERY 1 Rp142.500
22 72512-82002-000 BOLT, BATTERY 1 Rp91.000
23 72512-82002-000 BOLT, BATTERY 1 Rp91.000
24 08361-1506A-000
SUB: 08361-15063-000		 NUT 2 Rp13.000
25 DISCONTINUE
SUB: 72514-60A01-000		 PAD, BATTERY BAND 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
