GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAME FIG.77 BODY MOUNTING FIG.78 FRONT HOOD PANEL FIG.79 FRONT FENDER FIG.80 FRONT BODY PANEL FIG.81 FLOOR PANEL FIG.82 SIDE BODY PANEL FIG.83 ROOF PANEL FIG.84 FRONT BUMPER FIG.85 REAR BUMPER FIG.86 INSTRUMENT PANEL FIG.87 VENTILATOR FIG.88 REAR AIR CON LOUVER FIG.89 HEATER FIG.90 HEATER BLOWER FIG.91 CONSOLE BOX FIG.92 FLOOR CARPET FIG.93 INTERIOR TRIM FIG.94 CAP/OVER FIG.95 FUEL LID OPENER FIG.96 ROOF LINING FIG.97 EMBLEM FIG.98 GARNISH FIG.99 SPLASH GUARD FIG.100 TIRE CARRIER FIG.101 WINDOW GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR PANEL FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 2ND SEAT FIG.114 3RD SEAT FIG.115 FUEL TANK FIG.116 JACK/TOOL FIG.117 FRONT AIR CONDITIONER FIG.118 REAR AIR CONDITIONER FIG.119 AIR CONDITIONER HARNESS

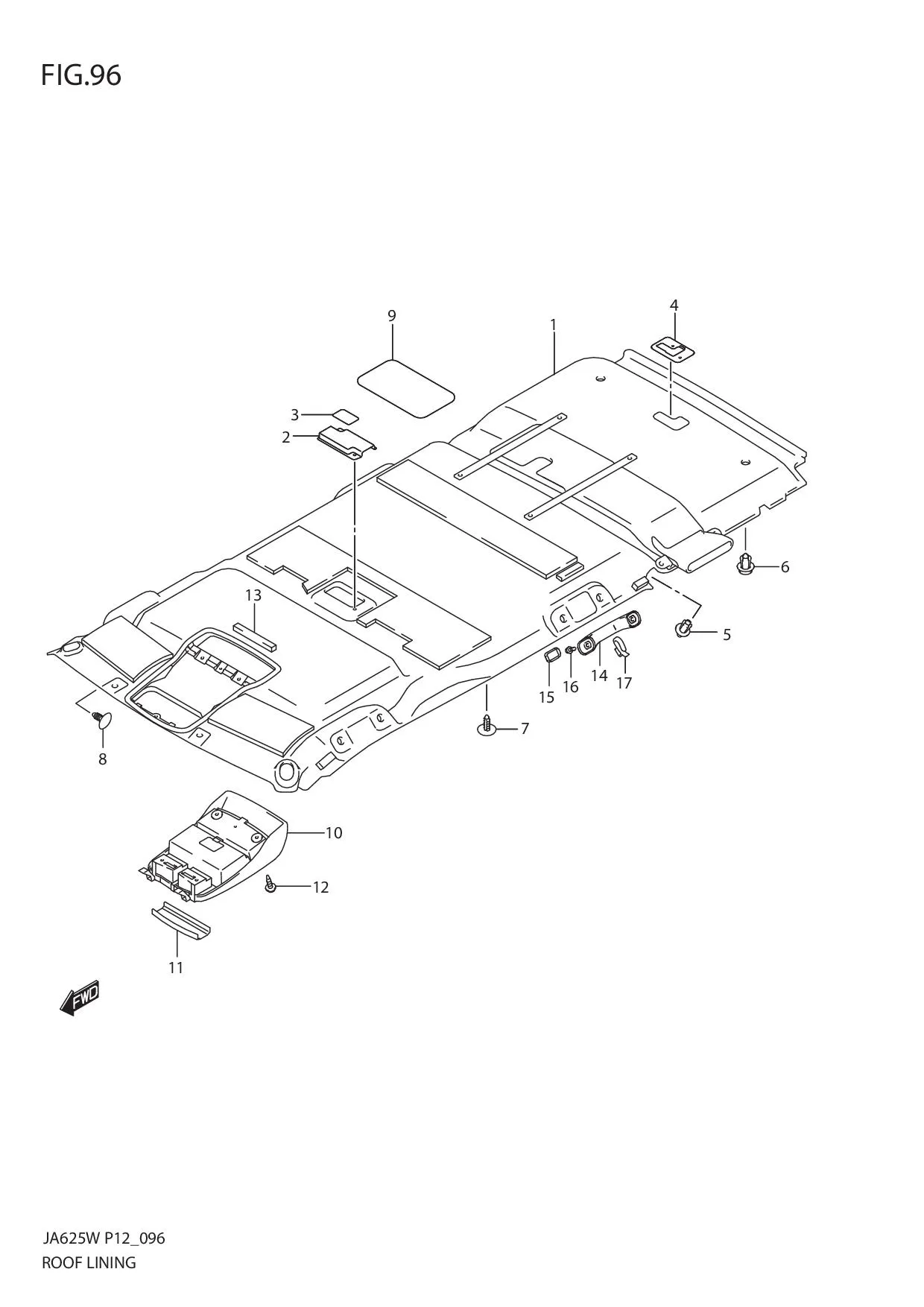

FIG.96 ROOF LINING

FIG.96 ROOF LINING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 78100-52830-R8H	HEADLINING ASSY, ROOF (BEIGE)	1	-
2	DISCONTINUE SUB: 78131-65D10-000	RETAINER, ROOM LAMP	1	-
3	DISCONTINUE SUB: 78133-65D00-000	TAPE, ROOM LAMP	1	-
4	DISCONTINUE SUB: 78112-74F00-000	RETAINER, LUGGAGE LAMP	1	-
5	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
6	09409-06322-R8H	CLIP (BEIGE)	3	Rp22.000
7	09409-06326-R8H	CLIP (BEIGE)	4	Rp18.500
8	DISCONTINUE SUB: 09409-06310-R8H	CLIP (BEIGE)	2	-
9	DISCONTINUE SUB: 78162-65D00-000	SHEET, SILENCER (250X280)	1	-
10	DISCONTINUE SUB: 78170-65DB0-R8H	BOX, OVER HEAD CONSOLE (BEIGE)	1	-
11	DISCONTINUE SUB: 78171-65DA0-000	LENS, MAP LAMP	1	-
12	09136-05063-000	SCREW	4	Rp11.500
13	DISCONTINUE SUB: 78163-65DA0-000	PAD, OVER HEAD CONSOLE	1	-
14	76411-50E00-R8H	GRIP, ASSISTANT (BEIGE)	3	Rp189.500
15	76412-50E00-R8H	CAP, ASSISTANT GRIP (GRAY)	6	Rp33.500
16	02162-0620A-000 SUB: 02162-0620C-000	BOLT	6	Rp5.500
17	DISCONTINUE SUB: 76421-60G00-R8H	HOOK, COAT HANGER (BEIGE)	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
