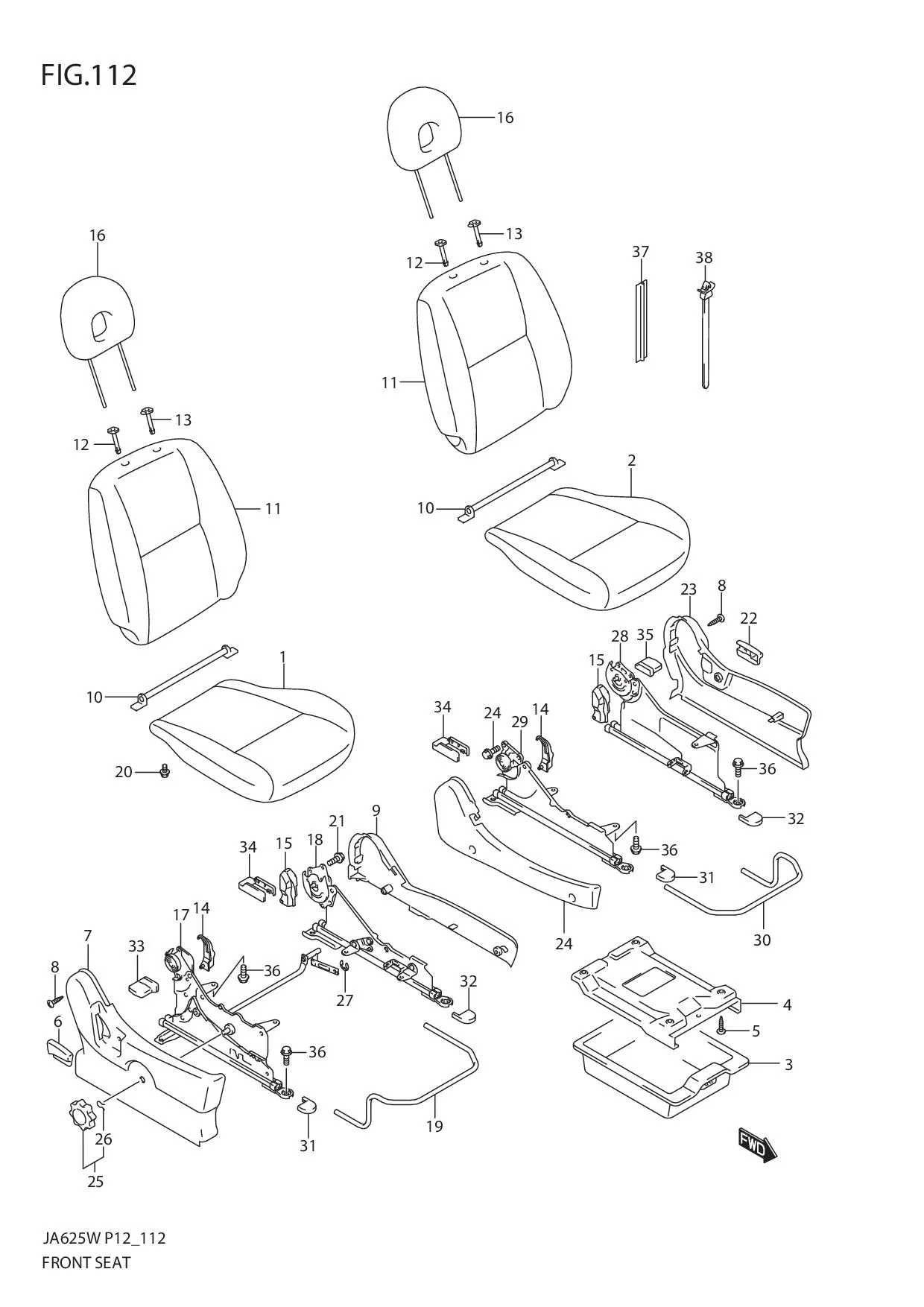

FIG.112 FRONT SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 85101B50JG0NKK4	CUSHION ASSY, FRONT	1	-
2	DISCONTINUE SUB: 85101B50JA0NKK4	CUSHION ASSY, FRONT	1	-
3	DISCONTINUE SUB: 85150-74F11-000	TRAY, CUSHION UNDER	1	-
4	DISCONTINUE SUB: 86521-65DA0-000	BRACKET, UNDER TRAY	1	-
5	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
6	DISCONTINUE SUB: 85211-65DA0-R8H	KNOB, RECLINING RH (BEIGE)	1	-
7	DISCONTINUE SUB: 85220-65DF0-R8H	COVER, RECLINING OUTSIDE RH (BEIGE)	1	-
8	03241-0516A-000 SUB: 03242-05163-000	SCREW	6	Rp17.000
9	DISCONTINUE SUB: 85241-65DA0-R8H	COVER, RECLINING INSIDE RH (BEIGE)	1	-
10	DISCONTINUE SUB: 85250-65DA0-000	ROD, SEAT ADJUSTER	2	-
11	DISCONTINUE SUB: 85301B50JA0NKK4	BACK ASSY, FRONT RH	2	-
12	DISCONTINUE SUB: 85341-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	2	-
13	DISCONTINUE SUB: 85840-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	2	-
14	DISCONTINUE SUB: 85222-50JA0-000	COVER, RECLINING INNER RH	1	-
15	DISCONTINUE SUB: 85242-50JA0-000	COVER, RECLINING INNER LH	1	-
16	DISCONTINUE SUB: 86401B82DN0N000	HEADRESTRAINT ASSY (BEIGE)	2	-
17	DISCONTINUE SUB: 86603-65D10-000	ADJUSTER, OUTSIDE RH	1	-
18	DISCONTINUE SUB: 86601-65D10-000	ADJUSTER, INSIDE RH	1	-
19	DISCONTINUE SUB: 86691-65DA0-000	HANDLE, SEAT ADJUSTER	1	-
20	01550-0812A-000 SUB: 01550B08123N000	BOLT	8	Rp3.500
21	01550-1020A-000 SUB: 01550-10203-000	BOLT	8	Rp21.000
22	DISCONTINUE SUB: 85711-65DA0-R8H	KNOB, RECLINING LH (BEIGE)	1	-
23	DISCONTINUE SUB: 85720-65DA0-R8H	COVER, RECLINING OUTSIDE LH (BEIGE)	1	-
24	DISCONTINUE SUB: 85741-65DA0-R8H	COVER, RECLINING INSIDE LH (BEIGE)	1	-
25	DISCONTINUE SUB: 86170-80G00-R8H	KNOB, LIFTER (BEIGE)	1	-
26	78463-78000-000	•SNAP RING	1	Rp15.000
27	08332-1106A-000 SUB: 08332-11063-000	E RING	1	Rp8.500
28	DISCONTINUE SUB: 86604-65DA0-000	ADJUSTER, OUTSIDE LH	1	-
29	DISCONTINUE SUB: 86602-65DA0-000	ADJUSTER, INSIDE LH	1	-
30	DISCONTINUE SUB: 86891-65DA0-000	HANDLE, SEAT ADJUSTER	1	-
31	DISCONTINUE SUB: 85491-65DA0-R8H	COVER, ADJUSTER FR RH (BEIGE)	2	-
32	DISCONTINUE SUB: 85492-65DA0-R8H	COVER, ADJUSTER FR LH (BEIGE)	2	-
33	DISCONTINUE SUB: 85496-65DA0-R8H	COVER, ADJUSTER OUTSIDE RH (BEIGE)	1	-
34	DISCONTINUE SUB: 85495-65DA0-R8H	COVER, ADJUSTER BRACKET INSIDE (BEIGE)	2	-
35	DISCONTINUE SUB: 85996-65DA0-R8H	COVER, ADJUSTER OUTSIDE LH (BEIGE)	1	-
36	01551-1025A-000 SUB: 01551-10253-000	BOLT	8	Rp29.000
37	85198-70E00-000	TIE, HARNESS	2	-
38	DISCONTINUE SUB: 09407-11402-000	CLAMP	2	-
