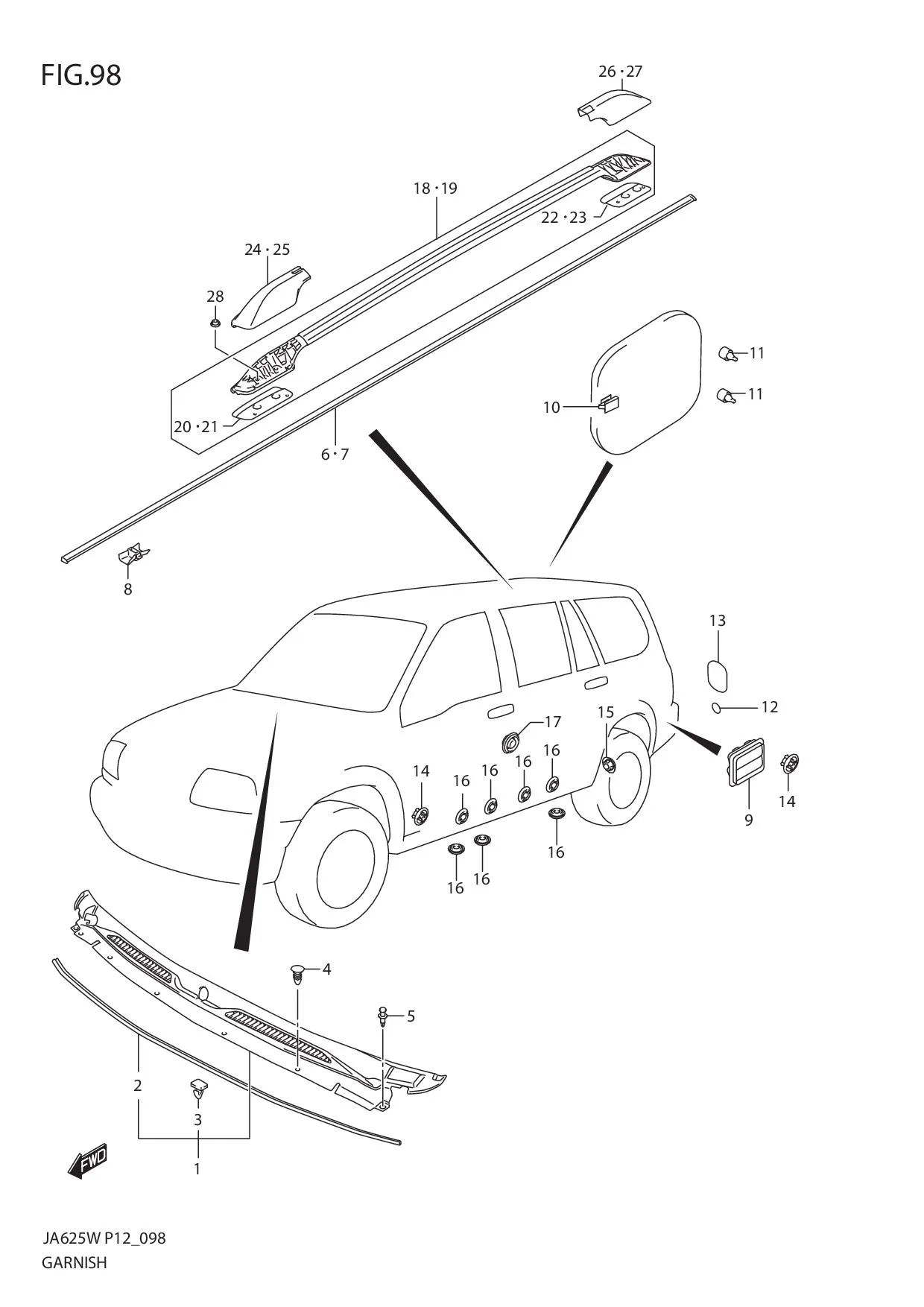

FIG.98 GARNISH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	77310-65D40-5PK SUB: 77310-65D30-5PK	GARNISH, COWL TOP (BLACK)	1	Rp1.966.000
2	77312-65D00-000	•WEATHERSTRIP, COWL TOP	1	Rp299.000
3	83943-86000-000	•CLIP	4	Rp24.500
4	09409-05309-5ES	•CLIP (BLACK)	8	Rp17.500
5	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
6	77541-52D00-5PK	MOLDING, ROOF DRIP RH (BLACK)	1	Rp1.453.500
7	77641-52D00-5PK	MOLDING, ROOF DRIP LH (BLACK)	1	Rp1.453.500
8	78170-79J10-000 SUB: 77543-65D10-000	CLIP	12	Rp52.500
9	77330-65D00-000	OUTLET, VENTILATOR	6	Rp195.500
10	77117-60B00-000	STOPPER, FUEL LID	1	Rp32.500
11	77192-50E00-000	CUSHION, FUEL LID	2	Rp31.500
12	DISCONTINUE SUB: 84761-50X50-000	FILM, BACK PILLAR (140X190)	1	-	CUT AS REQUIRED
13	DISCONTINUE SUB: 84761-50X50-000	FILM, RR COMB PANEL (140X190)	2	-	CUT AS REQUIRED
14	09250M16013-000	CAP (OD:25)	4	Rp7.000
15	09250-17002-000	CAP, RR WHEEL HOUSING	2	Rp18.500
16	09250-10016-000 SUB: 09250B10016N000	CAP	14	Rp14.000
17	09250-15012-000 SUB: 09250B15012N000	CAP	2	Rp5.000
18	DISCONTINUE SUB: 78210-52D00-1YW	RAIL, ROOF RH (BLACK)	1	-
19	DISCONTINUE SUB: 78220-52D00-1YW	RAIL, ROOF LH (BLACK)	1	-
20	DISCONTINUE SUB: 78214-52D00-000	•SEAL, ROOF RAIL BASE FR RH	1	-
21	DISCONTINUE SUB: 78224-52D00-000	•SEAL, ROOF RAIL BASE FR LH	1	-
22	DISCONTINUE SUB: 78215-52D00-000	•SEAL, ROOF RAIL BASE RR RH	1	-
23	DISCONTINUE SUB: 78225-52D00-000	•SEAL, ROOF RAIL BASE RR LH	1	-
24	78216-52D00-1YW	CAP, RAIL FR RH (BLACK)	1	Rp691.000
25	78226-52D00-1YW	CAP, RAIL FR LH (BLACK)	1	Rp691.000
26	78217-52D00-1YW	CAP, RAIL RR RH (BLACK)	1	Rp675.500
27	78227-52D00-1YW	CAP, RAIL RR LH (BLACK)	1	Rp610.500
28	08361M2506A-000 SUB: 08361-2506A-000	NUT	8	Rp7.000
