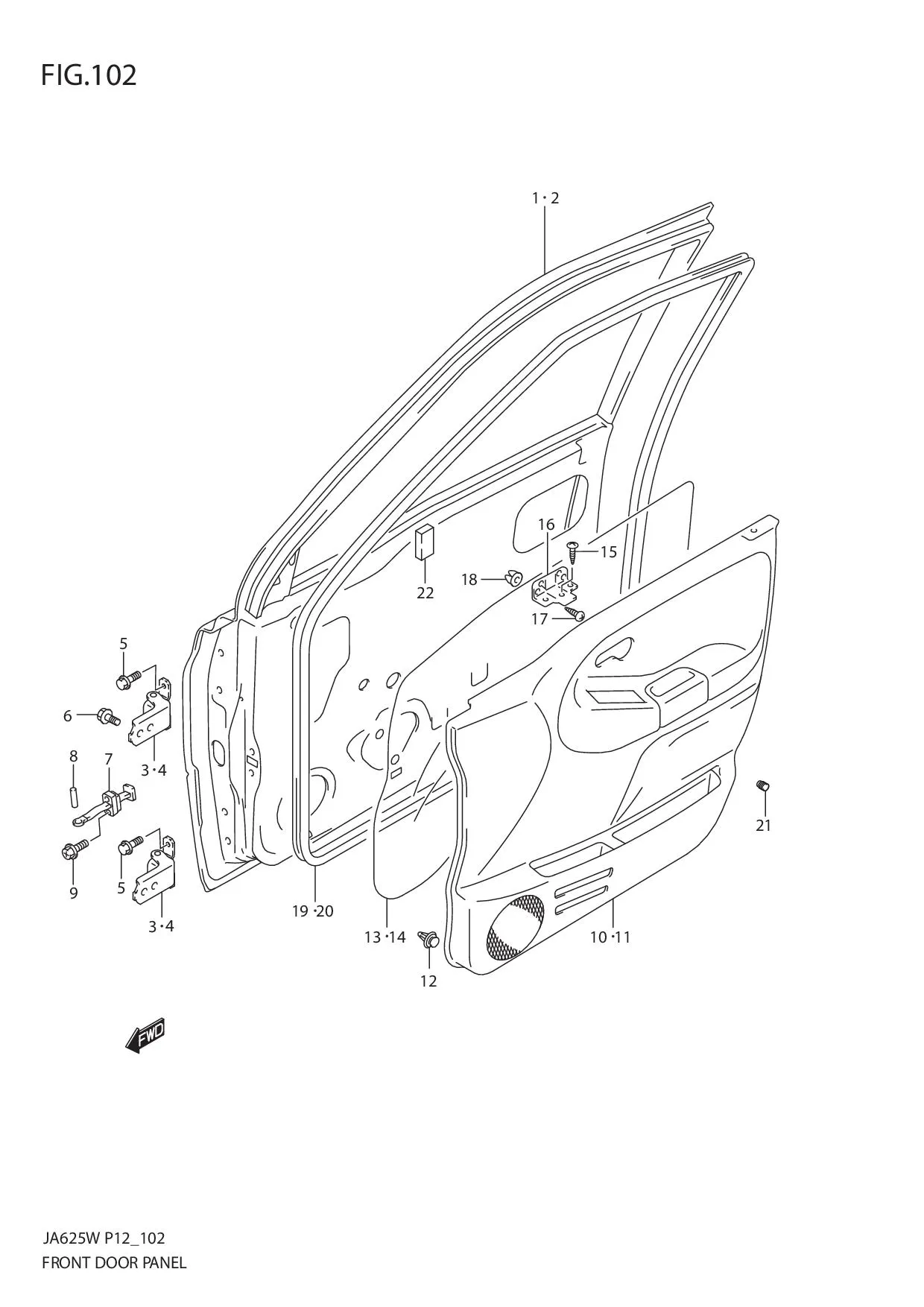

FIG.102 FRONT DOOR PANEL

FIG.102 FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-52811-000
SUB: 68001-65821-000		 PANEL ASSY, FRONT DOOR RH 1 Rp13.048.000
2 68002-52811-000
SUB: 68002-65821-000		 PANEL ASSY, FRONT DOOR LH 1 Rp13.048.000
3 69310-65D00-000 HINGE, DOOR NO.1 2 Rp468.500 UPPER RH,LOWER LH
4 DISCONTINUE
SUB: 69320-65D00-000		 HINGE, DOOR NO.2 2 - UPPER LH,LOWER RH
5 01551-0820A-000
SUB: 01551-08203-000		 BOLT, DOOR 8 Rp17.500
6 01551-0820A-000
SUB: 01551-08203-000		 BOLT, PILLAR 8 Rp17.500
7 81810-65D00-000 STOP, DOOR OPEN 2 Rp402.000
8 81831-70B00-000 PIN, STOP BODY 2 Rp40.500
9 02162-0620A-000
SUB: 02162-0620C-000		 BOLT, STOP 4 Rp5.500
10 DISCONTINUE
SUB: 83710-65DK0-KL2		 TRIM ASSY, RH (BEIGE) 1 -
11 DISCONTINUE
SUB: 83720-65DK0-KL2		 TRIM ASSY, LH (BEIGE) 1 -
12 83714M62B00-000
SUB: 09409M08320-000		 CLIP 14 Rp14.500
13 DISCONTINUE
SUB: 83911-65D01-000		 COVER, DOOR SEALING RH 1 -
14 DISCONTINUE
SUB: 83912-65D01-000		 COVER, DOOR SEALING LH 1 -
15 DISCONTINUE
SUB: 03142-04163-000		 SCREW, CASE 2 -
16 DISCONTINUE
SUB: 84482-65D00-000		 BRACKET, PULL HANDLE 2 -
17 03241-0616C-000
SUB: 03242-06163-000		 SCREW, BRACKET 4 Rp17.000
18 71851M70F00-000
SUB: 09148M06007-000		 NUT, BRACKET 4 Rp4.000
19 84641-52D00-000 WEATHERSTRIP, DR OPENING RH 1 Rp1.258.500
20 84651-52D00-000 WEATHERSTRIP, DR OPENING LH 1 Rp1.258.500
21 82711M70F00-000
SUB: 82711M56B00-000		 STOPPER, DOOR 4 Rp8.500
22 DISCONTINUE
SUB: 11182-75F01-000		 PAD, FR SASH BRKT INR 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
