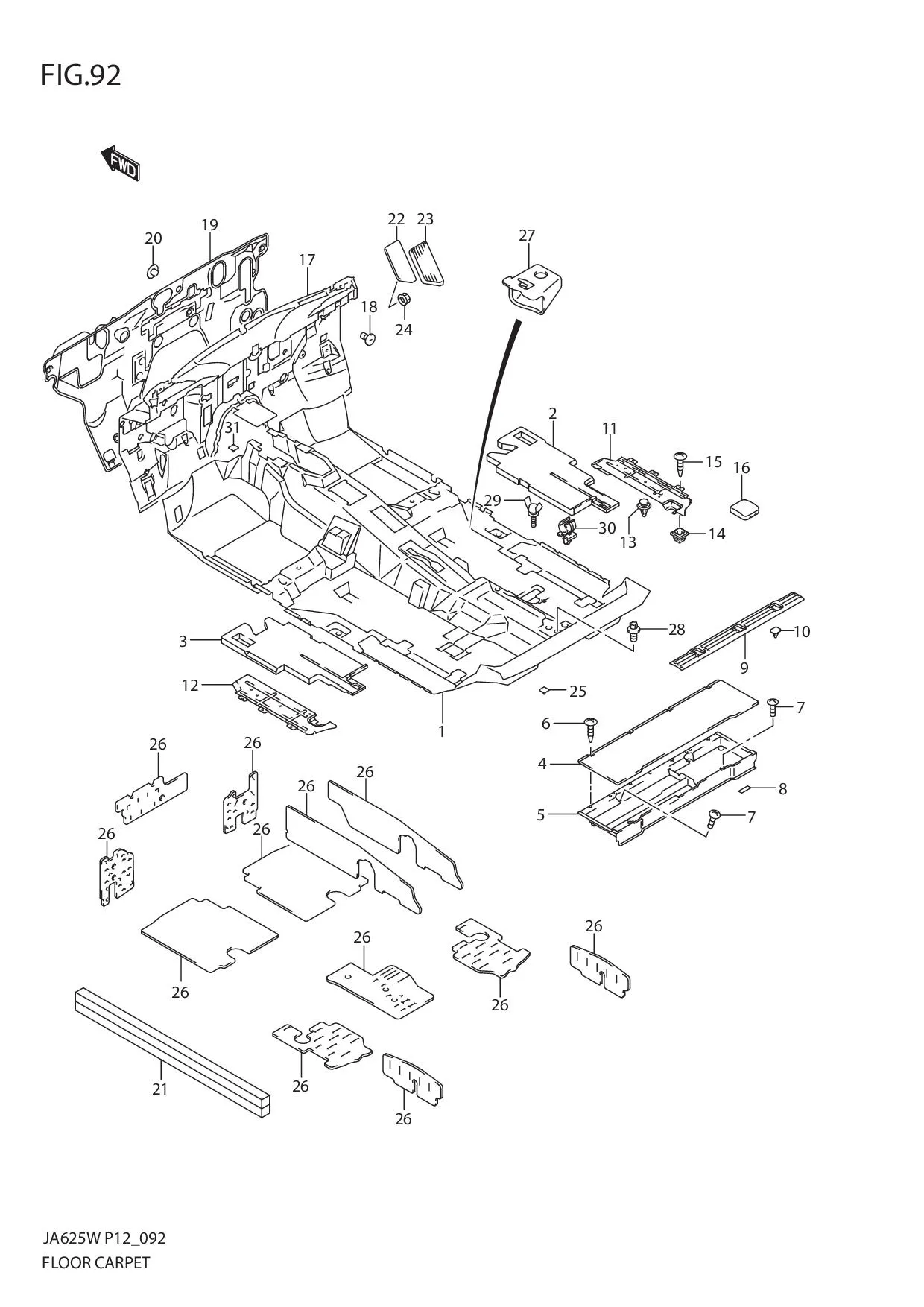

FIG.92 FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 75160-52D70-R9U	CARPET, FR FLOOR (BEIGE)	1	-
2	DISCONTINUE SUB: 75172-52D10-000	PAD, FR FLOOR RH	1	-
3	DISCONTINUE SUB: 75173-52D10-000	PAD, FR FLOOR LH	1	-
4	DISCONTINUE SUB: 75540-52D01-R9U	LID, RR LUGGAGE BOX (BEIGE)	1	-
5	DISCONTINUE SUB: 75550-52D01-R8H	BOX, RR LUGGAGE (BEIGE)	1	-
6	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500
7	02142-0612A-000 SUB: 02142B06123N000	SCREW	4	Rp4.000
8	DISCONTINUE SUB: 75181-52D00-000	SEAL, RR FLOOR RR (25X70)	2	-
9	DISCONTINUE SUB: 75191-65D10-R8H	GARNISH, MAT END (BEIGE)	1	-
10	77259-71B00-000	CLIP	4	Rp25.500
11	DISCONTINUE SUB: 75560-52D10-000	PLATE, FLOOR STEP RH	1	-
12	DISCONTINUE SUB: 75570-52D00-000	PLATE, FLOOR STEP LH	1	-
13	DISCONTINUE SUB: 09409-08334-000	•CLIP	6	-
14	09148-05018-000	NUT	6	Rp11.500
15	03541-0512A-000 SUB: 03541-05123L000	SCREW	6	Rp3.500
16	DISCONTINUE SUB: 75192-65D20-R8H	CAP, MAT END GARNISH (BEIGE)	3	-
17	DISCONTINUE SUB: 75210-65D30-000	SILENCER, DASH PANEL	1	-
18	09148-05042-000	CLIP	7	Rp17.500
19	DISCONTINUE SUB: 75280-65D40-000	SILENCER, DASH OUTER	1	-
20	09148-05037-000	CLIP	5	Rp18.000
21	DISCONTINUE SUB: 75221-65D00-000	SILENCER, FRAME UPPER	2	-
22	DISCONTINUE SUB: 75810-56B00-000	PEDAL, FOOTREST	1	-
23	DISCONTINUE SUB: 75821-56B00-000	PAD, FOOTREST PEDAL	1	-
24	DISCONTINUE SUB: 08316-20083-000	NUT	2	-
25	DISCONTINUE SUB: 75171-65D00-000	CLIP, FLOOR CARPET	4	-
26	99611-60A01-000	SHEET, SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
27	DISCONTINUE SUB: 75541-52D00-R8H	COVER, 2ND SEAT BRACKET (BEIGE)	2	-
28	DISCONTINUE SUB: 09119-10071-000	BOLT (10X20)	2	-
29	DISCONTINUE SUB: 09118-06118-000	BOLT, JACK MOUNTING	1	-
30	09403-13307-000	CLAMP, WHEEL WRENCH	2	Rp29.000
