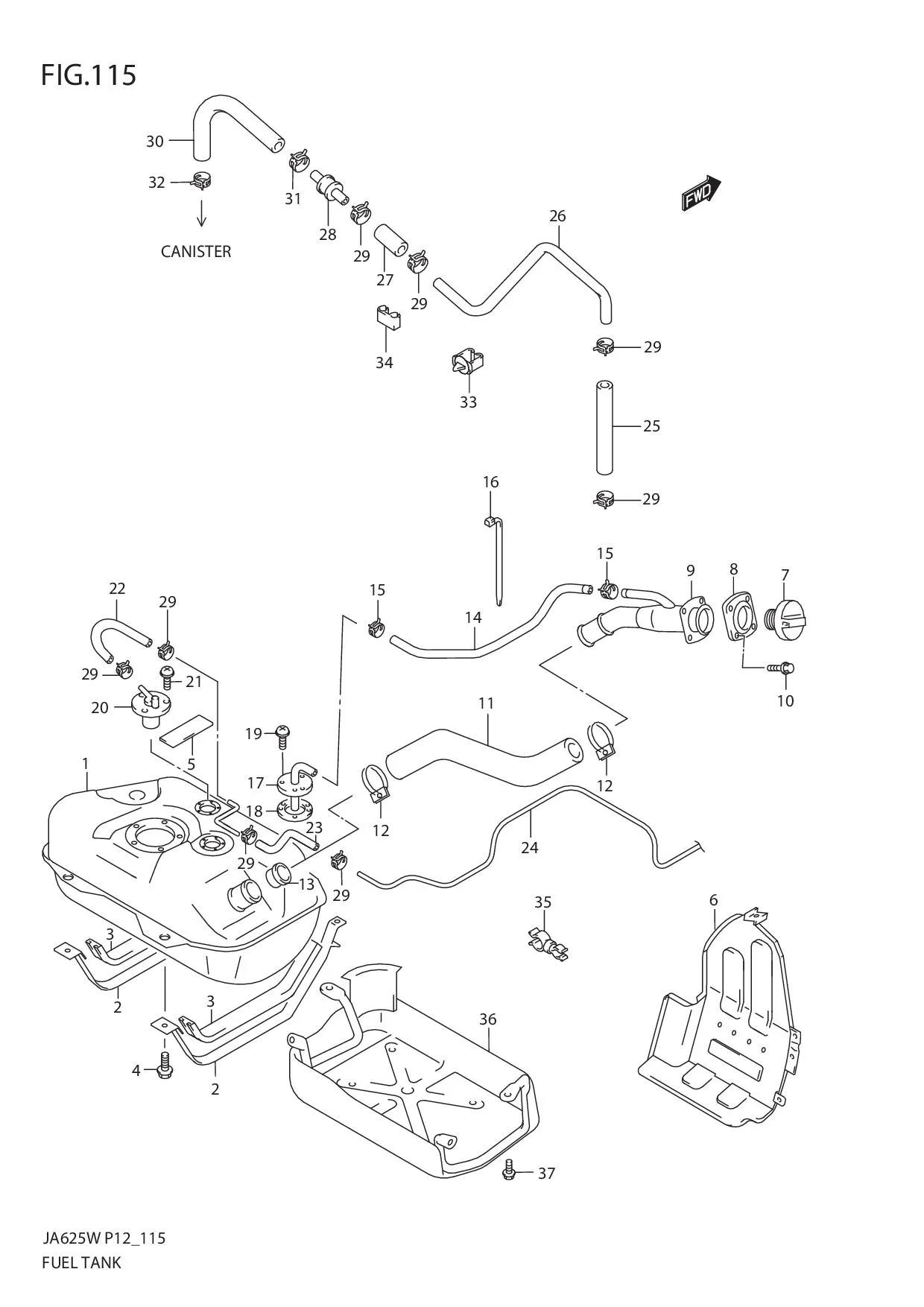

FIG.115 FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	89101-65DA1-000 SUB: 89101-65DA0-000	TANK ASSY, FUEL	1	Rp8.446.500
2	DISCONTINUE SUB: 89360-65D00-000	BELT, FUEL TANK FIXER	2	-
3	DISCONTINUE SUB: 89385-65D00-000	PAD, FUEL BELT	2	-
4	DISCONTINUE SUB: 09118-10052-000	BOLT (10X30)	4	-
5	DISCONTINUE SUB: 89381-65D10-000	PAD, FUEL TANK	2	-
6	89311-65D00-000	PROTECTOR, FILLER HOSE	1	-
7	89260-50J00-000	CAP ASSY, FUEL FILLER	1	Rp233.000
8	89285-75F00-000	PACKING, FUEL FILLER	1	Rp69.000
9	DISCONTINUE SUB: 89201-65D11-000	NECK, FUEL FILLER	1	-
10	09116M05014-000	BOLT (5X20)	3	Rp5.500
11	89241-52D10-000	HOSE, FUEL TANK FILLER	1	Rp642.500
12	09400M45L01-000 SUB: 09400M45311-000	CLAMP	2	Rp32.500
13	89280-77A00-000	VALVE, FUEL TANK INLET	1	Rp107.000
14	09355-11165-00B	HOSE, BREATHER	1	Rp283.000	L:2000!620
15	09401-14404-000	CLIP	2	Rp16.500
16	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	1	-
17	89250-65D01-000 SUB: 89250-65D00-000	PIPE, FUEL TANK BREATHER	1	Rp315.000
18	DISCONTINUE SUB: 89255-65D00-000	GASKET, BREATHER PIPE	1	-
19	DISCONTINUE SUB: 09136-05045-000	SCREW (5X10)	3	-
20	DISCONTINUE SUB: 89485-65D00-000	VALVE, FUEL CUT	1	-
21	DISCONTINUE SUB: 09136-05045-000	SCREW (5X10)	3	-
22	09355-54115-600	HOSE	1	Rp106.500	L:600!180
23	09355-54115-600	HOSE	1	Rp106.500	L:600!180
24	DISCONTINUE SUB: 89431-52D00-000	PIPE, EVAPORATION MAIN	1	-
25	09355-54115-600	HOSE	1	Rp106.500	L:600!200
26	DISCONTINUE SUB: 89432-65D11-000	PIPE, CANISTER INLET	1	-
27	09355-54115-600	HOSE	1	Rp106.500	L:600!60
28	85451-75100-000	VALVE, 2 WAY CHECK	1	Rp360.000
29	09401-11413-000 SUB: 09401B11413N000	CLIP	8	Rp2.500
30	DISCONTINUE SUB: 09359-35751-600	HOSE	1	-	L:600!150
31	09401-08411-000	CLIP	1	Rp12.500
32	DISCONTINUE SUB: 09401-06405-000	CLIP	1	-
33	DISCONTINUE SUB: 09403-06321-000	CLAMP	3	-
34	09408-00211-000	CLAMP	1	-
35	DISCONTINUE SUB: 09408-00070-000	CLAMP	1	-
36	DISCONTINUE SUB: 89320-65D01-000	PROTECTOR, TANK	1	-
37	DISCONTINUE SUB: 09118-10052-000	BOLT (10X30)	4	-
