GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAMEFIG.77 BODY MOUNTINGFIG.78 FRONT HOOD PANELFIG.79 FRONT FENDERFIG.80 FRONT BODY PANELFIG.81 FLOOR PANELFIG.82 SIDE BODY PANELFIG.83 ROOF PANELFIG.84 FRONT BUMPERFIG.85 REAR BUMPERFIG.86 INSTRUMENT PANELFIG.87 VENTILATORFIG.88 REAR AIR CON LOUVERFIG.89 HEATERFIG.90 HEATER BLOWERFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 CAP/OVERFIG.95 FUEL LID OPENERFIG.96 ROOF LININGFIG.97 EMBLEMFIG.98 GARNISHFIG.99 SPLASH GUARDFIG.100 TIRE CARRIERFIG.101 WINDOW GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR PANELFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 2ND SEATFIG.114 3RD SEATFIG.115 FUEL TANKFIG.116 JACK/TOOLFIG.117 FRONT AIR CONDITIONERFIG.118 REAR AIR CONDITIONERFIG.119 AIR CONDITIONER HARNESS

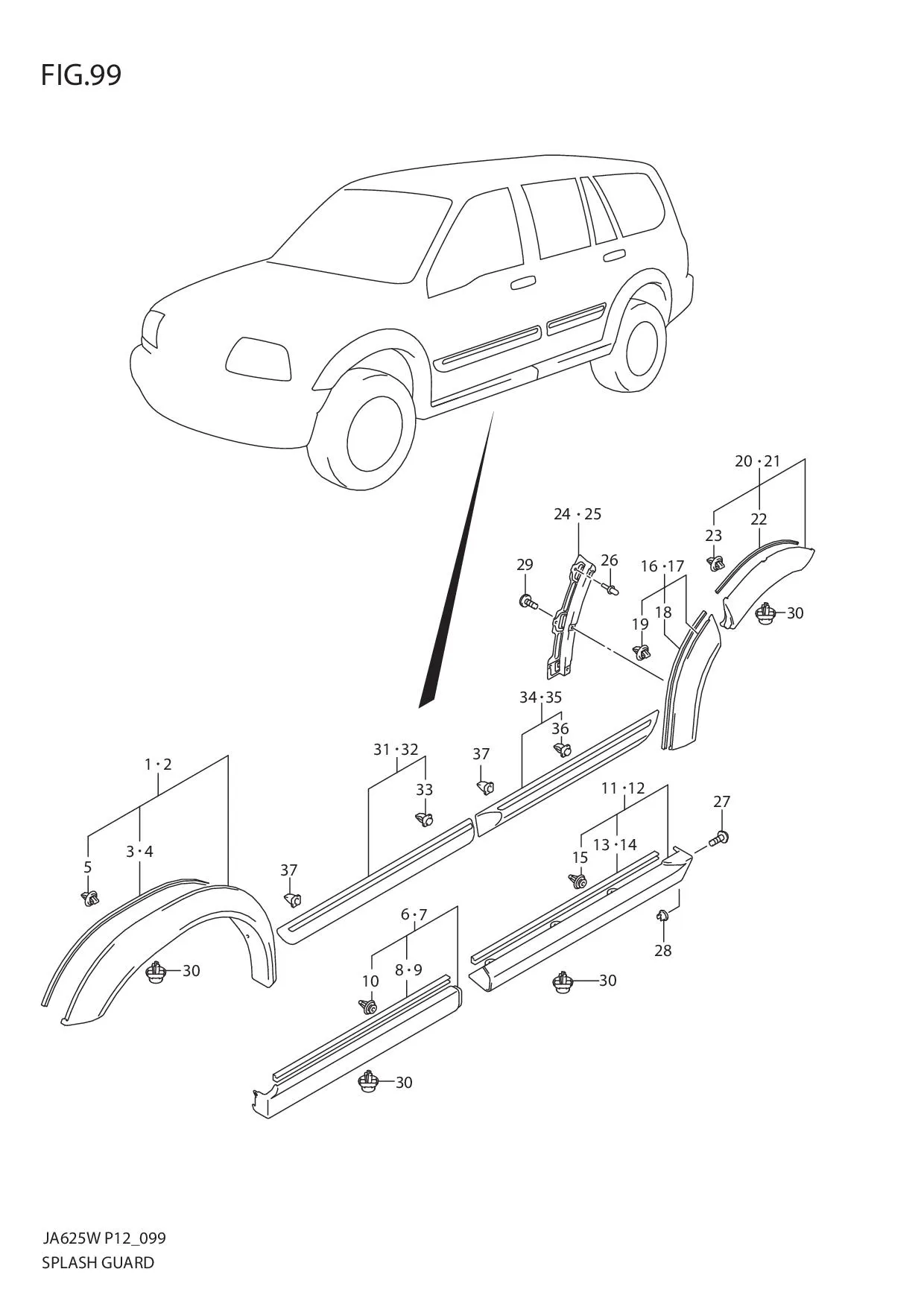

FIG.99 SPLASH GUARD

FIG.99 SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1-1 77550-52D01-ZA3 GUARD, FENDER SPLASH RH (WINE) 1 -
1-2 77550-52D01-ZA4 GUARD, FENDER SPLASH RH (BEIGE) 1 -
1-3 77550-52D01-ZA5 GUARD, FENDER SPLASH RH (WHITE) 1 -
1-4 DISCONTINUE
SUB: 77550-52D01-ZJ3		 GUARD, FENDER SPLASH RH (BLACK) 1 -
1-5 77550-52D01-Z2S GUARD, FENDER SPLASH RH (SILVER) 1 -
1-6 77550-52D01-Z2T GUARD, FENDER SPLASH RH (GREEN) 1 -
1-7 77550-52D01-Z2U GUARD, FENDER SPLASH RH (BLUE) 1 -
2-1 77650-52D01-ZA3 GUARD, FENDER SPLASH LH (WINE) 1 -
2-2 77650-52D01-ZA4 GUARD, FENDER SPLASH LH (BEIGE) 1 -
2-3 77650-52D01-ZA5 GUARD, FENDER SPLASH LH (WHITE) 1 -
2-4 77650-52D01-ZJ3 GUARD, FENDER SPLASH LH (BLACK) 1 Rp3.586.000
2-5 77650-52D01-Z2S GUARD, FENDER SPLASH LH (SILVER) 1 -
2-6 77650-52D01-Z2T GUARD, FENDER SPLASH LH (GREEN) 1 -
2-7 77650-52D01-Z2U GUARD, FENDER SPLASH LH (BLUE) 1 -
3-1 77552-52D01-ZA3 •PROTECTOR, GUARD EDGE RH (WINE) 1 -
3-2 77552-52D01-ZA4 •PROTECTOR, GUARD EDGE RH (BEIGE) 1 -
3-3 77552-52D01-ZA5 •PROTECTOR, GUARD EDGE RH (WHITE) 1 -
3-4 77552-52D01-ZJ3 •PROTECTOR, GUARD EDGE RH (BLACK) 1 Rp367.500
3-5 77552-52D01-Z2S •PROTECTOR, GUARD EDGE RH (SILVER) 1 -
3-6 77552-52D01-Z2T •PROTECTOR, GUARD EDGE RH (GREEN) 1 -
3-7 77552-52D01-Z2U •PROTECTOR, GUARD EDGE RH (BLUE) 1 -
4-1 77652-52D01-ZA3 •PROTECTOR, GUARD EDGE LH (WINE) 1 -
4-2 77652-52D01-ZA4 •PROTECTOR, GUARD EDGE LH (BEIGE) 1 -
4-3 77652-52D01-ZA5 •PROTECTOR, GUARD EDGE LH (WHITE) 1 -
4-4 77652-52D01-ZJ3 •PROTECTOR, GUARD EDGE LH (BLACK) 1 Rp358.500
4-5 77652-52D01-Z2S •PROTECTOR, GUARD EDGE LH (SILVER) 1 -
4-6 77652-52D01-Z2T •PROTECTOR, GUARD EDGE LH (GREEN) 1 -
4-7 77652-52D01-Z2U •PROTECTOR, GUARD EDGE LH (BLUE) 1 -
5 09409-09304-000 •CLIP 18 Rp17.000
6-1 77560-52D01-ZA3 GUARD, SIDE SPLASH FR RH (WINE) 1 -
6-2 77560-52D01-ZA4 GUARD, SIDE SPLASH FR RH (BEIGE) 1 -
6-3 77560-52D01-ZA5 GUARD, SIDE SPLASH FR RH (WHITE) 1 -
6-4 DISCONTINUE
SUB: 77560-52D01-ZJ3		 GUARD, SIDE SPLASH FR RH (BLACK) 1 -
6-5 77560-52D01-Z2S GUARD, SIDE SPLASH FR RH (SILVER) 1 -
6-6 77560-52D01-Z2T GUARD, SIDE SPLASH FR RH (GREEN) 1 -
6-7 77560-52D01-Z2U GUARD, SIDE SPLASH FR RH (BLUE) 1 -
7-1 77660-52D01-ZA3 GUARD, SIDE SPLASH FR LH (WINE) 1 -
7-2 77660-52D01-ZA4 GUARD, SIDE SPLASH FR LH (BEIGE) 1 -
7-3 77660-52D01-ZA5 GUARD, SIDE SPLASH FR LH (WHITE) 1 -
7-4 DISCONTINUE
SUB: 77660-52D01-ZJ3		 GUARD, SIDE SPLASH FR LH (BLACK) 1 -
7-5 77660-52D01-Z2S GUARD, SIDE SPLASH FR LH (SILVER) 1 -
7-6 77660-52D01-Z2T GUARD, SIDE SPLASH FR LH (GREEN) 1 -
7-7 77660-52D01-Z2U GUARD, SIDE SPLASH FR LH (BLUE) 1 -
8-1 77563-52D01-ZA3 •PROTECTOR, GUARD EDGE RH (WINE) 1 -
8-2 77563-52D01-ZA4 •PROTECTOR, GUARD EDGE RH (BEIGE) 1 -
8-3 77563-52D01-ZA5 •PROTECTOR, GUARD EDGE RH (WHITE) 1 -
8-4 77563-52D01-ZJ3 •PROTECTOR, GUARD EDGE RH (BLACK) 1 Rp299.500
8-5 77563-52D01-Z2S •PROTECTOR, GUARD EDGE RH (SILVER) 1 -
8-6 77563-52D01-Z2T •PROTECTOR, GUARD EDGE RH (GREEN) 1 -
8-7 77563-52D01-Z2U •PROTECTOR, GUARD EDGE RH (BLUE) 1 -
9-1 77562-52D01-ZA3 •PROTECTOR, GUARD EDGE LH (WINE) 1 -
9-2 77562-52D01-ZA4 •PROTECTOR, GUARD EDGE LH (BEIGE) 1 -
9-3 77562-52D01-ZA5 •PROTECTOR, GUARD EDGE LH (WHITE) 1 -
9-4 77563-52D01-ZJ3
SUB: 77562-52D01-ZJ3		 •PROTECTOR, GUARD EDGE LH (BLACK) 1 Rp299.500
9-5 77562-52D01-Z2S •PROTECTOR, GUARD EDGE LH (SILVER) 1 -
9-6 77562-52D01-Z2T •PROTECTOR, GUARD EDGE LH (GREEN) 1 -
9-7 77562-52D01-Z2U •PROTECTOR, GUARD EDGE LH (BLUE) 1 -
10 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 14 Rp9.000
11-1 77570-52D01-ZA3 GUARD, SIDE SPLASH RR RH (WINE) 1 -
11-2 77570-52D01-ZA4 GUARD, SIDE SPLASH RR RH (BEIGE) 1 -
11-3 77570-52D01-ZA5 GUARD, SIDE SPLASH RR RH (WHITE) 1 -
11-4 DISCONTINUE
SUB: 77570-52D01-ZJ3		 GUARD, SIDE SPLASH RR RH (BLACK) 1 -
11-5 77570-52D01-Z2S GUARD, SIDE SPLASH RR RH (SILVER) 1 -
11-6 77570-52D01-Z2T GUARD, SIDE SPLASH RR RH (GREEN) 1 -
11-7 77570-52D01-Z2U GUARD, SIDE SPLASH RR RH (BLUE) 1 -
12-1 77670-52D01-ZA3 GUARD, SIDE SPLASH RR LH (WINE) 1 -
12-2 77670-52D01-ZA4 GUARD, SIDE SPLASH RR LH (BEIGE) 1 -
12-3 77670-52D01-ZA5 GUARD, SIDE SPLASH RR LH (WHITE) 1 -
12-4 DISCONTINUE
SUB: 77670-52D01-ZJ3		 GUARD, SIDE SPLASH RR LH (BLACK) 1 -
12-5 77670-52D01-Z2S GUARD, SIDE SPLASH RR LH (SILVER) 1 -
12-6 77670-52D01-Z2T GUARD, SIDE SPLASH RR LH (GREEN) 1 -
12-7 77670-52D01-Z2U GUARD, SIDE SPLASH RR LH (BLUE) 1 -
13-1 77562-52D01-ZA3 •PROTECTOR, GUARD EDGE RH (WINE) 1 -
13-2 77562-52D01-ZA4 •PROTECTOR, GUARD EDGE RH (BEIGE) 1 -
13-3 77562-52D01-ZA5 •PROTECTOR, GUARD EDGE RH (WHITE) 1 -
13-4 77563-52D01-ZJ3
SUB: 77562-52D01-ZJ3		 •PROTECTOR, GUARD EDGE RH (BLACK) 1 Rp299.500
13-5 77562-52D01-Z2S •PROTECTOR, GUARD EDGE RH (SILVER) 1 -
13-6 77562-52D01-Z2T •PROTECTOR, GUARD EDGE RH (GREEN) 1 -
13-7 77562-52D01-Z2U •PROTECTOR, GUARD EDGE RH (BLUE) 1 -
14-1 77563-52D01-ZA3 •PROTECTOR, GUARD EDGE LH (WINE) 1 -
14-2 77563-52D01-ZA4 •PROTECTOR, GUARD EDGE LH (BEIGE) 1 -
14-3 77563-52D01-ZA5 •PROTECTOR, GUARD EDGE LH (WHITE) 1 -
14-4 77563-52D01-ZJ3 •PROTECTOR, GUARD EDGE LH (BLACK) 1 Rp299.500
14-5 77563-52D01-Z2S •PROTECTOR, GUARD EDGE LH (SILVER) 1 -
14-6 77563-52D01-Z2T •PROTECTOR, GUARD EDGE LH (GREEN) 1 -
14-7 77563-52D01-Z2U •PROTECTOR, GUARD EDGE LH (BLUE) 1 -
15 71812-78F00-000
SUB: 71812B78F00N000		 •CLIP 14 Rp9.000
16-1 77590-52D01-ZA3 GUARD, RR DR SPLASH RH (WINE) 1 -
16-2 77590-52D01-ZA4 GUARD, RR DR SPLASH RH (BEIGE) 1 -
16-3 77590-52D01-ZA5 GUARD, RR DR SPLASH RH (WHITE) 1 -
16-4 DISCONTINUE
SUB: 77590-52D01-ZJ3		 GUARD, RR DR SPLASH RH (BLACK) 1 -
16-5 77590-52D01-Z2S GUARD, RR DR SPLASH RH (SILVER) 1 -
16-6 77590-52D01-Z2T GUARD, RR DR SPLASH RH (GREEN) 1 -
16-7 77590-52D01-Z2U GUARD, RR DR SPLASH RH (BLUE) 1 -
17-1 77690-52D01-ZA3 GUARD, RR DR SPLASH LH (WINE) 1 -
17-2 77690-52D01-ZA4 GUARD, RR DR SPLASH LH (BEIGE) 1 -
17-3 77690-52D01-ZA5 GUARD, RR DR SPLASH LH (WHITE) 1 -
17-4 77690-52D01-ZJ3 GUARD, RR DR SPLASH LH (BLACK) 1 Rp1.956.000
17-5 77690-52D01-Z2S GUARD, RR DR SPLASH LH (SILVER) 1 -
17-6 77690-52D01-Z2T GUARD, RR DR SPLASH LH (GREEN) 1 -
17-7 77690-52D01-Z2U GUARD, RR DR SPLASH LH (BLUE) 1 -
18-1 77592-52D01-ZA3 •PROTECTOR, GUARD EDGE (WINE) 2 -
18-2 77592-52D01-ZA4 •PROTECTOR, GUARD EDGE (GEIGE) 2 -
18-3 77592-52D01-ZA5 •PROTECTOR, GUARD EDGE (WHITE) 2 -
18-4 77582-52D01-ZJ3
SUB: 77592-52D01-ZJ3		 •PROTECTOR, GUARD EDGE (BLACK) 2 Rp226.500
18-5 77592-52D01-Z2S •PROTECTOR, GUARD EDGE (SILVER 2 -
18-6 77592-52D01-Z2T •PROTECTOR, GUARD EDGE (GREEN) 2 -
18-7 77592-52D01-Z2U •PROTECTOR, GUARD EDGE (BLUE) 2 -
19 09409-09304-000 •CLIP 8 Rp17.000
20-1 77580-52D01-ZA3 GUARD, RR QTR SPLASH RH (WINE) 1 -
20-2 77580-52D01-ZA4 GUARD, RR QTR SPLASH RH (BEIGE) 1 -
20-3 77580-52D01-ZA5 GUARD, RR QTR SPLASH RH (WHITE) 1 -
20-4 77580-52D01-ZJ3 GUARD, RR QTR SPLASH RH (BLACK) 1 Rp1.865.500
20-5 77580-52D01-Z2S GUARD, RR QTR SPLASH RH (SILVER) 1 -
20-6 77580-52D01-Z2T GUARD, RR QTR SPLASH RH (GREEN) 1 -
20-7 77580-52D01-Z2U GUARD, RR QTR SPLASH RH (BLUE) 1 -
21-1 77680-52D01-ZA3 GUARD, RR QTR SPLASH LH (WINE) 1 -
21-2 77680-52D01-ZA4 GUARD, RR QTR SPLASH LH (BEIGE) 1 -
21-3 77680-52D01-ZA5 GUARD, RR QTR SPLASH LH (WHITE) 1 -
21-4 DISCONTINUE
SUB: 77680-52D01-ZJ3		 GUARD, RR QTR SPLASH LH (BLACK) 1 -
21-5 77680-52D01-Z2S GUARD, RR QTR SPLASH LH (SILVER) 1 -
21-6 77680-52D01-Z2T GUARD, RR QTR SPLASH LH (GREEN) 1 -
21-7 77680-52D01-Z2U GUARD, RR QTR SPLASH LH (BLUE) 1 -
22-1 77582-52D01-ZA3 •PROTECTOR, GUARD EDGE (WINE) 2 -
22-2 77582-52D01-ZA4 •PROTECTOR, GUARD EDGE (BEIGE) 2 -
22-3 77582-52D01-ZA5 •PROTECTOR, GUARD EDGE (WHITE) 2 -
22-4 77582-52D01-ZJ3 •PROTECTOR, GUARD EDGE (BLACK) 2 Rp226.500
22-5 77582-52D01-Z2S •PROTECTOR, GUARD EDGE (SILVER) 2 -
22-6 77582-52D01-Z2T •PROTECTOR, GUARD EDGE (GREEN) 2 -
22-7 77582-52D01-Z2U •PROTECTOR, GUARD EDGE (BLUE) 2 -
23 09409-09304-000 •CLIP 8 Rp17.000
24 DISCONTINUE
SUB: 77595-52D00-000		 HOLDER, RR DR GUARD RH 1 -
25 DISCONTINUE
SUB: 77695-52D00-000		 HOLDER, RR DR GUARD LH 1 -
26 DISCONTINUE
SUB: 09229-04044-000		 RIVET, RR DR GUARD HOLDER 6 -
27 09132-06022-000 SCREW, SIDE GUARD (6X20) 2 Rp23.000
28 71851M70F00-000
SUB: 09148M06007-000		 NUT, SIDE GUARD 2 Rp4.000
29 09132-05046-000 SCREW, RR DR GUARD (5X12) 8 Rp13.500
30 09409M07L01-000
SUB: 09409M07332-000		 CLIP 30 Rp5.000
31-1 77520-52D01-ZA3 MOLDING, FR DR SIDE RH (WINE) 1 -
31-2 77520-52D01-ZA4 MOLDING, FR DR SIDE RH (BEIGE) 1 -
31-3 77520-52D01-ZA5 MOLDING, FR DR SIDE RH (WHITE) 1 -
31-4 DISCONTINUE
SUB: 77520-52D01-ZJ3		 MOLDING, FR DR SIDE RH (BLACK) 1 -
31-5 77520-52D01-Z2S MOLDING, FR DR SIDE RH (SILVER) 1 -
31-6 77520-52D01-Z2T MOLDING, FR DR SIDE RH (GREEN) 1 -
31-7 77520-52D01-Z2U MOLDING, FR DR SIDE RH (BLUE) 1 -
32-1 77620-52D01-ZA3 MOLDING, FR DR SIDE LH (WINE) 1 -
32-2 77620-52D01-ZA4 MOLDING, FR DR SIDE LH (BEIGE) 1 -
32-3 77620-52D01-ZA5 MOLDING, FR DR SIDE LH (WHITE) 1 -
32-4 DISCONTINUE
SUB: 77620-52D01-ZJ3		 MOLDING, FR DR SIDE LH (BLACK) 1 -
32-5 77620-52D01-Z2S MOLDING, FR DR SIDE LH (SILVER) 1 -
32-6 77620-52D01-Z2T MOLDING, FR DR SIDE LH (GREEN) 1 -
32-7 77620-52D01-Z2U MOLDING, FR DR SIDE LH (BLUE) 1 -
33 09409-10309-000 •CLIP 4 Rp20.000
34-1 77530-52D01-ZA3 MOLDING, RR DR SIDE RH (WINE) 1 -
34-2 77530-52D01-ZA4 MOLDING, RR DR SIDE RH (BEIGE) 1 -
34-3 77530-52D01-ZA5 MOLDING, RR DR SIDE RH (WHITE) 1 -
34-4 DISCONTINUE
SUB: 77530-52D01-ZJ3		 MOLDING, RR DR SIDE RH (BLACK) 1 -
34-5 77530-52D01-Z2S MOLDING, RR DR SIDE RH (SILVER) 1 -
34-6 77530-52D01-Z2T MOLDING, RR DR SIDE RH (GREEN) 1 -
34-7 77530-52D01-Z2U MOLDING, RR DR SIDE RH (BLUE) 1 -
35-1 77630-52D01-ZA3 MOLDING, RR DR SIDE LH (WINE) 1 -
35-2 77630-52D01-ZA4 MOLDING, RR DR SIDE LH (BEIGE) 1 -
35-3 77630-52D01-ZA5 MOLDING, RR DR SIDE LH (WHITE) 1 -
35-4 DISCONTINUE
SUB: 77630-52D01-ZJ3		 MOLDING, RR DR SIDE LH (BLACK) 1 -
35-5 77630-52D01-Z2S MOLDING, RR DR SIDE LH (SILVER) 1 -
35-6 77630-52D01-Z2T MOLDING, RR DR SIDE LH (GREEN) 1 -
35-7 77630-52D01-Z2U MOLDING, RR DR SIDE LH (BLUE) 1 -
36 09409-10309-000 •CLIP 4 Rp20.000
37 09410-00076-000 CLIP 12 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
