GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAMEFIG.77 BODY MOUNTINGFIG.78 FRONT HOOD PANELFIG.79 FRONT FENDERFIG.80 FRONT BODY PANELFIG.81 FLOOR PANELFIG.82 SIDE BODY PANELFIG.83 ROOF PANELFIG.84 FRONT BUMPERFIG.85 REAR BUMPERFIG.86 INSTRUMENT PANELFIG.87 VENTILATORFIG.88 REAR AIR CON LOUVERFIG.89 HEATERFIG.90 HEATER BLOWERFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 CAP/OVERFIG.95 FUEL LID OPENERFIG.96 ROOF LININGFIG.97 EMBLEMFIG.98 GARNISHFIG.99 SPLASH GUARDFIG.100 TIRE CARRIERFIG.101 WINDOW GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR PANELFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 2ND SEATFIG.114 3RD SEATFIG.115 FUEL TANKFIG.116 JACK/TOOLFIG.117 FRONT AIR CONDITIONERFIG.118 REAR AIR CONDITIONERFIG.119 AIR CONDITIONER HARNESS

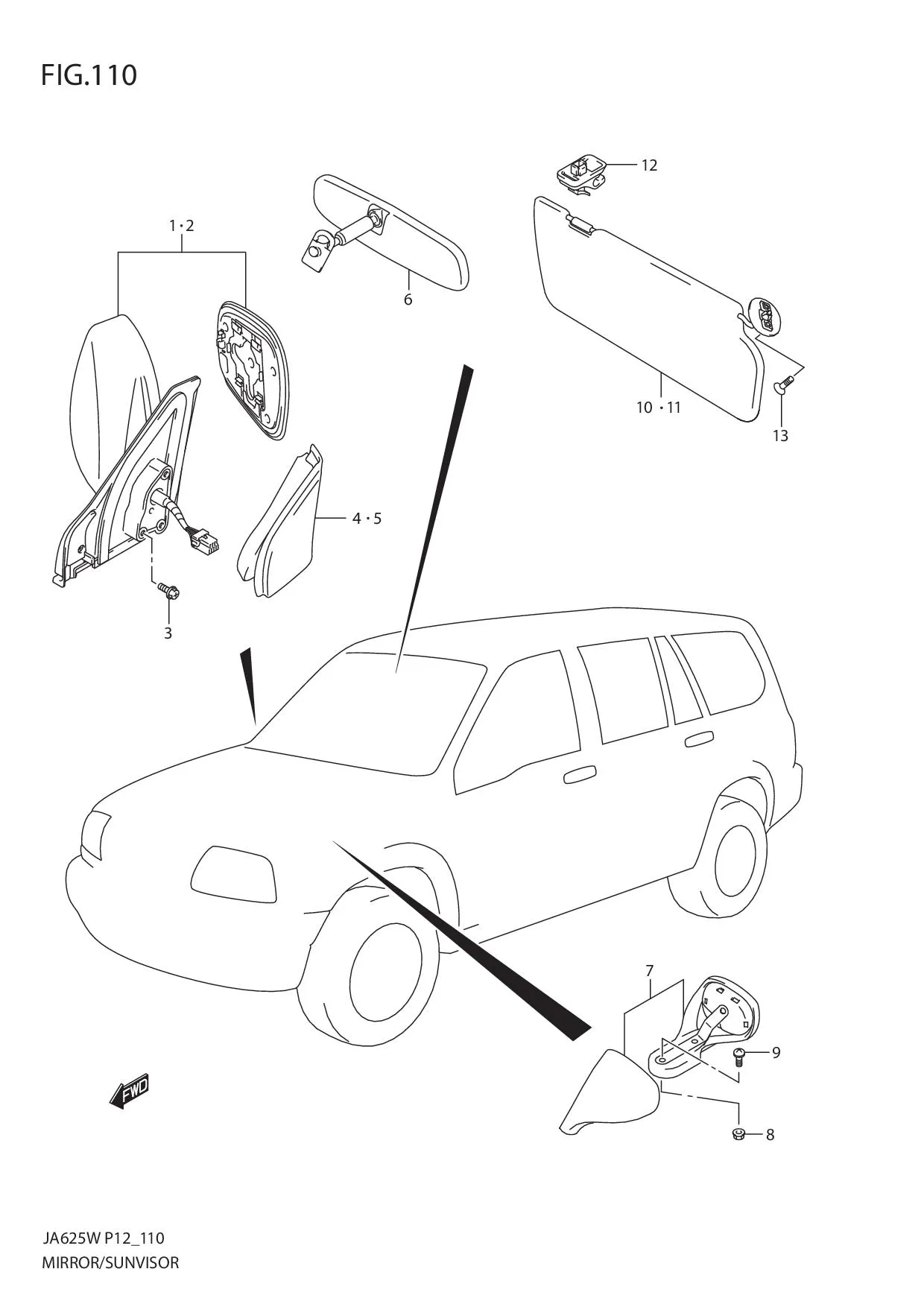

FIG.110 MIRROR/SUNVISOR

FIG.110 MIRROR/SUNVISOR
No No. Part Description Qty Price Per Pcs Remarks
1-5 DISCONTINUE
SUB: 84701-65D80-5PK		 MIRROR ASSY, OUTSIDE RH (PAINT TO MATCH) 1 -
1-4 DISCONTINUE
SUB: 84701-65D80-ZJ3		 MIRROR ASSY, OUTSIDE RH (BLACK) 1 -
2-4 DISCONTINUE
SUB: 84702-65D80-ZJ3		 MIRROR ASSY, OUTSIDE LH (BLACK) 1 -
2-5 DISCONTINUE
SUB: 84702-65D80-5PK		 MIRROR ASSY, OUTSIDE LH (PAINT TO MATCH) 1 -
3 02162-0616A-000
SUB: 02162-06163L000		 SCREW 6 Rp3.000
4 84750-65D00-5PK GARNISH, INR RH (BLACK) 1 Rp220.000
5 84790-65D00-5PK GARNISH, INR LH (BLACK) 1 Rp233.000
6 84703-65DV0-5PK
SUB: 84703-65D01-5PK		 MIRROR ASSY, INSIDE (BLACK) 1 Rp960.000
7-4 84704-65D00-ZJ3 MIRROR ASSY, SIDE UNDER (BLACK) 1 Rp3.080.000
7-6 DISCONTINUE
SUB: 84704-65D00-Z5J		 MIRROR ASSY, SIDE UNDER (GREEN) 1 -
7-5 84704-65D00-ZJ3 MIRROR ASSY, SIDE UNDER (SILVER) 1 Rp3.080.000
8 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000
9 03211-0635A-000
SUB: 03211-06353-000		 SCREW 2 Rp17.000
10 DISCONTINUE
SUB: 84801-65DR0-R8H		 SUNVISOR ASSY, RH (BROWN) 1 -
11 DISCONTINUE
SUB: 84802-65DR0-R8H		 SUNVISOR ASSY, LH (BROWN) 1 -
12 84851-65D00-R8H HOLDER, SUNVISOR (BROWN) 2 Rp58.000
13 03121-0516A-000
SUB: 03121-05163-000		 SCREW 4 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
