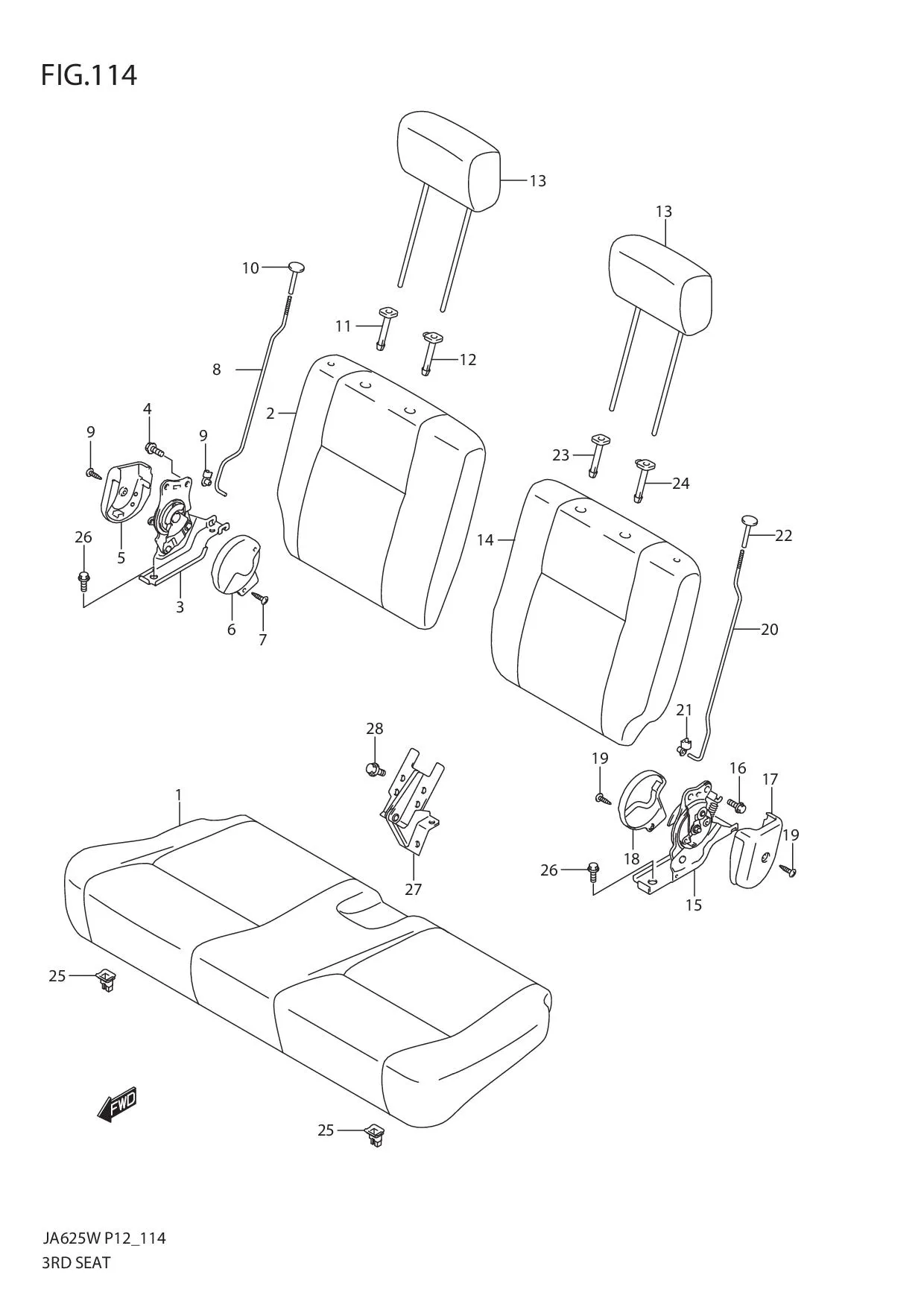

FIG.114 3RD SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 88101B54JA0NKK4	CUSHION, 3RD CUSHION	1	-
2	DISCONTINUE SUB: 88301B54J10NKK4	BACK ASSY, 3RD RH	1	-
3	DISCONTINUE SUB: 88210-52DA0-000	•RECLINING ASSY, 3RD RH	1	-
4	01550-1020A-000 SUB: 01550-10203-000	•BOLT	2	Rp21.000
5	DISCONTINUE SUB: 87221-65DL0-R8H	•COVER, RECLINING OUTSIDE RH (BEIGE)	1	-
6	DISCONTINUE SUB: 88222-52DA0-R8H	•COVER, RECLINING INSIDE RH (BEIGE)	1	-
7	03241-0512A-000 SUB: 03242-05123-000	•SCREW	2	Rp3.500
8	DISCONTINUE SUB: 88215-52DA0-000	•ROD, RECLINING RH	1	-
9	09403-04306-000	•CLAMP	1	Rp24.000
10	87211-74G10-R8H SUB: 87211-74G00-R8H	•KNOB, RECLINING (BEIGE)	1	Rp10.000
11	DISCONTINUE SUB: 85341-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
12	DISCONTINUE SUB: 85840-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
13	DISCONTINUE SUB: 86401B82DN0N000	HEADRESTRAINT ASSY (BEIGE)	2	-
14	DISCONTINUE SUB: 88302B54J10NKK4	BACK ASSY, 3RD LH	1	-
15	DISCONTINUE SUB: 88710-52DA0-000	•RECLINING ASSY, 3RD LH	1	-
16	01550-1020A-000 SUB: 01550-10203-000	•BOLT	2	Rp21.000
17	DISCONTINUE SUB: 87721-65DL0-R8H	•COVER, RECLINING OUTSIDE LH (BEIGE)	1	-
18	DISCONTINUE SUB: 88722-52DA0-R8H	•COVER, RECLINING INSIDE LH (BEIGE)	1	-
19	03241-0512A-000 SUB: 03242-05123-000	•SCREW	2	Rp3.500
20	DISCONTINUE SUB: 88715-52DA0-000	•ROD, RECLINING LH	1	-
21	09403-04306-000	•CLAMP	1	Rp24.000
22	87211-74G10-R8H SUB: 87211-74G00-R8H	•KNOB, RECLINING (BEIGE)	1	Rp10.000
23	DISCONTINUE SUB: 85341-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
24	DISCONTINUE SUB: 85840-81A00-R8H	•GUIDE, HEADRESTRAINT (BEIGE)	1	-
25	87460-76G11-000 SUB: 87460-76G01-000	HOOK, 3RD CUSHION	2	Rp39.000
26	01551-1020A-000 SUB: 01551-10203-000	BOLT	3	Rp18.000
27	DISCONTINUE SUB: 88950-52DA0-000	HINGE, 3RD BACK CENTER	1	-
28	01551-1020A-000 SUB: 01551-10203-000	BOLT	5	Rp18.000
