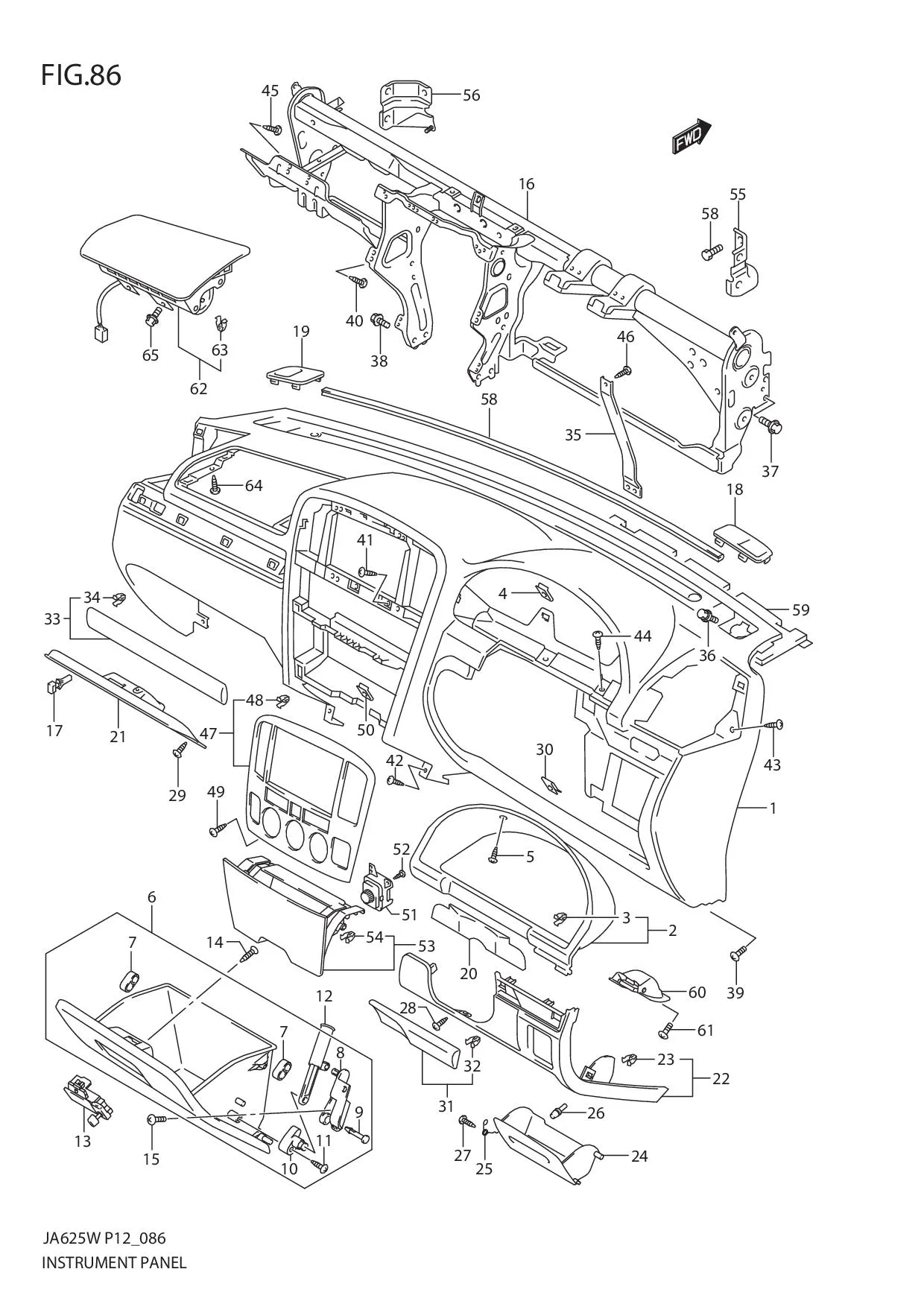

FIG.86 INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 73111-50J00-KL8	PANEL, INSTRUMENT MAIN (BROWN/BEIGE)	1	-
2	DISCONTINUE SUB: 73311-50J00-0CB	PANEL, INSTRUMENT CLUSTER (BLACK)	1	-
3	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
4	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
5	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
6	DISCONTINUE SUB: 73410-50J00-R8H	BOX, GLOVE (BEIGE)	1	-
7	73413M65D00-000	•CUSHION	2	Rp6.500
8	DISCONTINUE SUB: 73421-50J00-000	•HINGE	1	-
9	73423-50G00-000	•PIN	1	Rp30.000
10	73422-57L00-000 SUB: 73422-50J00-000	•ADAPTER, DAMPER	1	Rp53.500
11	03541-0412A-000 SUB: 03541-04123-000	•SCREW	1	Rp3.500
12	73440-50J01-000 SUB: 73440-50J00-000	DAMPER, GLOVE BOX	1	Rp107.000
13	73430-50810-R8H	LOCK, GLOVE BOX (BEIGE)	1	Rp880.000
14	DISCONTINUE SUB: 03521-0416A-000	SCREW	2	-
15	02142-0512A-000 SUB: 02142B05123N000	SCREW	2	Rp3.500
16	DISCONTINUE SUB: 73200-50J00-000	MEMBER, STEERING SUPPORT	1	-
17	DISCONTINUE SUB: 73461-77E00-000	CUSHION, GLOVE BOX LID SIDE	2	-
18	DISCONTINUE SUB: 73831-50J00-R8R	COVER, SPEAKER RH (BROWN)	1	-
19	DISCONTINUE SUB: 73832-50J00-R8R	COVER, SPEAKER LH (BROWN)	1	-
20	DISCONTINUE SUB: 73814-50J00-000	BLIND, STEERING COLUMN HOLE	1	-
21	DISCONTINUE SUB: 73813-65D00-R8H	COVER, GLOVE BOX LID (BEIGE)	1	-
22	DISCONTINUE SUB: 73811-50J00-R8H	COVER, STEERING COLUMN HOLE (BEIGE)	1	-
23	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
24	DISCONTINUE SUB: 73822-65D00-R8H	POCKET, HOLE COVER (BEIGE)	1	-
25	DISCONTINUE SUB: 73823-65D00-000	SPRING, COLUMN HOLE	1	-
26	73413M82C00-000	CUSHION	2	Rp11.500
27	03541-0412A-000 SUB: 03541-04123-000	SCREW	1	Rp3.500
28	03141-0516B-000 SUB: 03142-05123-000	SCREW	3	Rp3.500
29	03141-0516B-000 SUB: 03142-05123-000	SCREW	3	Rp3.500
30	09148-05045-000 SUB: 09148B05045N000	NUT	3	Rp4.000
31	DISCONTINUE SUB: 73861-50J00-R9S	ORNAMENT, DRIVER SIDE (WOOD)	1	-
32	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
33	DISCONTINUE SUB: 73862-50J00-R9S	ORNAMENT, PASSENGER SIDE (WOOD)	1	-
34	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
35	DISCONTINUE SUB: 73817-65D00-000	STAY, I/P DRIVER	1	-
36	DISCONTINUE SUB: 01580-06163-000	BOLT	2	-
37	73291-50G20-000 SUB: 73291-50G01-000	BOLT, MEMBER SIDE	4	Rp42.500
38	01551-0816C-000 SUB: 01551-08163-000	BOLT	4	Rp13.500
39	02142-0512A-000 SUB: 02142B05123N000	SCREW	5	Rp3.500
40	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
41	03141-0516B-000 SUB: 03142-05123-000	SCREW	4	Rp3.500
42	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
43	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
44	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
45	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
46	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
47	73821-50J00-R9S	GARNISH, I/P CTR (WOOD)	1	Rp1.637.000
48	09409-08326-000 SUB: 09409B08326N000	•CLIP	6	Rp8.000
49	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
50	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
51	DISCONTINUE SUB: 74431-54J00-000	SWITCH, RR SW	1	-
52	03541-0512A-000 SUB: 03541-05123L000	SCREW	1	Rp3.500
53	DISCONTINUE SUB: 73840-50J00-R8H	BOX, CTR LOWER (BEIGE)	1	-
54	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
55	DISCONTINUE SUB: 76451-65D10-000	REINF, COWL BOX SIDE RH	1	-
56	DISCONTINUE SUB: 76452-65D10-000	REINF, COWL BOX SIDE LH	1	-
57	09100-08294-000	BOLT (8X13)	6	Rp18.000
58	DISCONTINUE SUB: 73121-50J00-000	SILENCER, I/P TOP	1	-
59	DISCONTINUE SUB: 73121-65D00-000	SILENCER, I/P UPPER	1	-
60	DISCONTINUE SUB: 82150-60E00-R8H	LEVER, HOOD LATCH RELEASE (BEIGE)	1	-
61	02142-0512A-000 SUB: 02142B05123N000	SCREW	1	Rp3.500
62	DISCONTINUE SUB: 73910-50J00-ZS1	MODULE, PASSENGER AIR BAG (BROWN)	1	-
63	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
64	02162-0616A-000 SUB: 02162-06163L000	SCREW	2	Rp3.000
65	01551-0816C-000 SUB: 01551-08163-000	BOLT	2	Rp13.500
