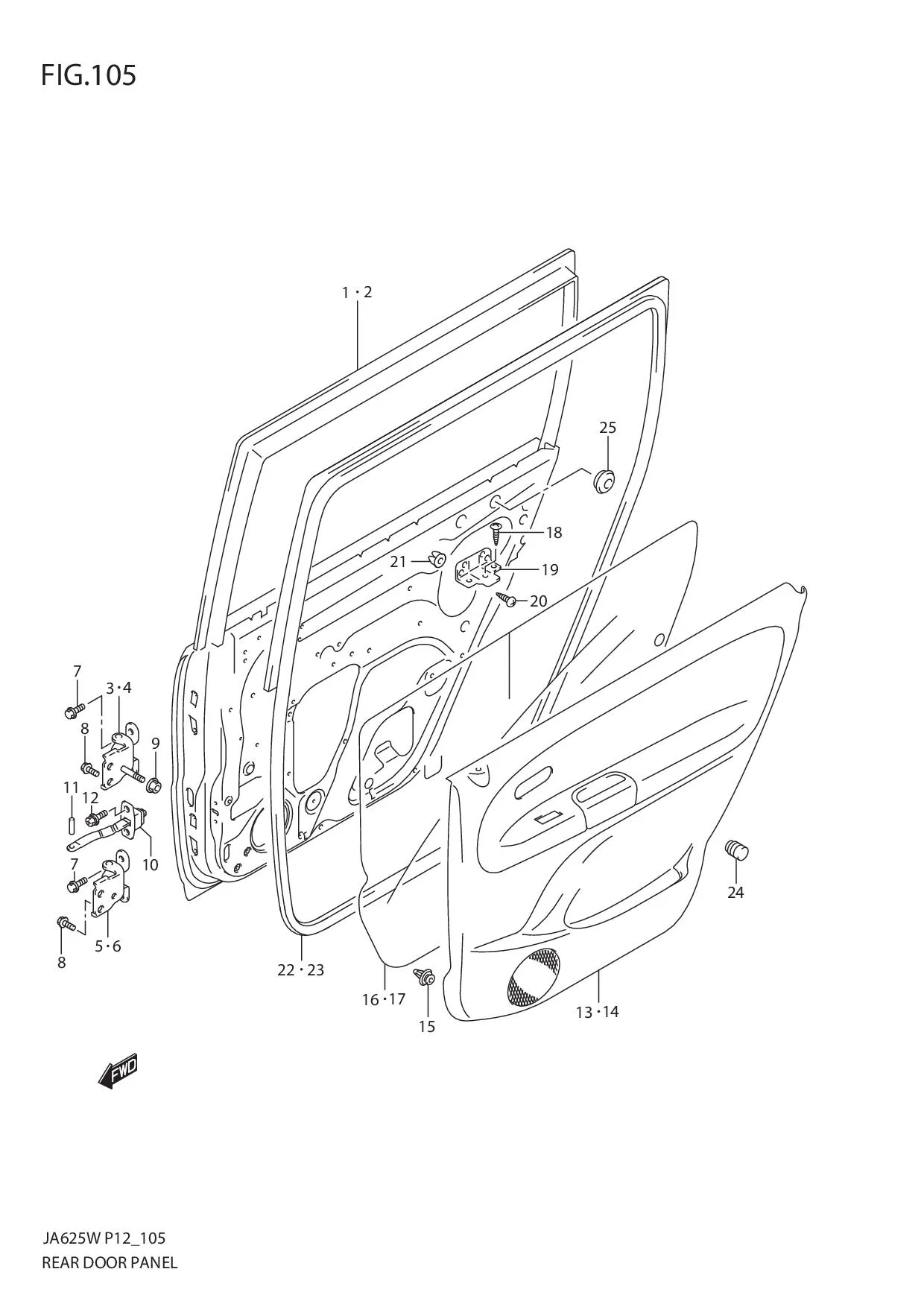

FIG.105 REAR DOOR PANEL

FIG.105 REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 68003-52810-000		 PANEL ASSY, REAR DOOR RH 1 -
2 DISCONTINUE
SUB: 68004-52810-000		 PANEL ASSY, REAR DOOR LH 1 -
3 DISCONTINUE
SUB: 69410-65D00-000		 HINGE, DOOR UPPER RH 1 -
4 DISCONTINUE
SUB: 69420-65D00-000		 HIGNE, DOOR UPPER LH 1 -
5 69430-65D00-000 HINGE, DOOR LOWER RH 1 Rp433.000
6 69440-65D00-000 HINGE, DOOR LOWER LH 1 Rp416.500
7 01551-0820A-000
SUB: 01551-08203-000		 BOLT, DOOR 8 Rp17.500
8 01551-0820A-000
SUB: 01551-08203-000		 BOLT, PILLAR 8 Rp17.500
9 08361-2508A-000
SUB: 08361-25083-000		 NUT, DOOR HINGE 2 Rp16.500
10 81830-65D01-000 STOP, DOOR OPEN 2 Rp418.000
11 81831-70B00-000 PIN, STOP BODY 2 Rp40.500
12 02162-0620A-000
SUB: 02162-0620C-000		 BOLT, STOP 4 Rp5.500
13 DISCONTINUE
SUB: 83730-52DC0-KL2		 TRIM ASSY, RH (BEIGE) 1 -
14 DISCONTINUE
SUB: 83740-52DC0-KL2		 TRIM ASSY, LH (BEIGE) 1 -
15 83714M62B00-000
SUB: 09409M08320-000		 CLIP 14 Rp14.500
16 DISCONTINUE
SUB: 83913-52D00-000		 COVER, DOOR SEALING RH 1 -
17 DISCONTINUE
SUB: 83914-52D00-000		 COVER, DOOR SEALING LH 1 -
18 DISCONTINUE
SUB: 03142-04163-000		 SCREW, CASE 2 -
19 DISCONTINUE
SUB: 84482-65D00-000		 BRACKET, PULL HANDLE 2 -
20 03241-0616C-000
SUB: 03242-06163-000		 SCREW, BRACKET 4 Rp17.000
21 71851M70F00-000
SUB: 09148M06007-000		 NUT, BRACKET 4 Rp4.000
22 84661-52D00-000 WEATHERSTRIP, DR OPENING RH 1 Rp1.690.500
23 84671-52D00-000 WEATHERSTRIP, DR OPENING LH 1 Rp1.690.500
24 82711M70F00-000
SUB: 82711M56B00-000		 STOPPER, DOOR 4 Rp8.500
25 09250M20031-000
SUB: 09250-20015-000		 CAP, HANDLE HOLE 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
