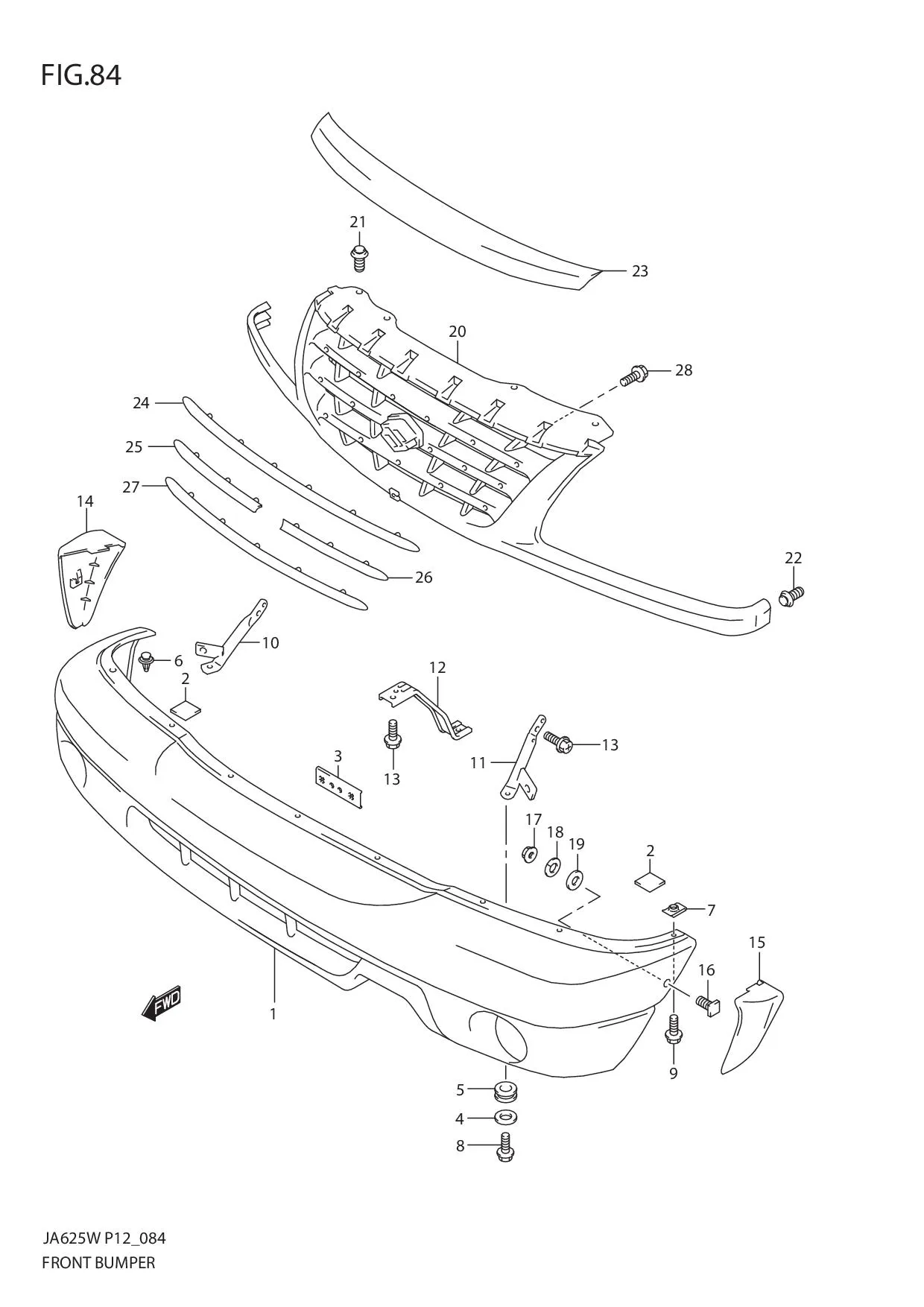

FIG.84 FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-65DF1-799	BUMPER, FRONT (PRIMARY COAT)	1	Rp10.880.500	PAINT TO MATCH
2	DISCONTINUE SUB: 51553-42AA0-000	CUSHION	2	-
3	DISCONTINUE SUB: 71771-56B00-000	RETAINER, FRONT LICENSE PLATE	2	-
4	09169-06062-000	WASHER (6.3X17X1.6)	3	Rp16.500
5	DISCONTINUE SUB: 09320-09502-000	CUSHION	3	-
6	09409-07325-5PK	CLIP (BLACK)	7	Rp18.000
7	DISCONTINUE SUB: 71781-65D00-000	NUT, FRONT BUMPER SIDE	2	-
8	02162-0620A-000 SUB: 02162-0620C-000	SCREW	3	Rp5.500
9	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
10	DISCONTINUE SUB: 71750-65D10-000	STAY, FR BUMPER LOWER SIDE RH	1	-
11	DISCONTINUE SUB: 71760-65D10-000	STAY, FR BUMPER LOWER SIDE LH	1	-
12	DISCONTINUE SUB: 71771-65D10-000	STAY, FR BUMPER LOWER CENTER	1	-
13	02162-0620A-000 SUB: 02162-0620C-000	SCREW	6	Rp5.500
14-1	71721-65DC0-ZA3	GUARD, FR BUMPER RH (WINE)	1	-
14-2	71721-65DC0-ZA4	GUARD, FR BUMPER RH (BEIGE)	1	-
14-3	71721-65DC0-ZA5	GUARD, FR BUMPER RH (WHITE)	1	-
14-4	71721-65DC0-ZJ3	GUARD, FR BUMPER RH (BLACK)	1	Rp773.500
14-5	71721-65DC0-Z2S	GUARD, FR BUMPER RH (SILVER)	1	-
14-6	71721-65DC0-Z2T	GUARD, FR BUMPER RH (GREEN)	1	-
14-7	71721-65DC0-Z2U	GUARD, FR BUMPER RH (BLUE)	1	-
15-1	71731-65DC0-ZA3	GUARD, FR BUMPER LH (WINE)	1	-
15-7	71731-65DC0-Z2U	GUARD, FR BUMPER LH (BLUE)	1	-
15-6	71731-65DC0-Z2T	GUARD, FR BUMPER LH (GREEN)	1	-
15-5	71731-65DC0-Z2S	GUARD, FR BUMPER LH (SILVER)	1	-
15-4	71731-65DC0-ZJ3	GUARD, FR BUMPER LH (BLACK)	1	Rp637.500
15-3	71731-65DC0-ZA5	GUARD, FR BUMPER LH (WHITE)	1	-
15-2	71731-65DC0-ZA4	GUARD, FR BUMPER LH (BEIBE)	1	-
16	71745-52E00-000	BOLT	2	Rp55.500
17	08316-1005A-000 SUB: 08316-10053-000	NUT	2	Rp2.500
18	09160-05045-000 SUB: 09160B05045N000	WASHER (5.5X18X1)	2	Rp4.500
19	DISCONTINUE SUB: 09161-06022-000	WASHER (6.5X16X2.3)	2	-
20	72111-65D20-000	GRILLE, FRONT	1	Rp3.482.500	PAINT TO MATCH
21	09409M07L01-000 SUB: 09409M07332-000	CLIP, UPPER	4	Rp5.000
22	09409-08322-000	CLIP, LOWER	5	Rp17.500
23	72112-65D10-0PG	GARNISH, FR GRILLE UPPER (CHROME)	1	Rp880.000
24	72113-65D10-0PG	GARNISH, FR GRILLE NO.1 (CHROME)	1	Rp818.500
25	72114-65D10-0PG	GARNISH, FR GRILLE NO.2 RH (CHROME)	1	Rp418.500
26	72115-65D10-0PG	GARNISH, FR GRILLE NO.2 LH (CHROME)	1	Rp418.500
27	72116-65D10-0PG	GARNISH, FR GRILLE NO.3 (CHROME)	1	Rp811.500
28	03541-0412A-000 SUB: 03541-04123-000	SCREW	15	Rp3.500
