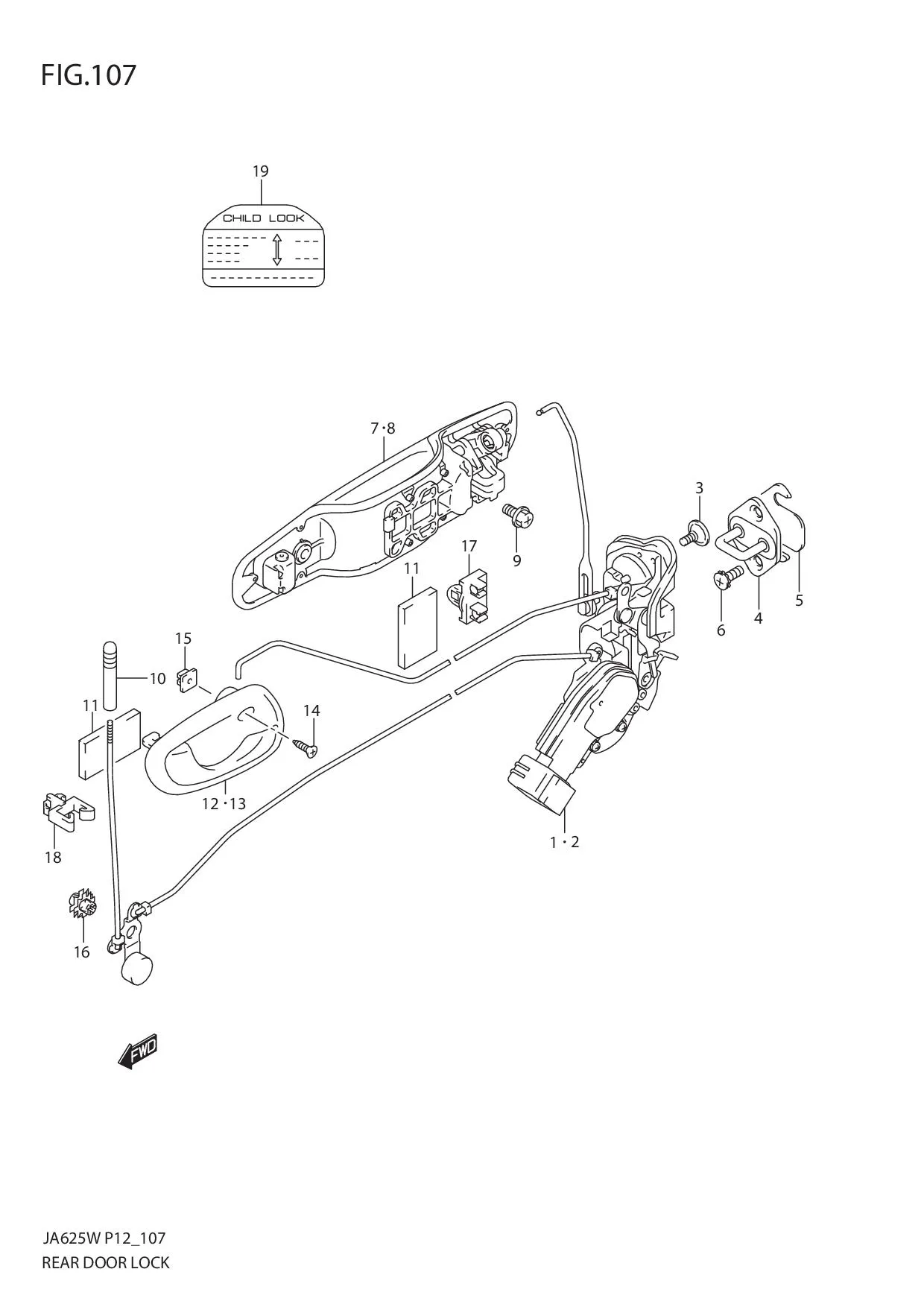

FIG.107 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 82301-52D10-000	LATCH ASSY, DOOR RH	1	-
2	82302-52D11-000 SUB: 82302-52D10-000	LATCH ASSY, DOOR LH	1	Rp5.395.500
3	DISCONTINUE SUB: 82291-65D10-000	SCREW	6	-
4	82610-60A01-000	STRIKER, DOOR LATCH	2	Rp171.000
5	78199M78000-000	SPACER	1	Rp8.000
6	09137-08014-000 SUB: 09137-08011-000	SCREW (8X18)	4	Rp23.000
7-3	82810-65D10-EG6	HANDLE, DOOR OUTER RH (WHITE)	1	-	BODY COLOR:ZA5 (WHITE)
7-7	82810-65D10-N0E	HANDLE, DOOR OUTER RH (BLUE)	1	-	BODY COLOR:Z2U (BLUE)
7-6	82810-65D10-L8E	HANDLE, DOOR OUTER RH (GREEN)	1	-	BODY COLOR:Z2T (GREEN)
7-5	DISCONTINUE SUB: 82810-65D10-L8D	HANDLE, DOOR OUTER RH (SILVER)	1	-	BODY COLOR:Z2S (SILVER)
7-4	82810-65D10-GZ9	HANDLE, DOOR OUTER RH (BLACK)	1	-	BODY COLOR:ZJ3 (BLACK)
7-2	82810-65D10-EG7	HANDLE, DOOR OUTER RH (GEIGE)	1	-	BODY COLOR:ZA4 (BEIGE)
7-1	82810-65D10-EG8	HANDLE, DOOR OUTER RH (WINE)	1	-	BODY COLOR:ZA3 (WINE)
8-3	82820-65D10-EG6	HANDLE, DOOR OUTER LH (WHITE)	1	-	BODY COLOR:ZA5 (WHITE)
8-7	82820-65D10-N0E	HANDLE, DOOR OUTER LH (BLUE)	1	-	BODY COLOR:Z2U (BLUE)
8-6	82820-65D10-L8E	HANDLE, DOOR OUTER LH (GREEN)	1	-	BODY COLOR:Z2T (GREEN)
8-5	DISCONTINUE SUB: 82820-65D10-L8D	HANDLE, DOOR OUTER LH (SILVER)	1	-	BODY COLOR:Z2S (SILVER)
8-4	DISCONTINUE SUB: 82820-65D10-GZ9	HANDLE, DOOR OUTER LH (BLACK)	1	-	BODY COLOR:ZJ3 (BLACK)
8-2	82820-65D10-EG7	HANDLE, DOOR OUTER LH (BEIGE)	1	-	BODY COLOR:ZA4 (BEIGE)
8-1	82820-65D10-EG8	HANDLE, DOOR OUTER LH (WINE)	1	-	BODY COLOR:ZA3 (WINE)
9	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000
10	82982-65D00-R8H	KNOB, DOOR INSIDE LOCK (GRAY)	2	Rp52.000
11	77591M75000-000	PAD	4	Rp7.000
12	83110-76G11-KM7 SUB: 83110-76G10-KM7	HANDLE, DOOR INSIDE RH	1	Rp490.000
13	83130-76G11-KM7 SUB: 83130-76G10-KM7	HANDLE, DOOR INSIDE LH	1	Rp490.000
14	03121-0516A-000 SUB: 03121-05163-000	SCREW	2	Rp11.500
15	83119-60B00-000	NUT, DOOR INSIDE HANDLE	2	Rp27.000
16	DISCONTINUE SUB: 83261-56B00-000	PIN, DOOR INSIDE LOCK ROD	2	-
17	83271M50E00-000	CLIP, DOOR INSIDE LOCK ROD	2	Rp6.500
18	DISCONTINUE SUB: 09403-07324-000	CLIP	2	-
19	DISCONTINUE SUB: 82491-56B00-000	PLATE, CHILD LOCK CAUTION DOOR	2	-
