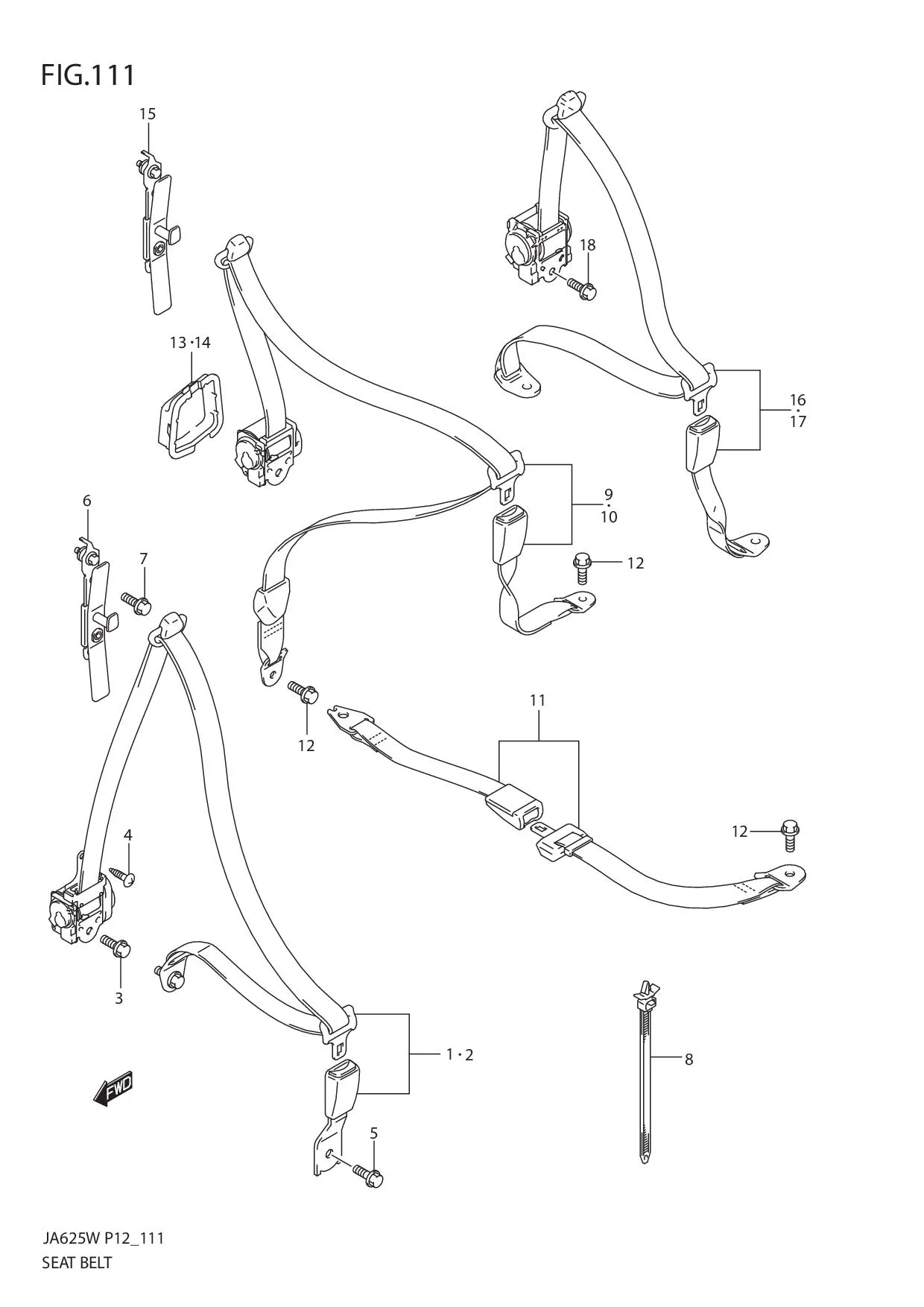

FIG.111 SEAT BELT

FIG.111 SEAT BELT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84901-52DN0-R8H		 BELT ASSY, FRONT RH (BROWN) 1 -
2 DISCONTINUE
SUB: 84902-52DM0-R8H		 BELT ASSY, FRONT LH (BROWN) 1 -
3 09103-11001-000 BOLT 2 Rp25.000
4 DISCONTINUE
SUB: 03141-06103-000		 SCREW 2 -
5 09117M11002-000
SUB: 09117-11001-000		 BOLT, BUCKLE 2 Rp19.000
6 DISCONTINUE
SUB: 84990-65DB0-R8H		 ADJUSTER, BELT SHOULDER (BEIGE 2 -
7 09103-11001-000 BOLT 4 Rp25.000
8 DISCONTINUE
SUB: 09407-11402-000		 BAND, HARNESS CLAMP 1 -
9 DISCONTINUE
SUB: 84904-52DL0-R8H		 BELT ASSY, REAR RH (BEIGE) 1 -
10 DISCONTINUE
SUB: 84905-52DL0-R8H		 BELT ASSY, REAR LH (BEIGE) 1 -
11 DISCONTINUE
SUB: 84906-52DL0-JY4		 BELT ASSY, REAR CENTER (GRAY) 1 -
12 09103-11001-000 BOLT 5 Rp25.000
13 DISCONTINUE
SUB: 84967-52DA0-000		 COVER, 2ND ELR HOLE RH 1 -
14 DISCONTINUE
SUB: 84977-52DA0-000		 COVER, 2ND ELR HOLE LH 1 -
15 DISCONTINUE
SUB: 84990-65DB0-R8H		 ADJUSTER, 2ND SHOULDER (BEIGE) 2 -
16 DISCONTINUE
SUB: 84904-52DQ0-R8H		 BELT ASSY, 3RD RH (BEIGE) 1 -
17 DISCONTINUE
SUB: 84905-52DQ0-R8H		 BELT ASSY, 3RD LH (BEIGE) 1 -
18 09103-11001-000 BOLT 6 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
