GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 CHASSIS FRAME FIG.77 BODY MOUNTING FIG.78 FRONT HOOD PANEL FIG.79 FRONT FENDER FIG.80 FRONT BODY PANEL FIG.81 FLOOR PANEL FIG.82 SIDE BODY PANEL FIG.83 ROOF PANEL FIG.84 FRONT BUMPER FIG.85 REAR BUMPER FIG.86 INSTRUMENT PANEL FIG.87 VENTILATOR FIG.88 REAR AIR CON LOUVER FIG.89 HEATER FIG.90 HEATER BLOWER FIG.91 CONSOLE BOX FIG.92 FLOOR CARPET FIG.93 INTERIOR TRIM FIG.94 CAP/OVER FIG.95 FUEL LID OPENER FIG.96 ROOF LINING FIG.97 EMBLEM FIG.98 GARNISH FIG.99 SPLASH GUARD FIG.100 TIRE CARRIER FIG.101 WINDOW GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR PANEL FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 2ND SEAT FIG.114 3RD SEAT FIG.115 FUEL TANK FIG.116 JACK/TOOL FIG.117 FRONT AIR CONDITIONER FIG.118 REAR AIR CONDITIONER FIG.119 AIR CONDITIONER HARNESS

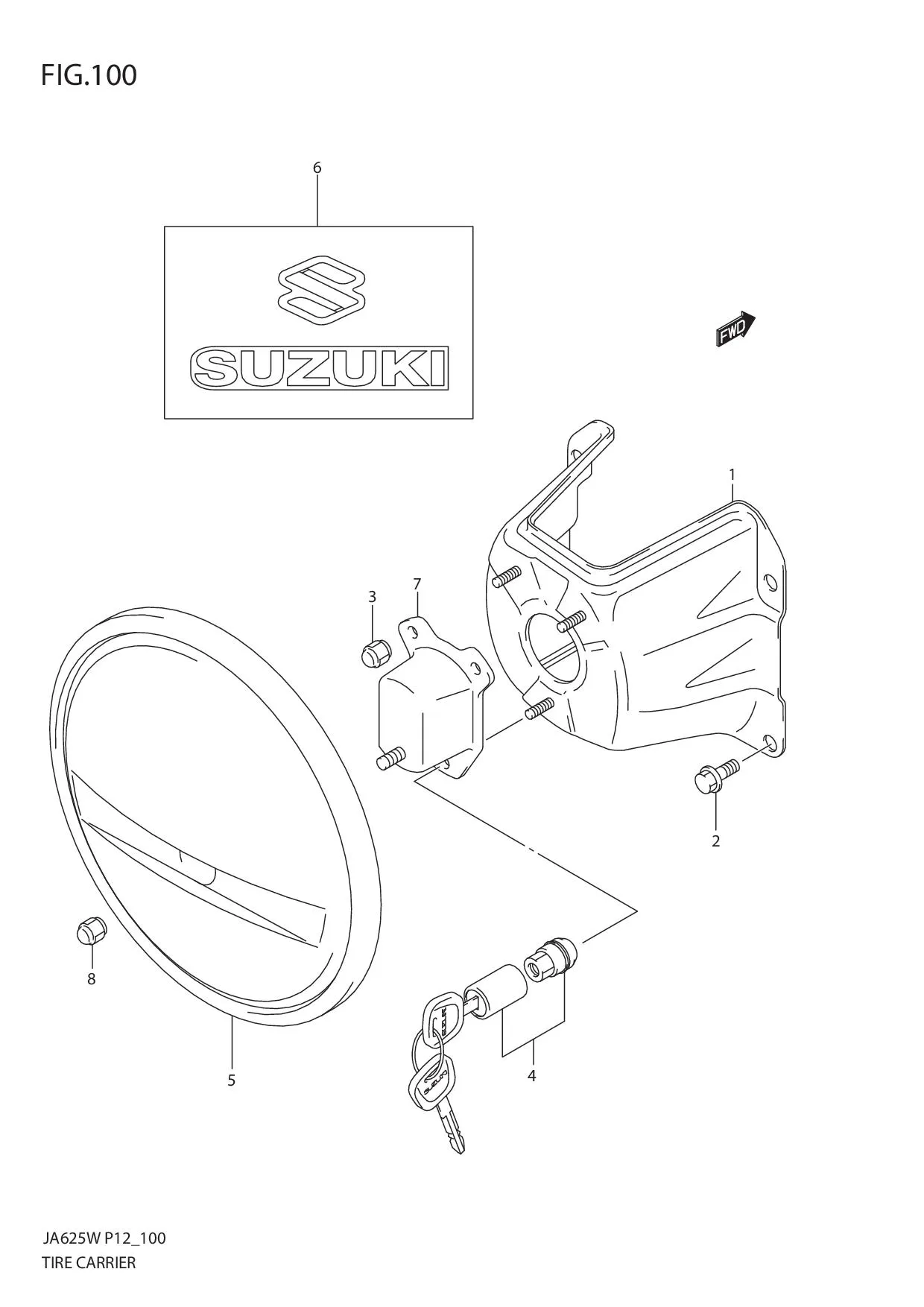

FIG.100 TIRE CARRIER

FIG.100 TIRE CARRIER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	83961-65D00-000	CARRIER, SPARE TIRE	1	Rp1.122.000
2	01550-1025A-000 SUB: 01550-10253-000	BOLT	4	Rp3.500
3	09159-12024-000	NUT	2	Rp40.500
4	83900-65820-000	KEY ASSY, SPARE TIRE NUT LOCK	1	Rp1.630.000
5-1	DISCONTINUE SUB: 72820B65D80NZA4	COVER, SPARE TIRE WHEEL (BEIGE)	1	-
5-2	72820-65D80-27S	COVER, SPARE TIRE WHEEL (SILVER)	1	Rp2.885.500
6	DISCONTINUE SUB: 72830-65D00-N92	DECAL, SPARE TIRE COVER	1	-
7	72831-65D10-000	BRACKET, SPARE TIRE COVER	1	Rp304.000
8	09159-12024-000	NUT, SPARE TIRE COVER	1	Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
