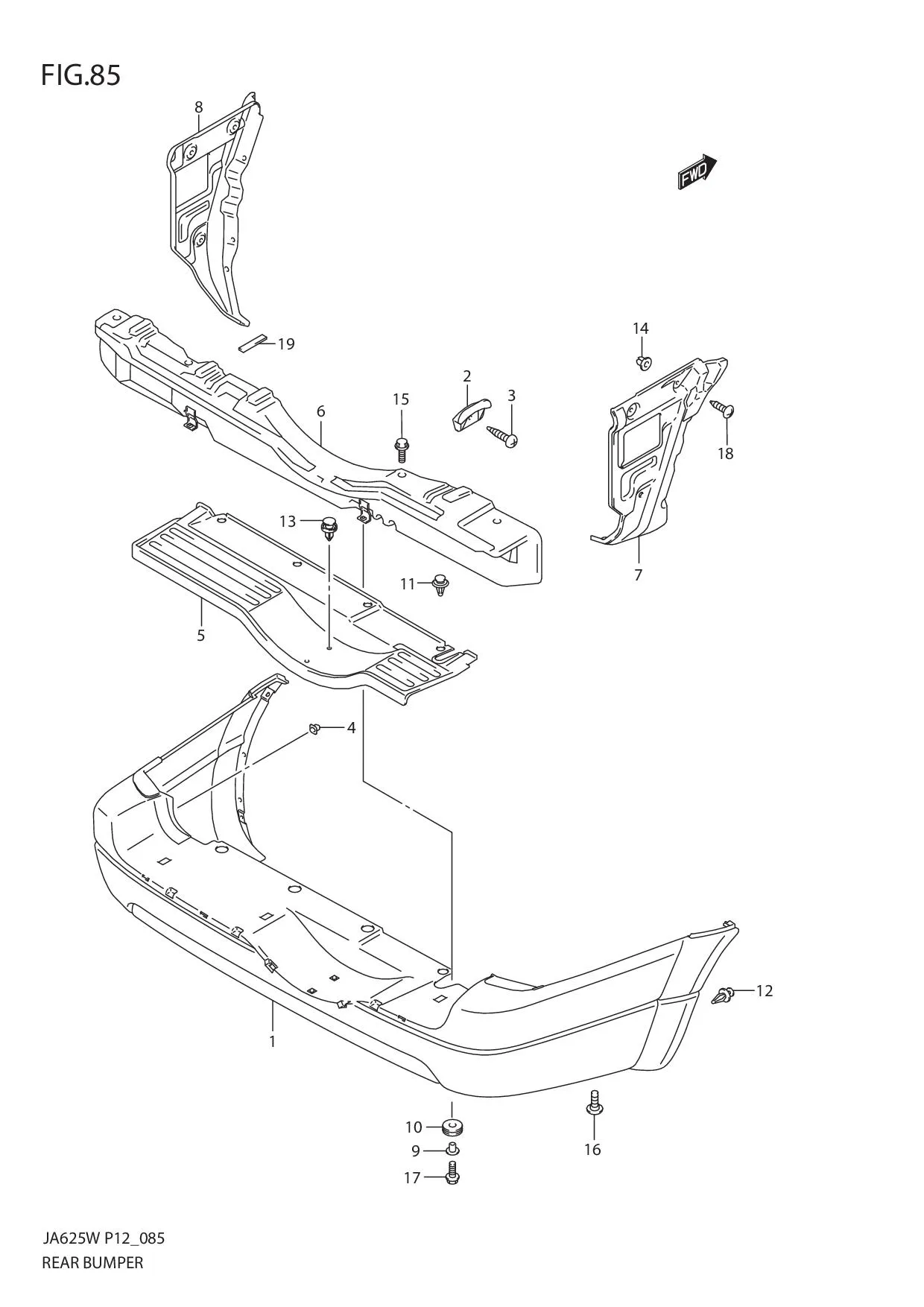

FIG.85 REAR BUMPER

FIG.85 REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 71811-52D00-ZA4 BUMPER, REAR (BEIGE) 1 -
1-3 71811-52D00-ZA5 BUMPER, REAR (WHITE) 1 -
1-4 DISCONTINUE
SUB: 71811-52D00-ZJ3		 BUMPER, REAR (BLACK) 1 -
1-5 71811-52D00-Z2S BUMPER, REAR (SILVER) 1 -
1-6 71811-52D00-Z2T BUMPER, REAR (GREEN) 1 -
1-7 71811-52D00-Z2U BUMPER, REAR (BLUE) 1 -
1-1 71811-52D00-ZA3 BUMPER, REAR (WINE) 1 -
2 71851-60G00-000 HOLDER, RR BUMPER SIDE 2 Rp60.000
3 03541-0512A-000
SUB: 03541-05123L000		 SCREW 2 Rp3.500
4 09410-00076-000 CLIP, LH 1 Rp16.000
5 71812-65D01-5PK GARNISH, RR BUMPER (BLACK) 1 Rp1.458.500
6 DISCONTINUE
SUB: 71820-65D31-000		 MEMBER, REAR BUMPER 1 -
7 DISCONTINUE
SUB: 71830-52D00-000		 BRACKET, RR BUMPER SIDE RH 1 -
8 DISCONTINUE
SUB: 71840-52D00-000		 BRACKET, RR BUMPER SIDE LH 1 -
9 09169-06062-000 COLLAR 2 Rp16.500
10 DISCONTINUE
SUB: 09320-09502-000		 CUSHION 2 -
11 09409-07325-5PK CLIP (BLACK) 4 Rp18.000
12 09409M07L01-000
SUB: 09409M07332-000		 CLIP 4 Rp5.000
13 09409-08327-000 CLIP 2 Rp15.000
14 71851M70F00-000
SUB: 09148M06007-000		 NUT 6 Rp4.000
15 01551-0816C-000
SUB: 01551-08163-000		 BOLT 4 Rp13.500
16 09122-66007-000
SUB: 09122-66004-000		 SCREW (6X14) 2 Rp19.500
17 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 2 Rp5.500
18 03241-0616C-000
SUB: 03242-06163-000		 SCREW 6 Rp17.000
19 DISCONTINUE
SUB: 71881-65D01-000		 PAD, REAR BUMPER SIDE 4 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
