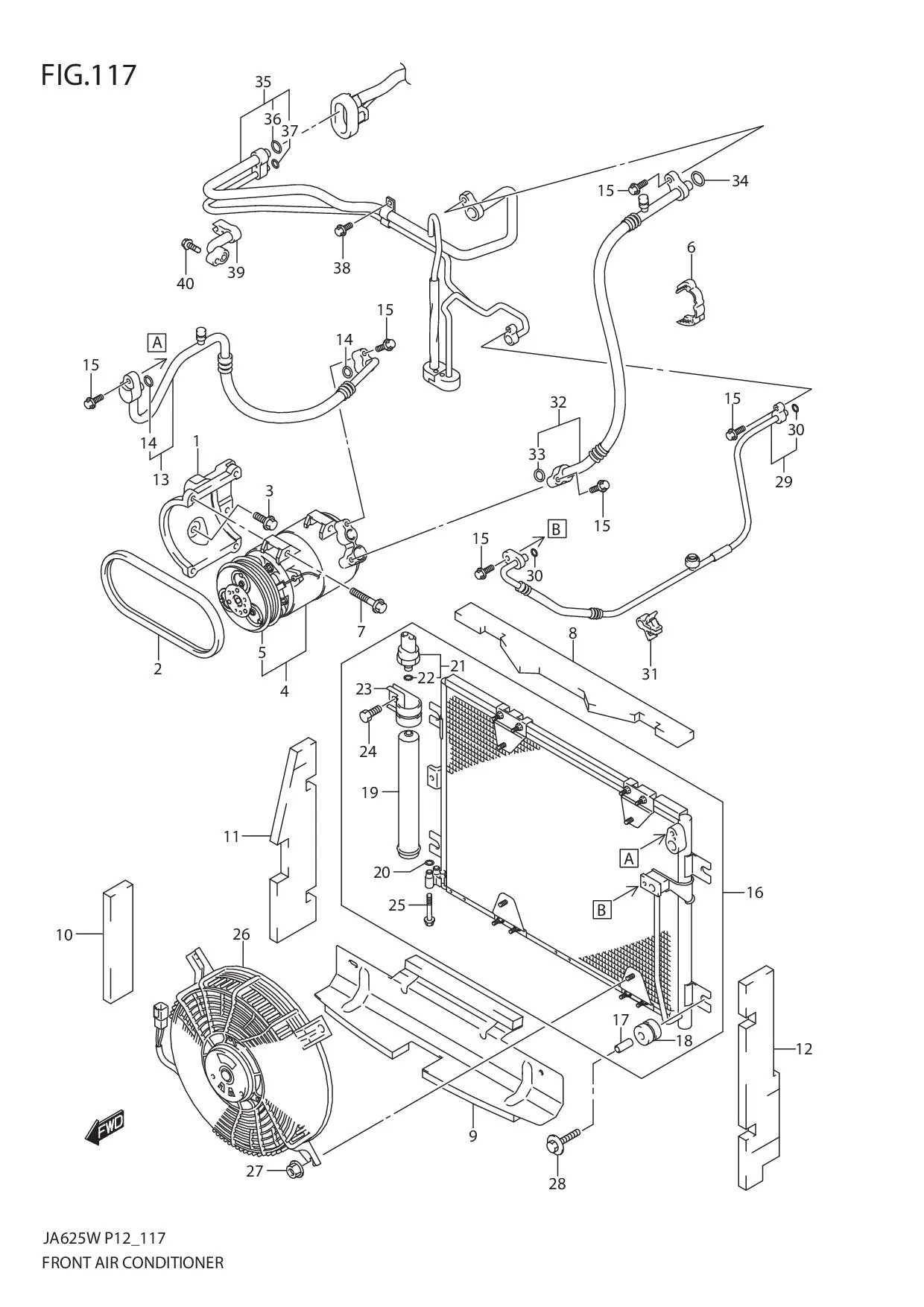

FIG.117 FRONT AIR CONDITIONER

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 95111-54J00-000	BRACKET, COMPRESSOR	1	-
2	95141-65D00-000 SUB: 95141B65D00N000	BELT, COMPRESSOR	1	Rp104.000
3	01550-1030B-000 SUB: 01550-10303-000	BOLT	4	Rp25.500
4	DISCONTINUE SUB: 95200B54JA0N000	COMPRESSOR ASSY	1	-
5	DISCONTINUE SUB: 95210B54JA0N000	•CLUTCH, MAGNET	1	-
6	DISCONTINUE SUB: 09408-00184-000	CLAMP	1	-
7	01550-0855B-000 SUB: 01550-08553-000	BOLT	4	Rp24.000
8	DISCONTINUE SUB: 95823-66D00-000	INSULATOR, UPPER	1	-
9	DISCONTINUE SUB: 95824-66D02-000	INSULATOR, UPPER	1	-
10	DISCONTINUE SUB: 95825-66D00-000	INSULATOR, GRILLE	1	-
11	DISCONTINUE SUB: 95826-66D01-000	INSULATOR, SIDE RH	1	-
12	DISCONTINUE SUB: 95827-66D01-000	INSULATOR, SIDE LH	1	-
13	DISCONTINUE SUB: 95720B54J00N000	HOSE, DISCHARGE	1	-
14	DISCONTINUE SUB: 95895B54J00N000	•O RING	2	-
15	01550-0620B-000 SUB: 01550-06203L000	BOLT	6	Rp3.500
16	DISCONTINUE SUB: 95310B54J00N000	CONDENSER	1	-
17	DISCONTINUE SUB: 95851B54J00N000	•ISOLATOR	1	-
18	DISCONTINUE SUB: 95852B54J00N000	•BUSH	1	-
19	DISCONTINUE SUB: 95330B54J00N000	•RECEIVER, DRYER	1	-
20	DISCONTINUE SUB: 95891B54J00N000	•O RING	2	-
21	DISCONTINUE SUB: 95526B54J00N000	•SWITCH, PRESSURE	1	-
22	DISCONTINUE SUB: 95894B54J00N000	••O RING	1	-
23	DISCONTINUE SUB: 95350B54J00N000	•BRACKET	1	-
24	DISCONTINUE SUB: 01580-06123-000	•BOLT	1	-
25	01550-0640A-000 SUB: 01550-06403-000	•BOLT	1	Rp5.500
26	95560-54J02-000 SUB: 95560-54J01-000	FAN ASSY, CONDENSER	1	Rp6.746.500
27	08316-1006A-000 SUB: 08316-10063L000	NUT	4	Rp2.000
28	09116-06171-000 SUB: 09116-06129-000	BOLT	4	Rp20.500
29	DISCONTINUE SUB: 95731B54J00N000	PIPE, LIQUID NO.1	1	-
30	DISCONTINUE SUB: 95891B54J00N000	•O RING	2	-
31	DISCONTINUE SUB: 36991-60B00-000	•CLIP	1	-
32	DISCONTINUE SUB: 95710B54J00N000	HOSE, SUCTION	1	-
33	DISCONTINUE SUB: 95896B54J10N000	•O RING	1	-
34	DISCONTINUE SUB: 95896B54J00N000	•O RING	1	-
35	DISCONTINUE SUB: 95732B54J00N000	PIPE, LIQUID	1	-
36	DISCONTINUE SUB: 95896B54J00N000	•O RING	1	-
37	DISCONTINUE SUB: 95891B54J00N000	•O RING	1	-
38	02162-0612B-000 SUB: 02162-06123-000	SCREW	1	Rp16.000
39	95741-54J00-000	PIPE, SUCTION	1	-
40	01550-0620B-000 SUB: 01550-06203L000	BOLT	7	Rp3.500
